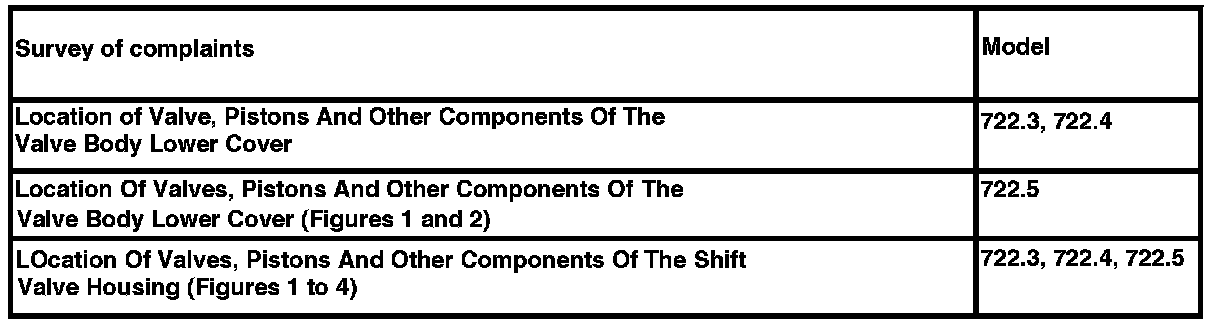

Survey of Subjects

Location Of Components:

Lower Cover:

13 Lower cover (C)
16 Retaining plate
17 Shift valve Secondary pump (66)
18 Spring
20 Bushing
21 Retaining dip
22 Shut-off plunger reverse gear (65)
23 Spring
24 Plug
25 Check valve (67)
26 Pin
27 Strainer

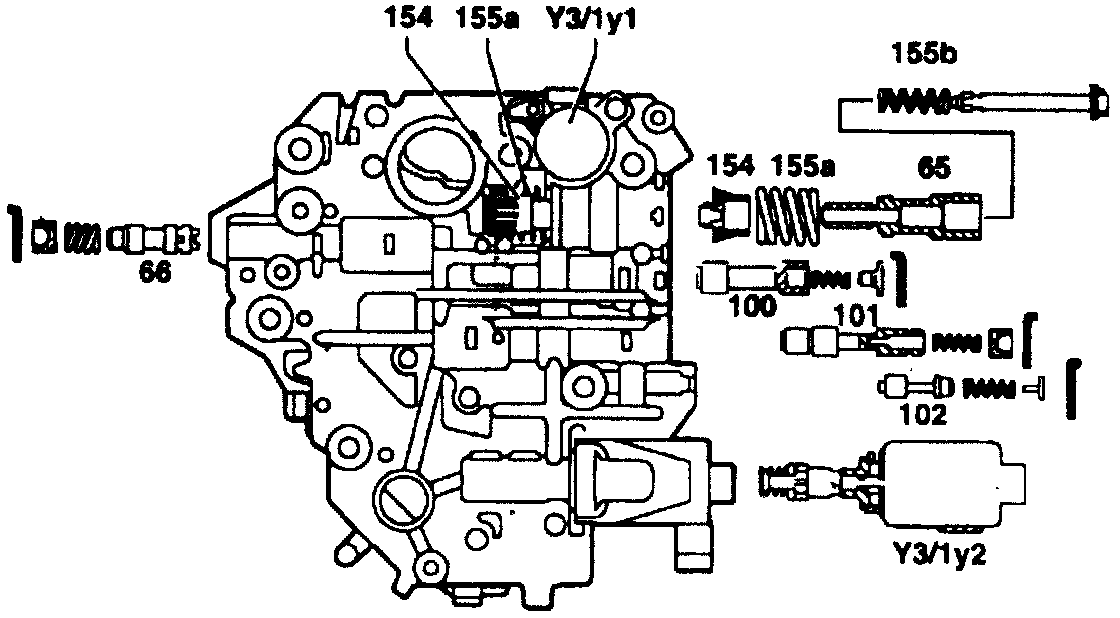

Lower Valve Body Cover Fig. 1:

65 Locking plunger, reverse downshift lockout
66 Secondary pump shift valve (not installed of 07/91)
100 Shift valve overlap, overdrive clutch KS overdrive brake BS
101 Shift pressure regulating valve, overdrive brake BS
102 Filler piece (piston with spring)
154 Plastic sleeve
155a Return spring (large)
155b Return spring (small)
Y3/1y2 Kickdown solenoid valve
Y3/1y2 5th gear regulating valve

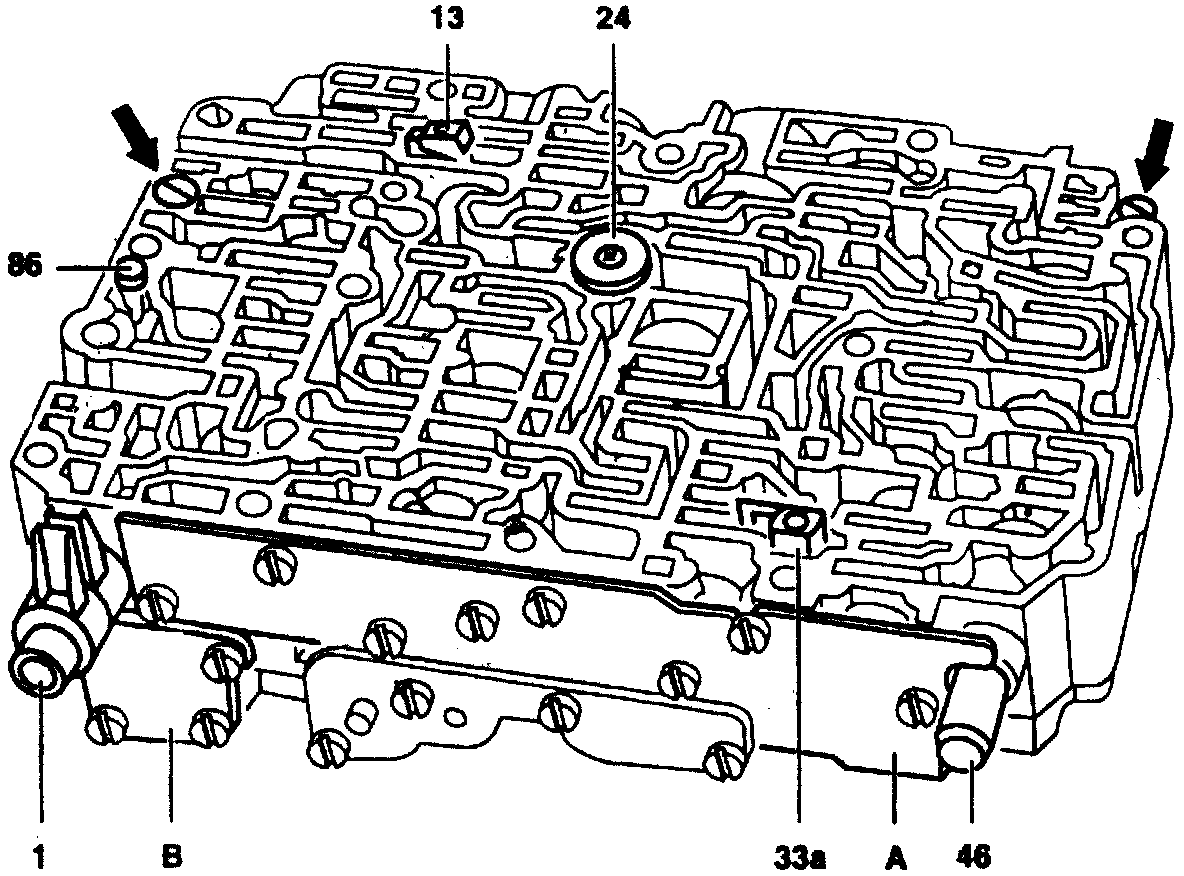

Lower Valve Body Cover Fig. 2:

67 Secondary pump non-return valve (not installed as of 07/91)
88 Screen filter
94 Measuring valve
103 Drain valve, overdrive clutch KS
105 Drain valve, overdrive clutch BS






A Shift valve housing
B Accumulator housing Selector valve
13 Plate-type check valve with bore
24 Primary pump check valve (not installed as of omission of secondary pump, 1992)
33a Shift valve B2 particle screen filter
48 Control pressure regulating valve plunger

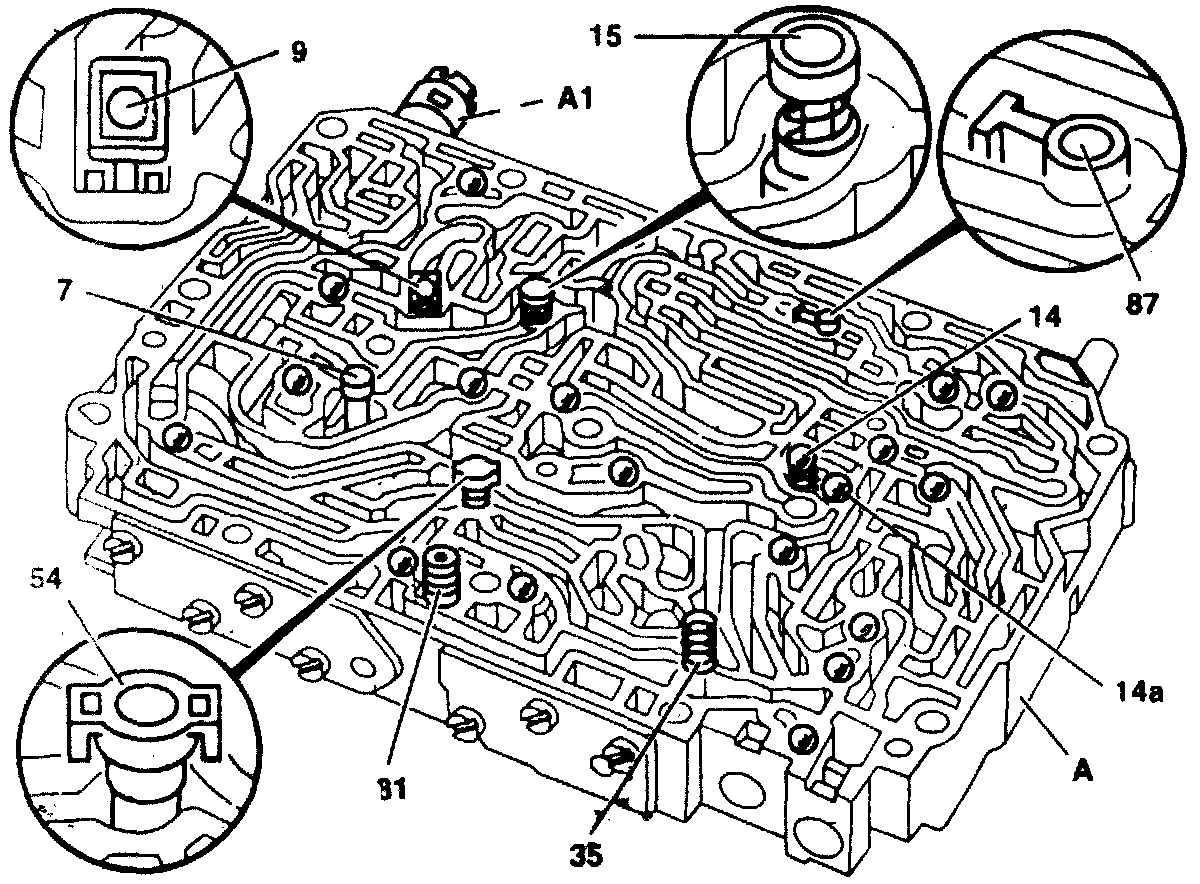

A Shift valve housing
A1 Selector valve (1)
7 Shut-off valve K1
9 Plate-type check valve without bore
14 Valve body balls (17 or 18 each)
14a Valve body ball for "R", Accumulator switching on (53) (not installed as of trans. no 3 747000)
15 Pressure valve
35 Shift pin, lubricating pressure
54 Check valve
81 Screen filter
87 Throttle valve K2

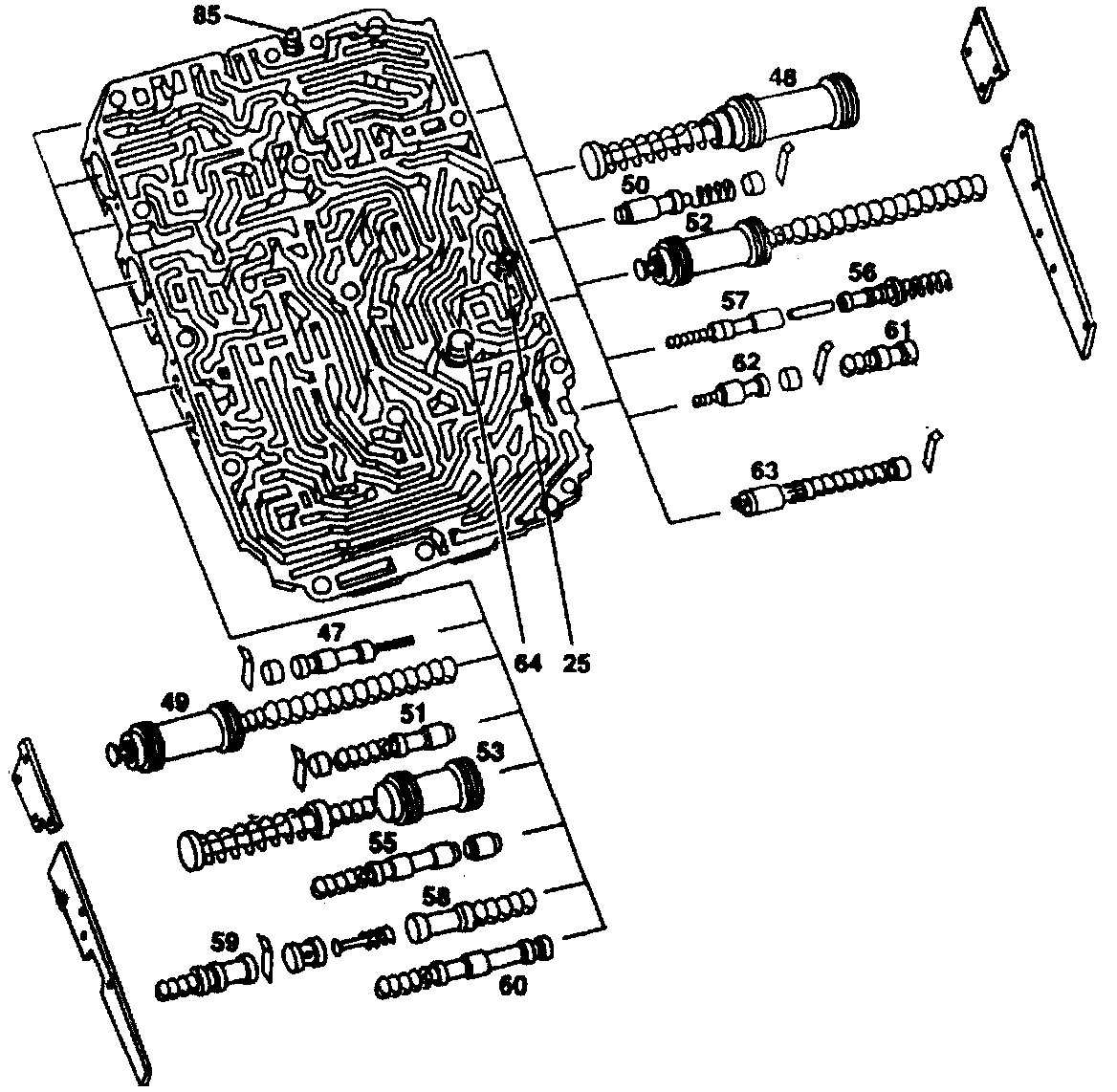

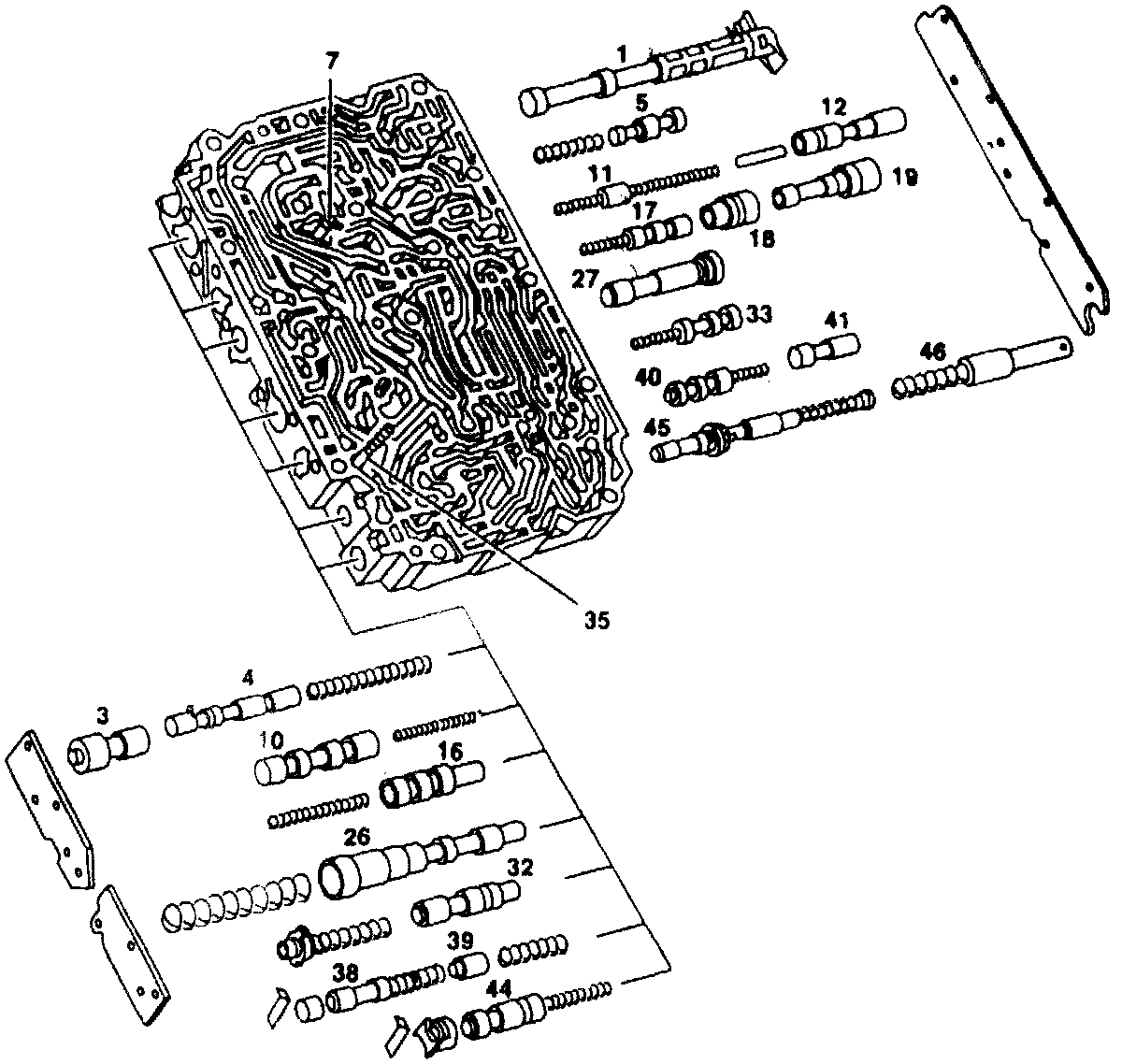

1 Selector valve
3 Plunger, command valve 2-3
4 Command valve 2-3
5 Control valve, convertor adaption
7 Shut-off valve K1
10 Shift valve B1
11 Plunger, command valve 3-4
12 Command valve 3-2
16 Control valve, basic pressure
17 Command valve 1-2
18 Sleeve, command valve 1-2
19 Plunger, command valve 1-2
26 Control valve, working pressure
27 Plug, shift valve bridging clutch
32 Control valve, full-throttle
33 Shift valve B2
35 Shift pin, lubricating pressure
38 Control valve B1
39 Plunger, control valve B1
40 Shift valve, kickdown
41 Shift valve, governor pressure
44 Booster valve, governor pressure
45 Control valve, control pressure
46 Plunger, control valve, control pressure





25 Pressure relief valve, modulating pressure
47 Control valve, shift pressure
48 Accumulator K1
49 Accumulator K2
50 Control valve, accumulator K1
51 Control valve, accumulator K2
52 Accumulator B1
53 Accumulator switching on
55 Shut-off valve RV2
56 Shift valve, deceleration shift
57 Control valve, accumulator B1
58 Control valve, accumulator switching on (disabled as of trans. no. 3 747000)
59 Shift valve K2
60 Detent valve B2
61 Shut-of valve, brake circuit
82 Shut-off valve, RV1
63 Accumulator, kickdown
64 Lubricating pressure valve
85 Pressure limiting valve
