Engine Systems (MAS)

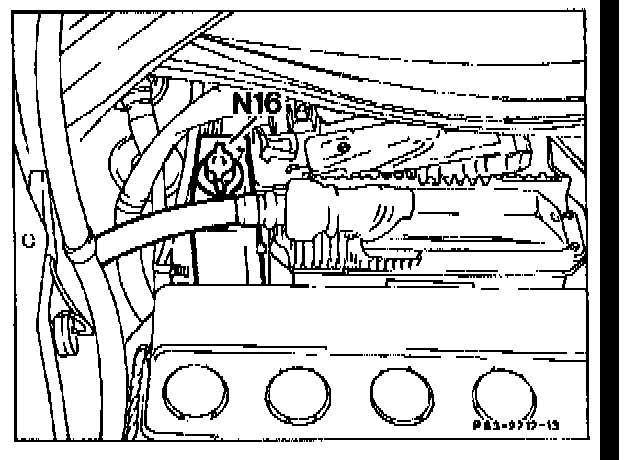

Component Location






Component ID N16
Component Name Engine systems control unit (MAS)
Location Right side of component compartment, behind battery

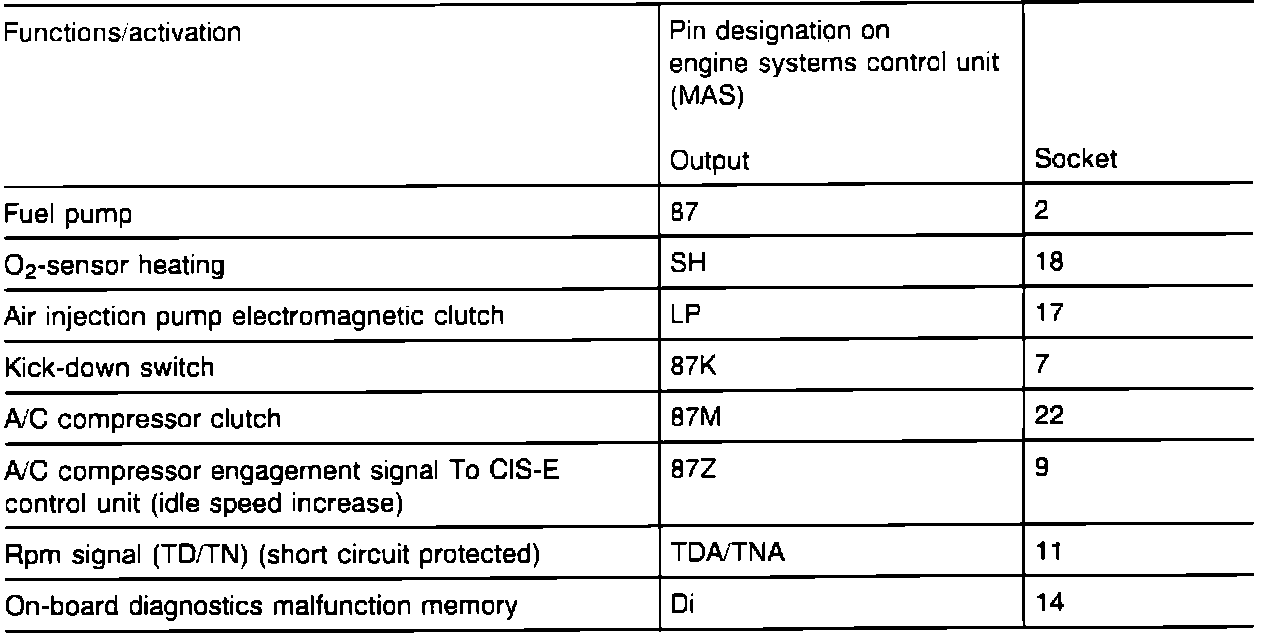

Engine Systems (MAS) Control Unit Terminal Designations:

TERMINAL DESIGNATION

Engine Systems (MAS) Control Unit Terminal Designations:

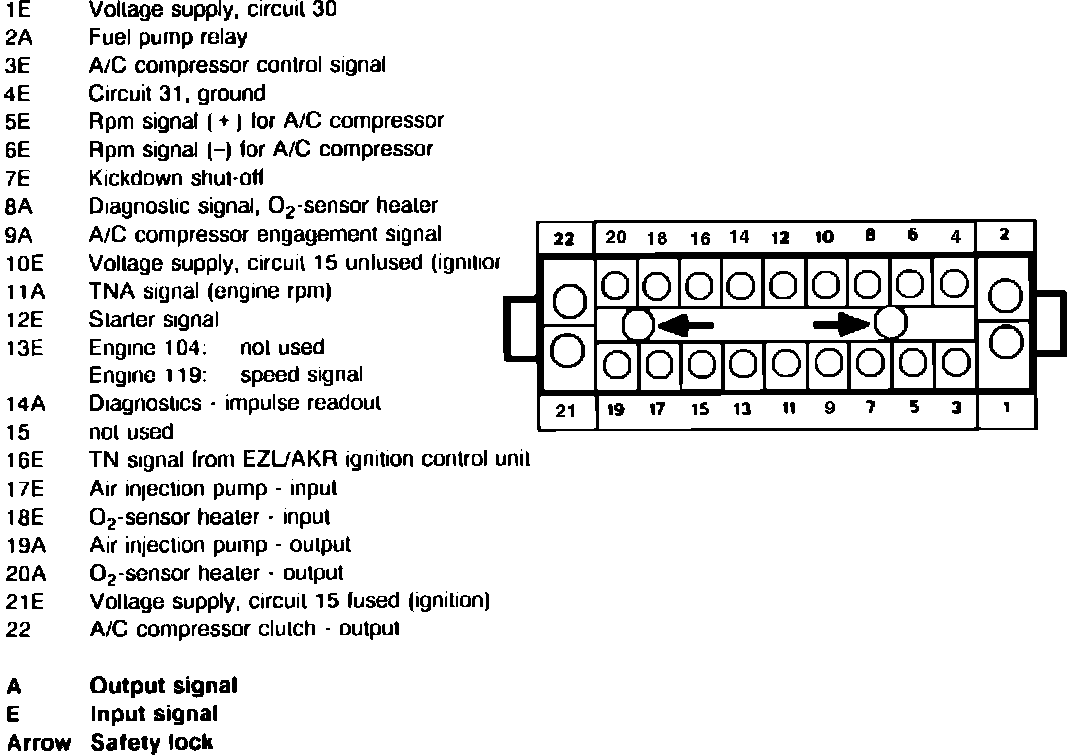

CONNECTOR VIEW
