Electronic Throttle Control Module
>>
Description and Operation
>>
Block Diagram
>>
With Acceleration Slip Regulation (ASR)
With Acceleration Slip Regulation (ASR)

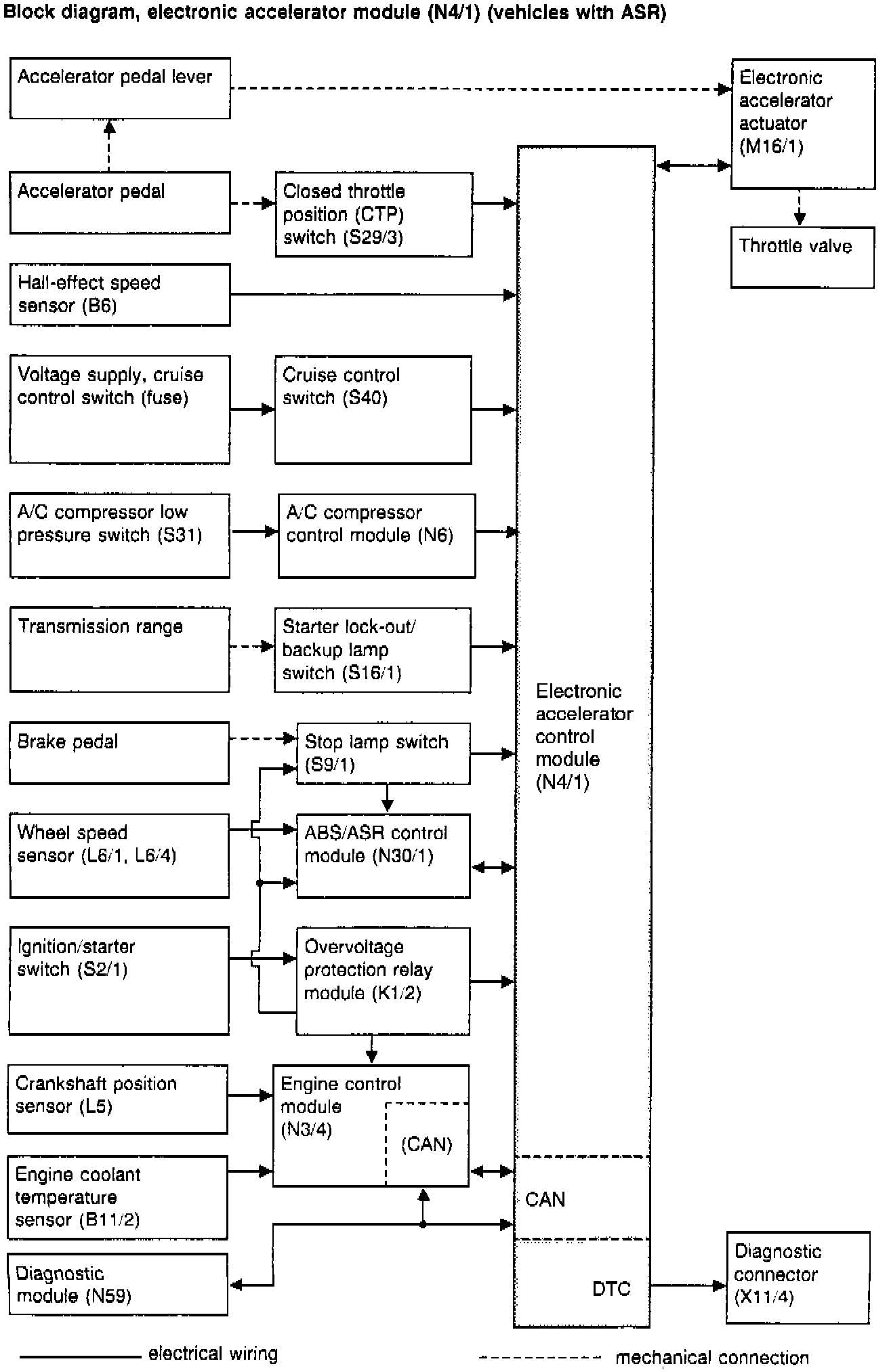

Block Diagram:
