�ůQWindshield/Headlamp Cleaning System:
Wiring Diagram

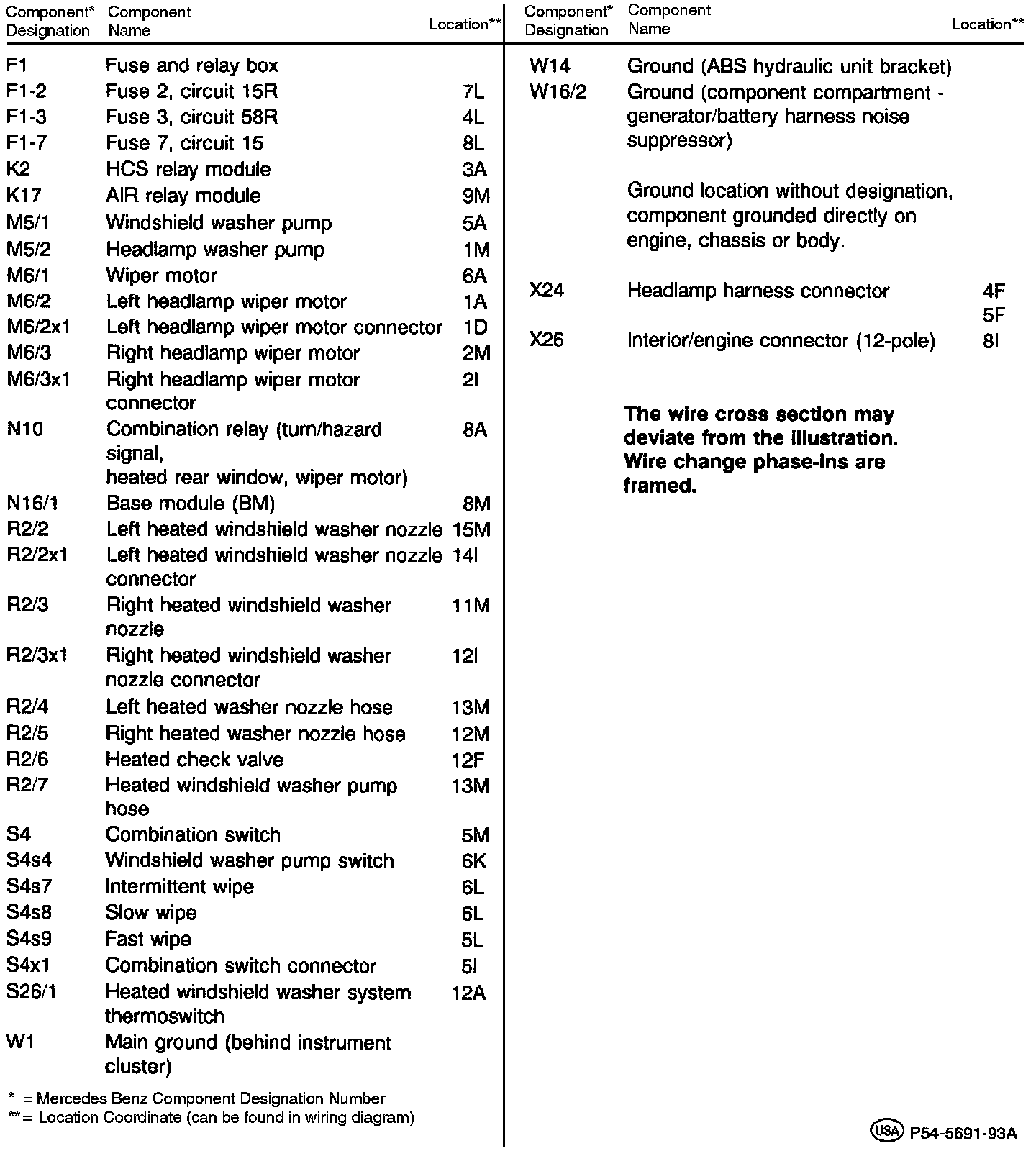

Windshield/Headlamp Cleaning System - Component Index:
Component Index
