Home
>>
Mercedes Benz
>>
1996
>>
E 320 (210.055) L6-3.2L (104.995)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Body Control Systems
>>
Testing and Inspection
>>
Combination Control Module
>>
Diagnostic Test Procedures
>>
Diagnostic Chart
Diagnostic Chart

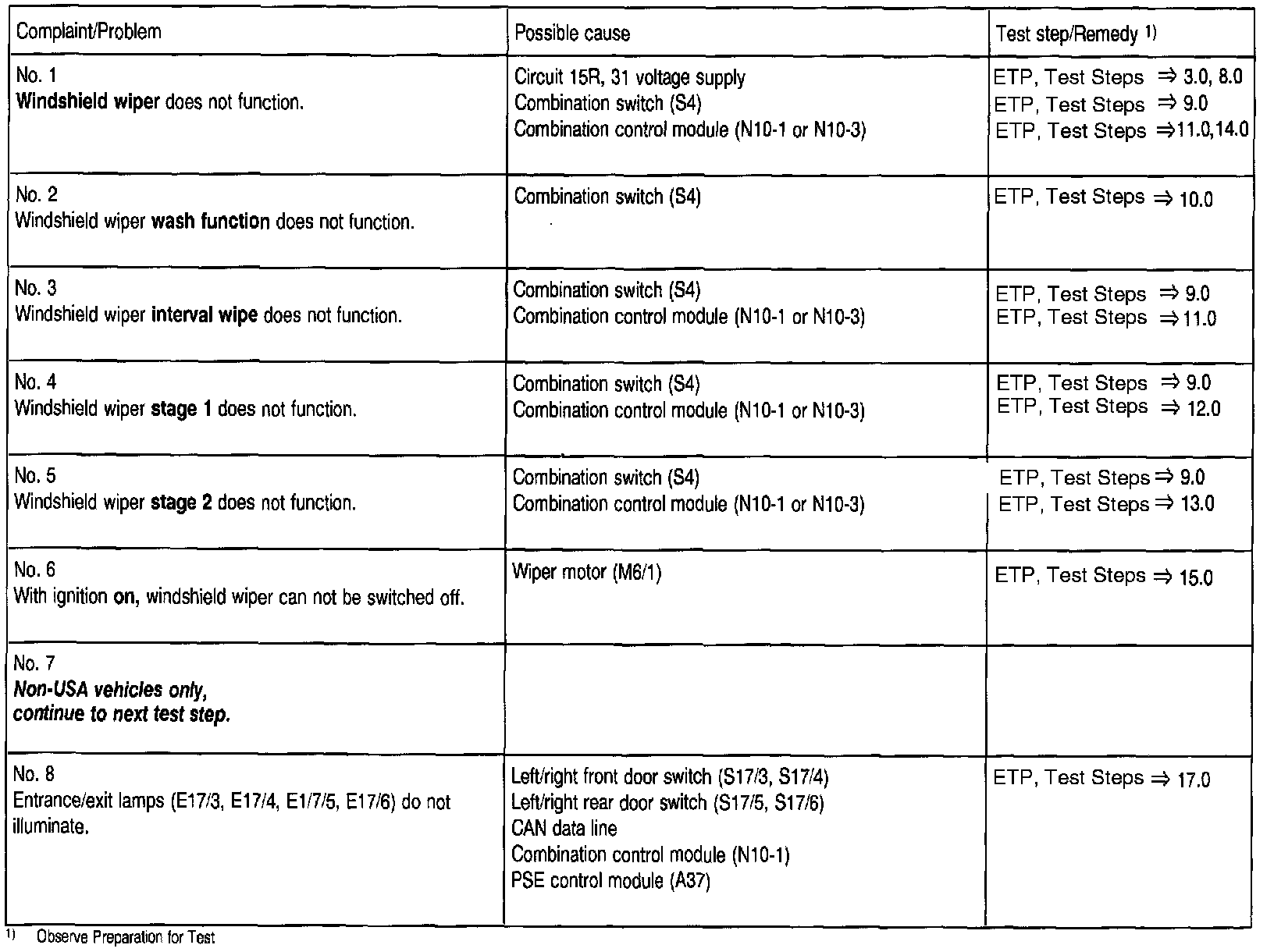

Complaint/Problem No. 1, 2, 3, 4, 5, 6, 7 & 8

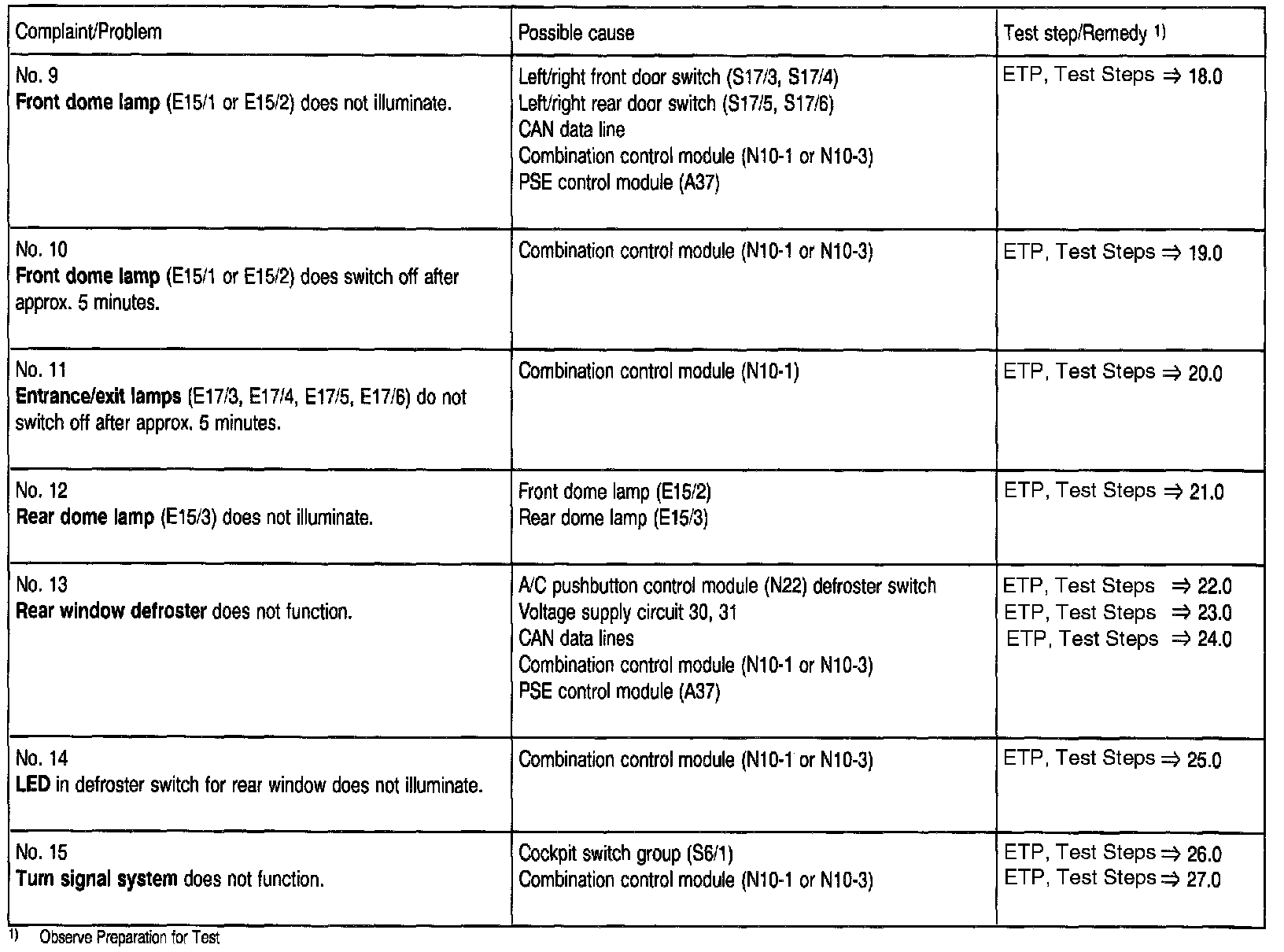

Complaint/Problem No. 9, 10, 11, 12, 13, 14 & 15

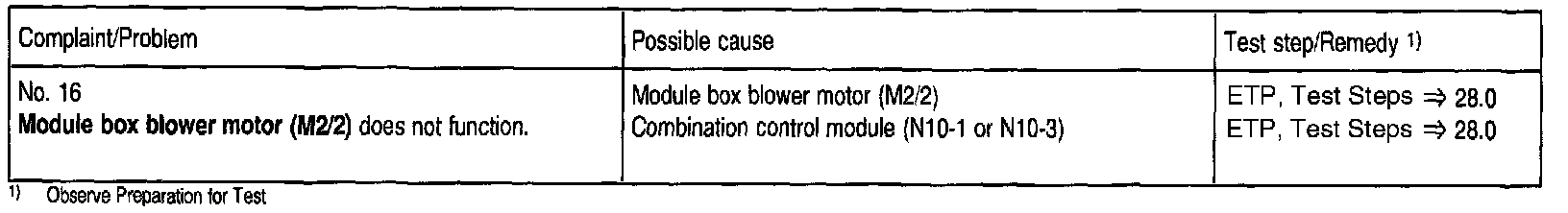

Complaint/Problem No. 16
