Function Test - Section 11


A. Multi-contour backrest

Preparation For Test:
1. Check fuses F1-14, F1-22, F4-3 F4-5 OK,
2. Battery voltage 11 - 14 V
3. Ignition: ON

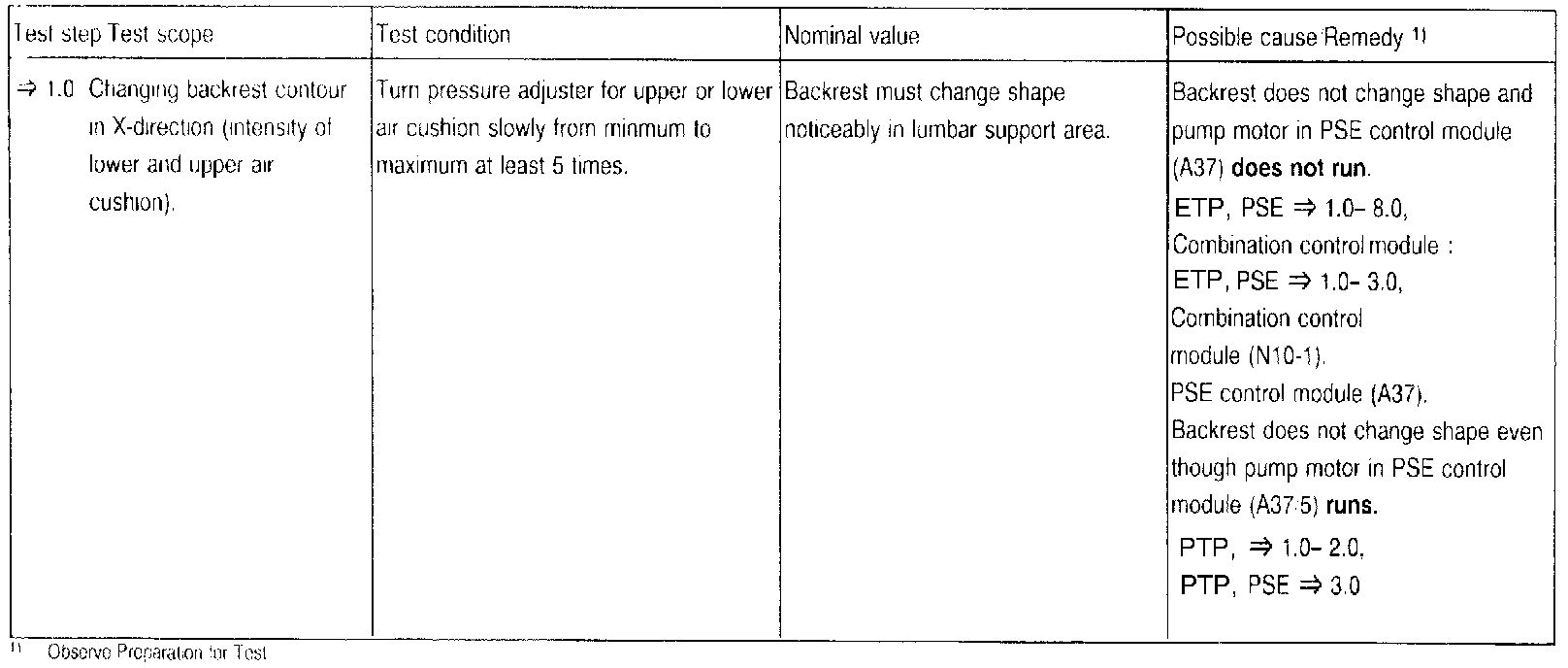

Test Step 1.0:

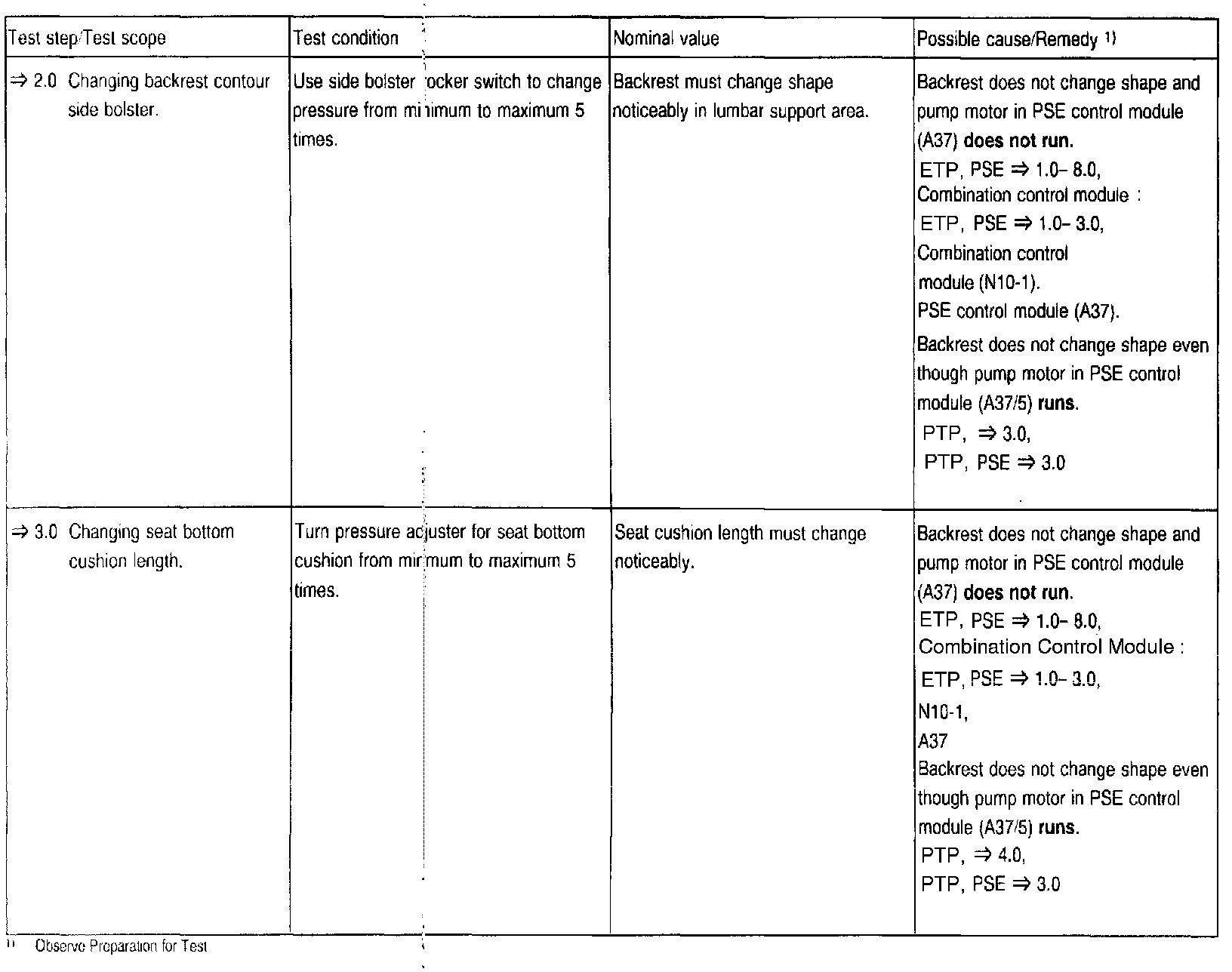

Test Steps 2.0 & 3.0:
