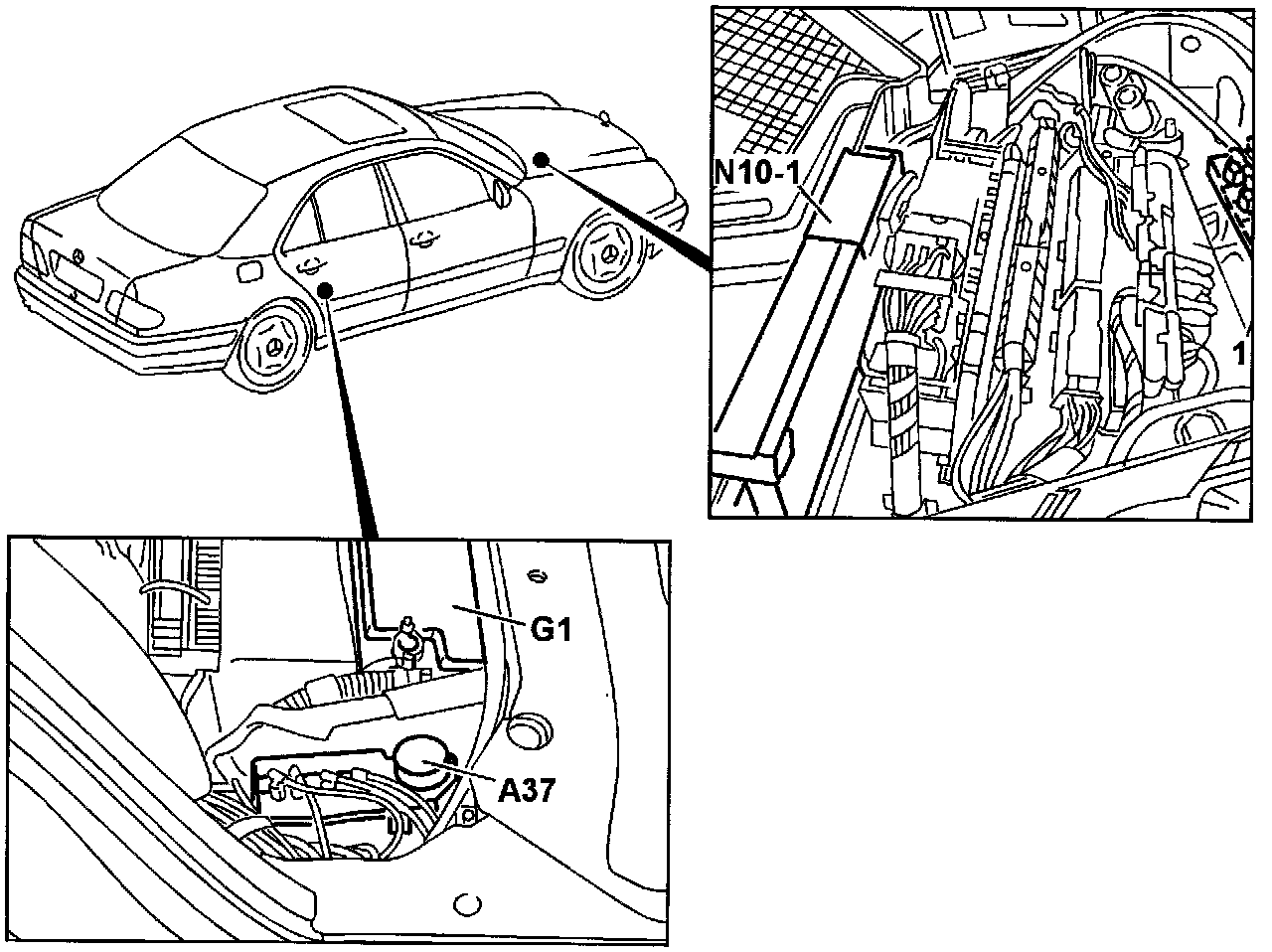

Component Locations - Section 20







A37 PSE control module, combined functions
G1 Battery
N10-1 Combination control module
1 Vacuum distribution block
