Preparation For Test - Section 22

1. Fuses for PSE system and PSE control module ok,
2. Battery voltage 11 - 14 V,
3. Provide access to PSE control module (A37),
4. Provide access to combination control module (N10-1 or N10-3),
5. Connect socket box with test cable according to connection diagram.

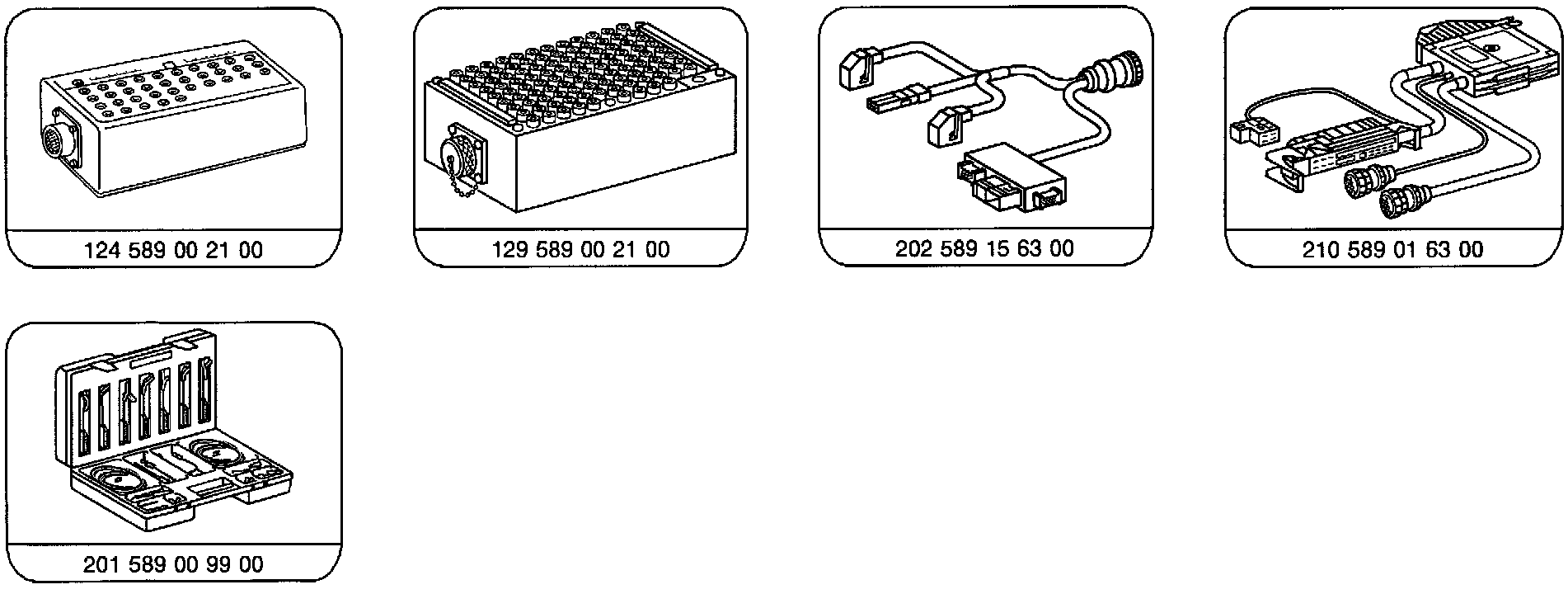

Special Tools:

Conventional tools, test equipment
Description Brand, model, etc.
Multimeter 1) Fluke models 23, 83, 85, 87

1) Available through the MBNA Standard Equipment Program.

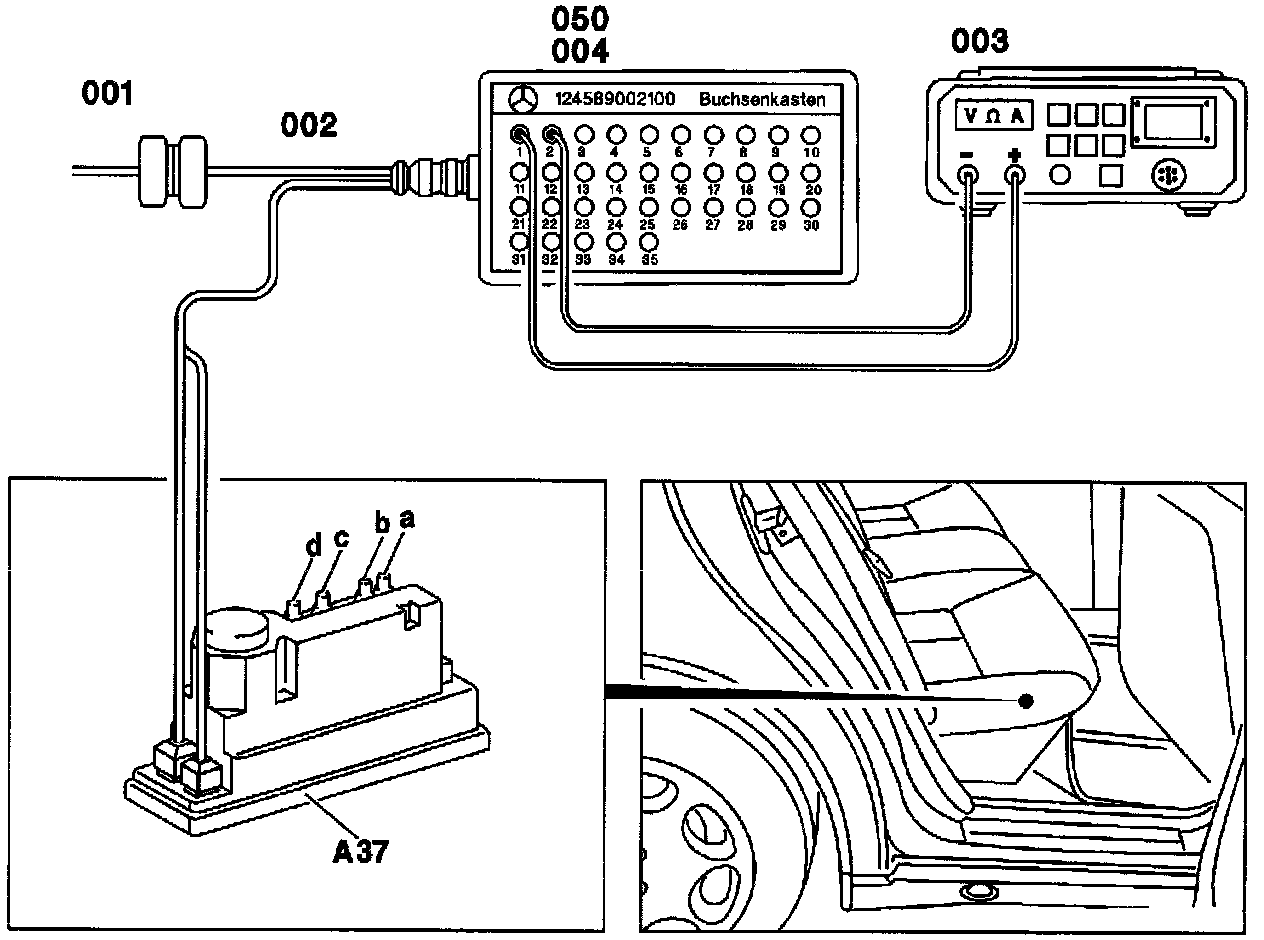

Connection Diagram - Socket Box
(sedan shown)

Model 210 (Sedan Shown):

A37 PSE control module, combined functions
001 PSE control module connector
002 Test cable
003 Multimeter
004/050 Socket box (35-pole)

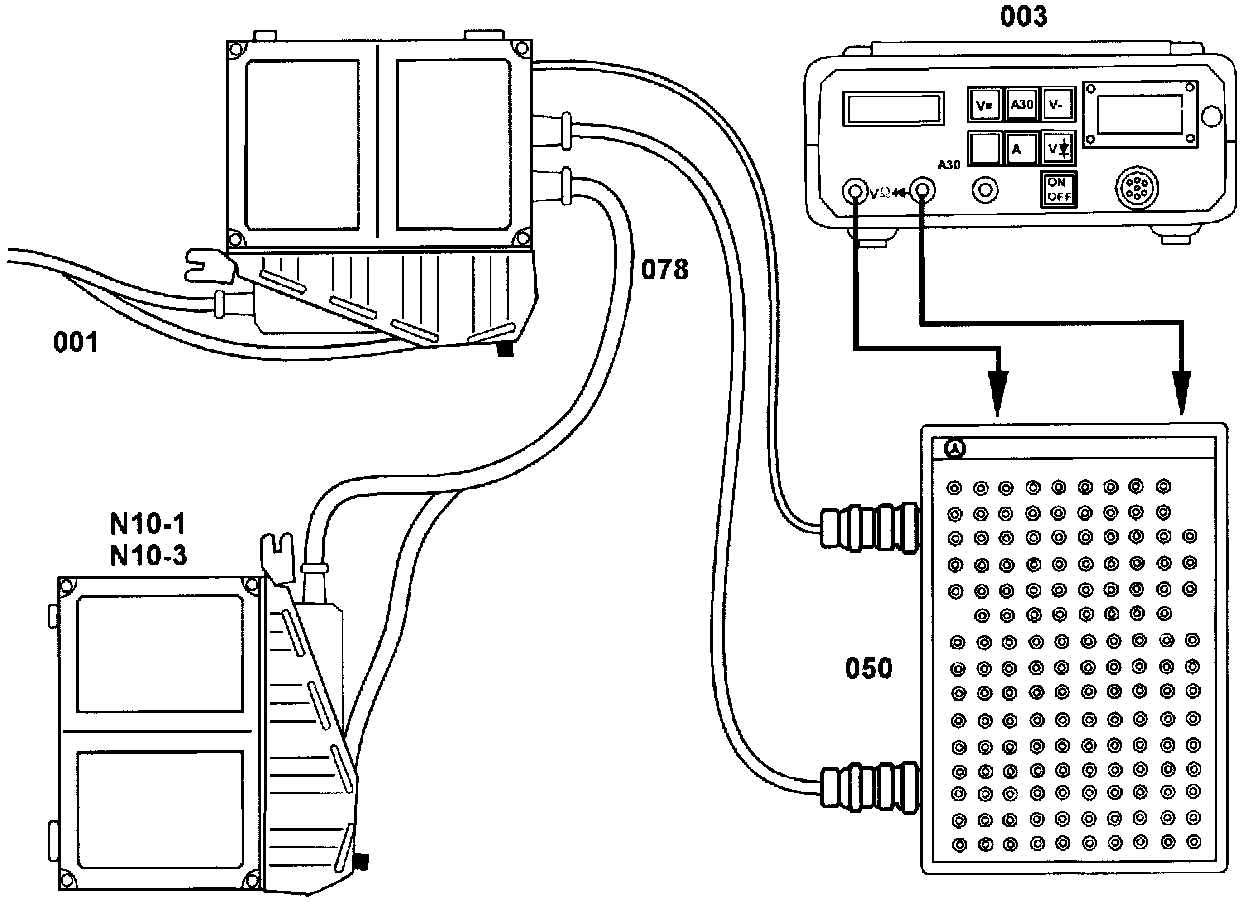

N10-1 Combination control module (model 210)
N10-3 Combination control module (model 170)
001 PSE control module connector
002 Test cable
003 Multimeter
050 Socket box (35-pole)
