Home
>>
Mercedes Benz
>>
1996
>>
E 320 (210.055) L6-3.2L (104.995)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Pneumatic System
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Retractable Rear Head Restraints (PSE/RHR)
>>
PTP - Pneumatic Test Program
>>
Component Locations - Section 31
Component Locations - Section 31

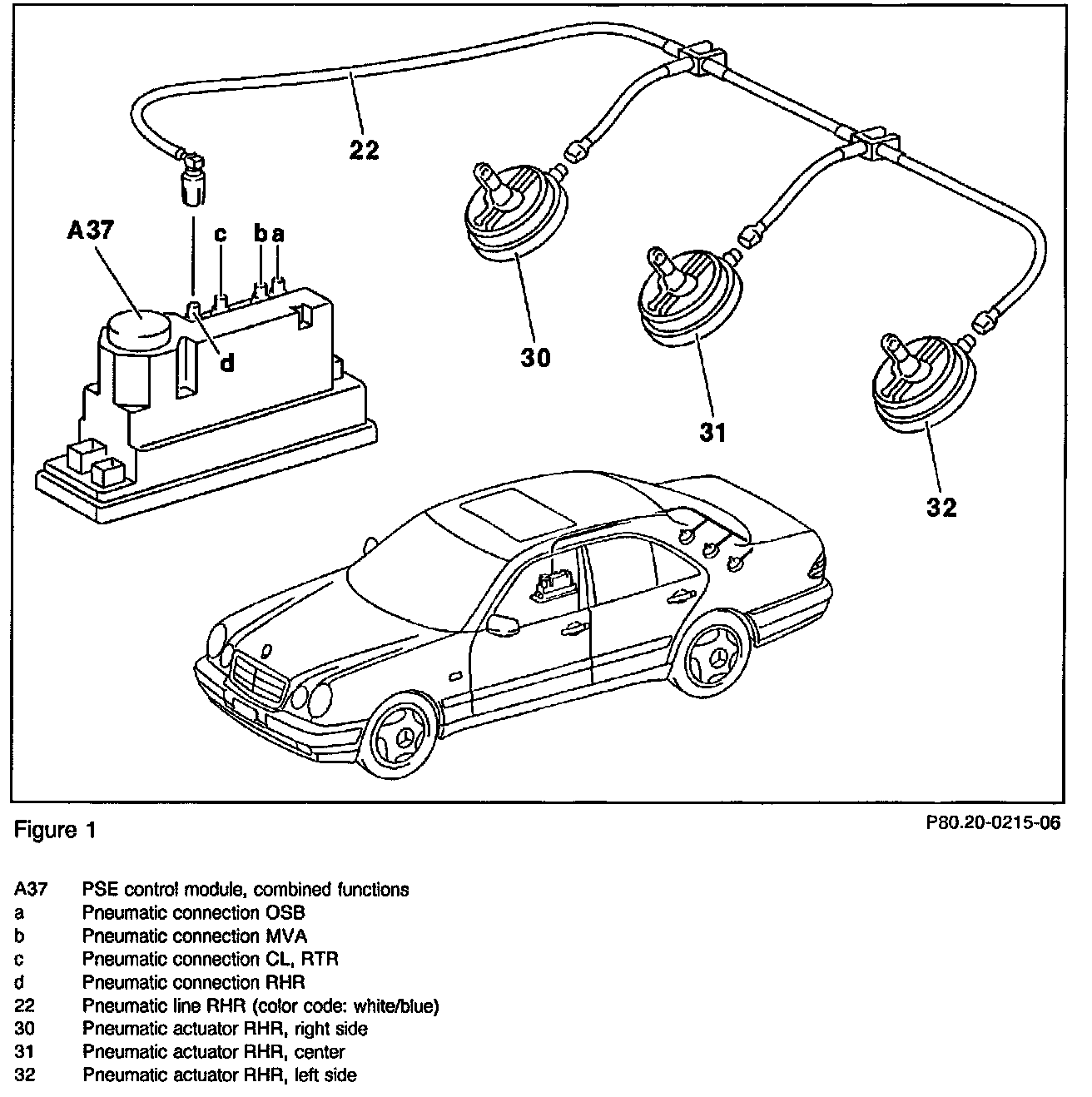

Figure 1:
