Description

Preliminary work:
PSE control module voltage supply ETP PSE => 1.0, 2.0 Test Steps - Section 23
PSE Control Module Test PTP PSE Test Steps - Section 33

Data (mbar)
Test procedure Permissible deviation
Allowable system leakage of 300 mbar
vacuum in 1 minute. <=30 mbar
Allowable leakage of actuators with line
at 300 mbar vacuum in 1 minute. <=25 mbar

Vacuum distribution block used with gasoline models only

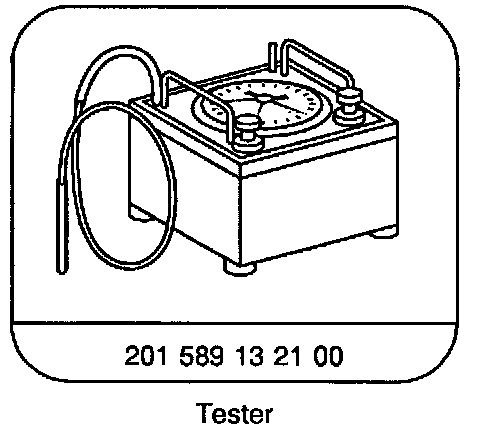

Special Tools:
