B2.2 Engine Compartment (Right)

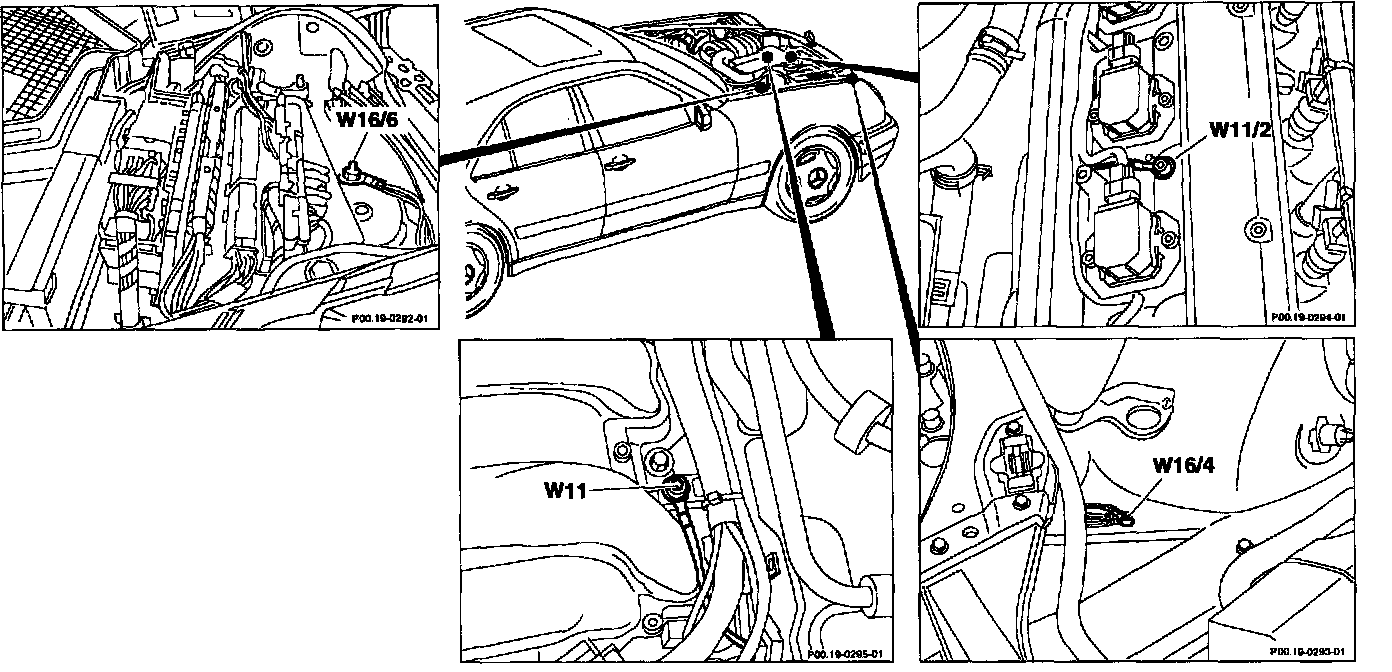

Ground Connection Locations

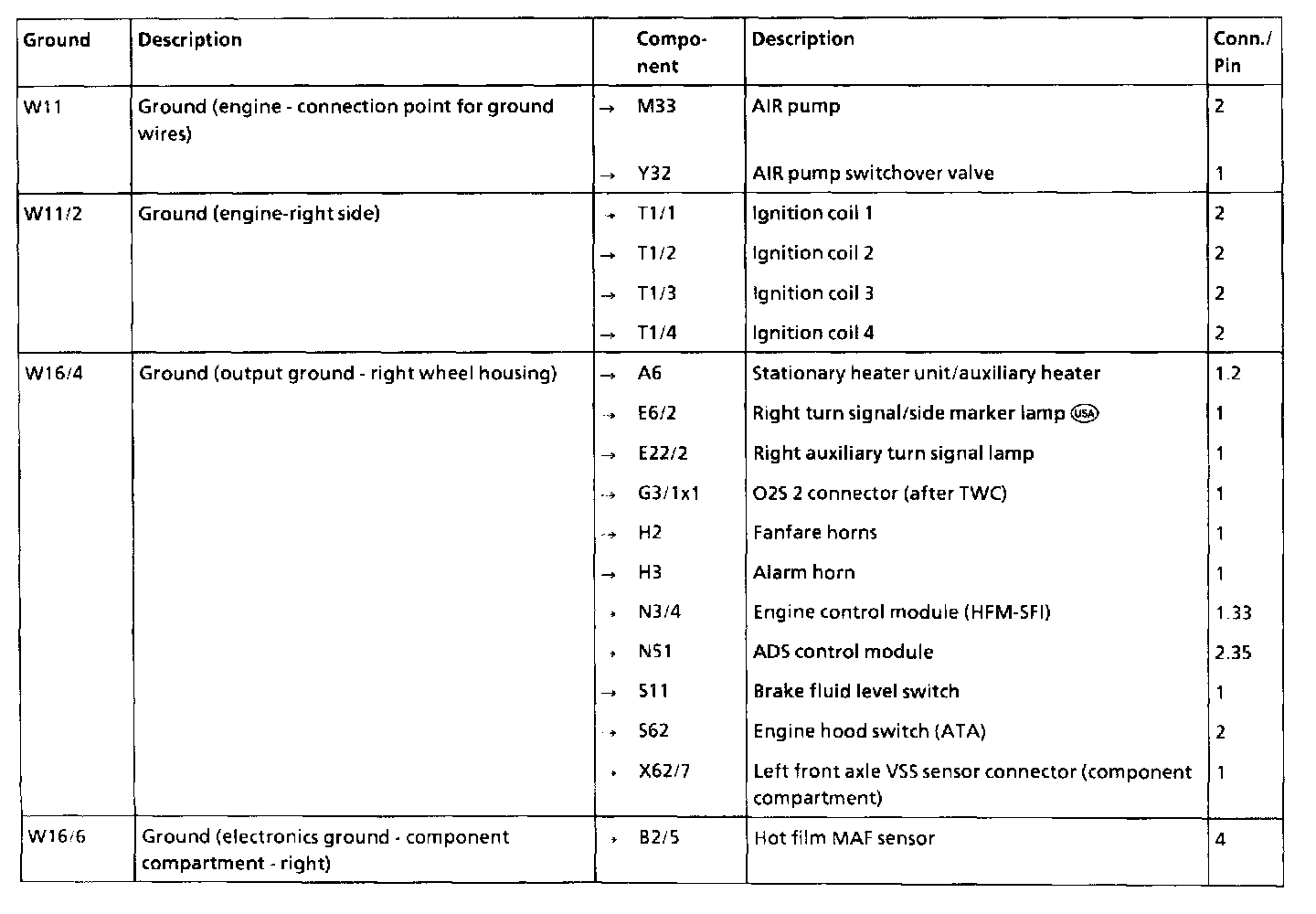

Ground Description/Connector Pin ID

W11 - W16/6:

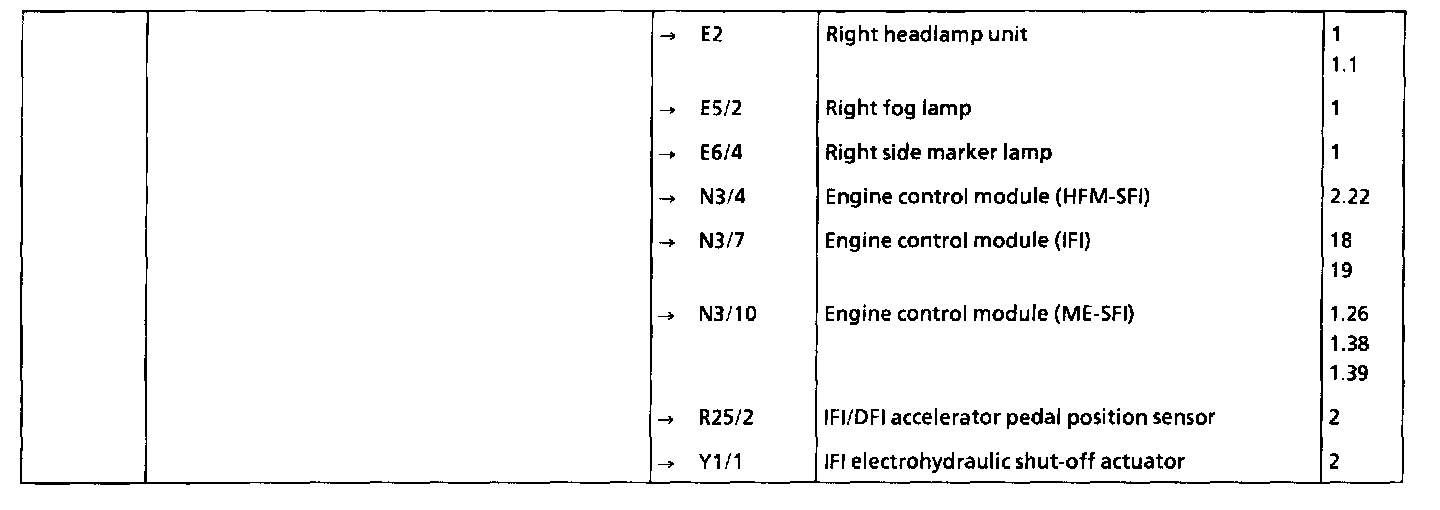

W16/6 (continued):
