Poor Output/Fuel Consumption
Poor Output/Fuel Consumption

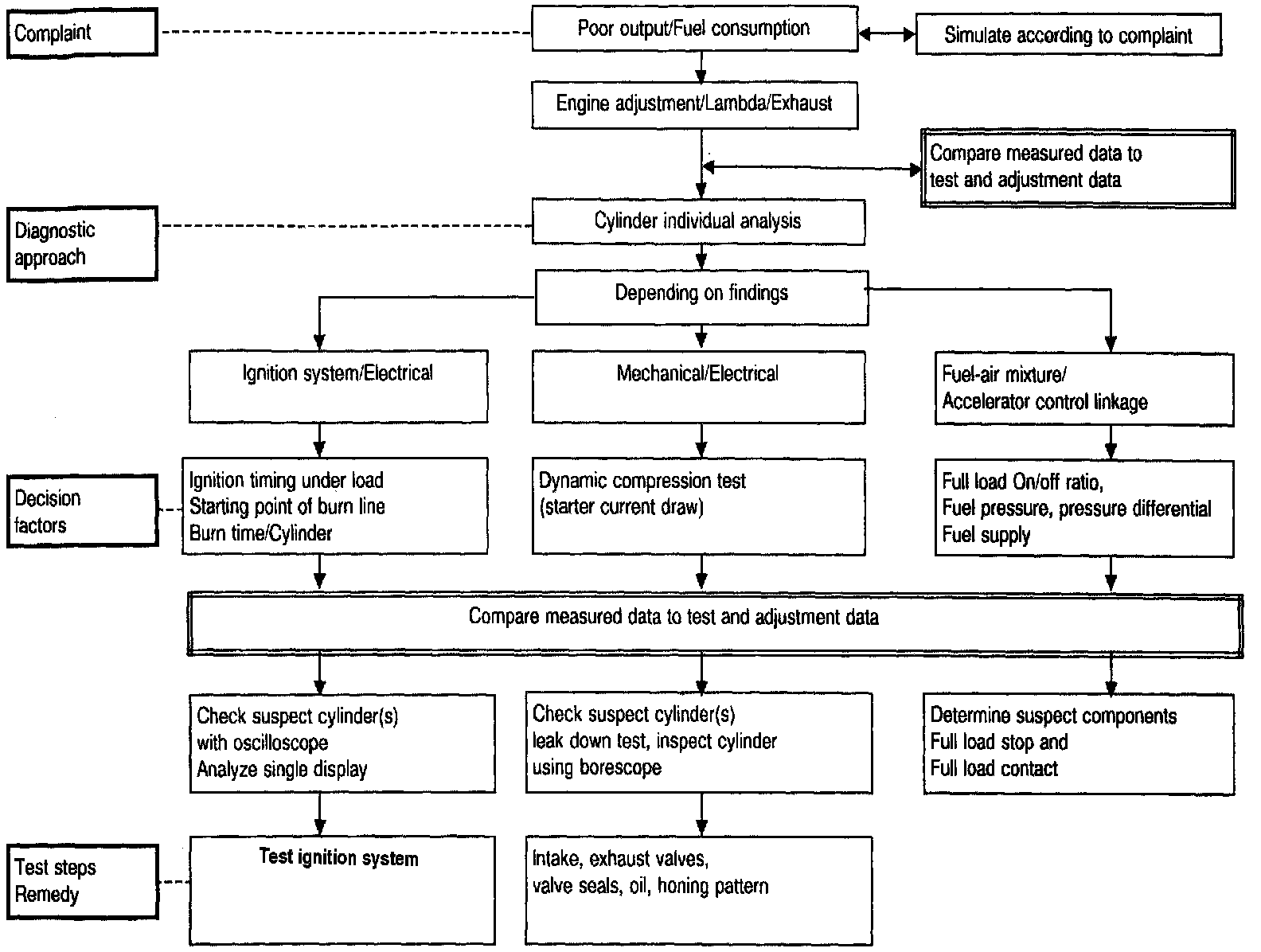

Diagnostic Flow Chart, Poor Output/Fuel Consumption:
