Fuel Supply for HFM

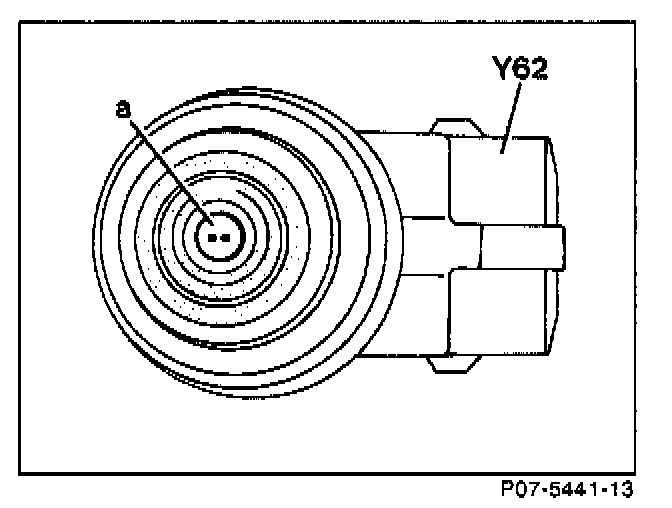

The fuel supply system is essentially the same on the one used for LH-SFI except that the injectors (Y62) feature two spray holes (a).

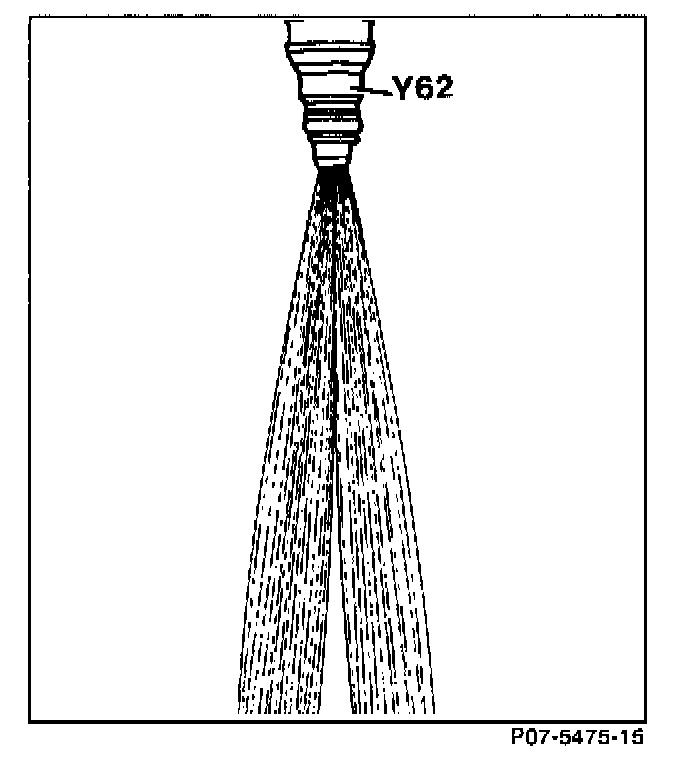

As a result of the positioning of the two spray holes, two jets of fuel are discharged and atomize over both intake valves.
