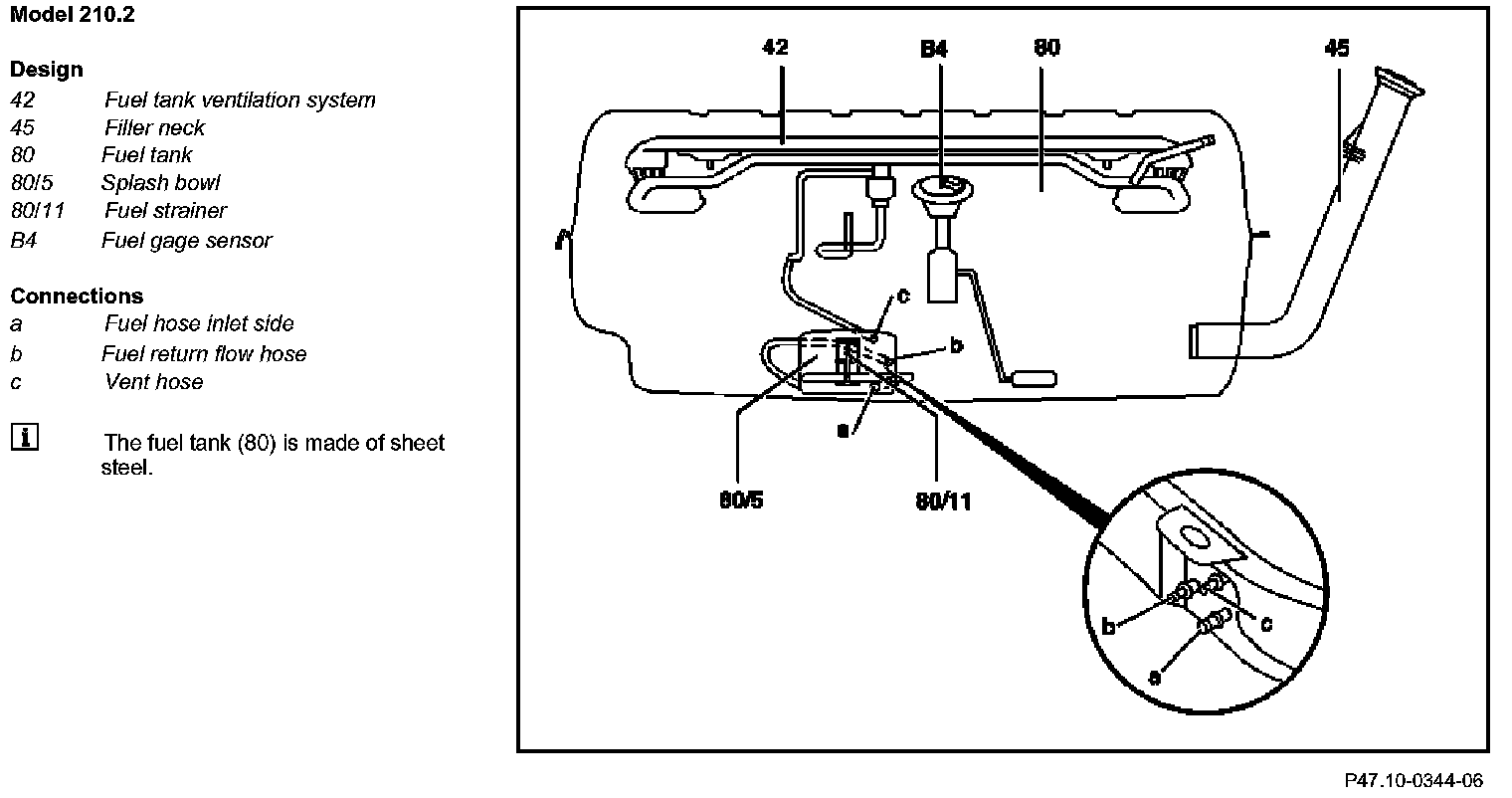

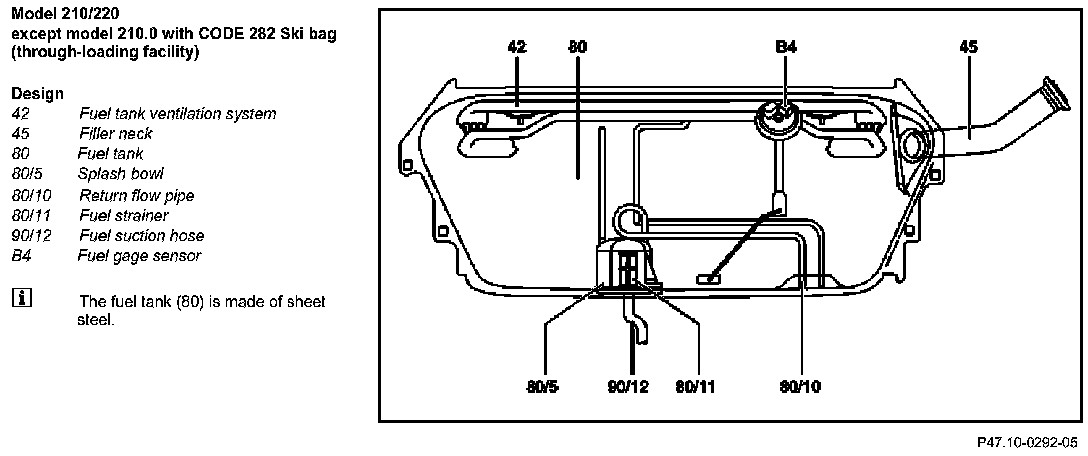

GF47.10-P-3000-02B Fuel Tank Design
GF47.10-P-3000-02B Fuel Tank Design
GF47.10-P-3000-02B
Fuel Tank
Design
-

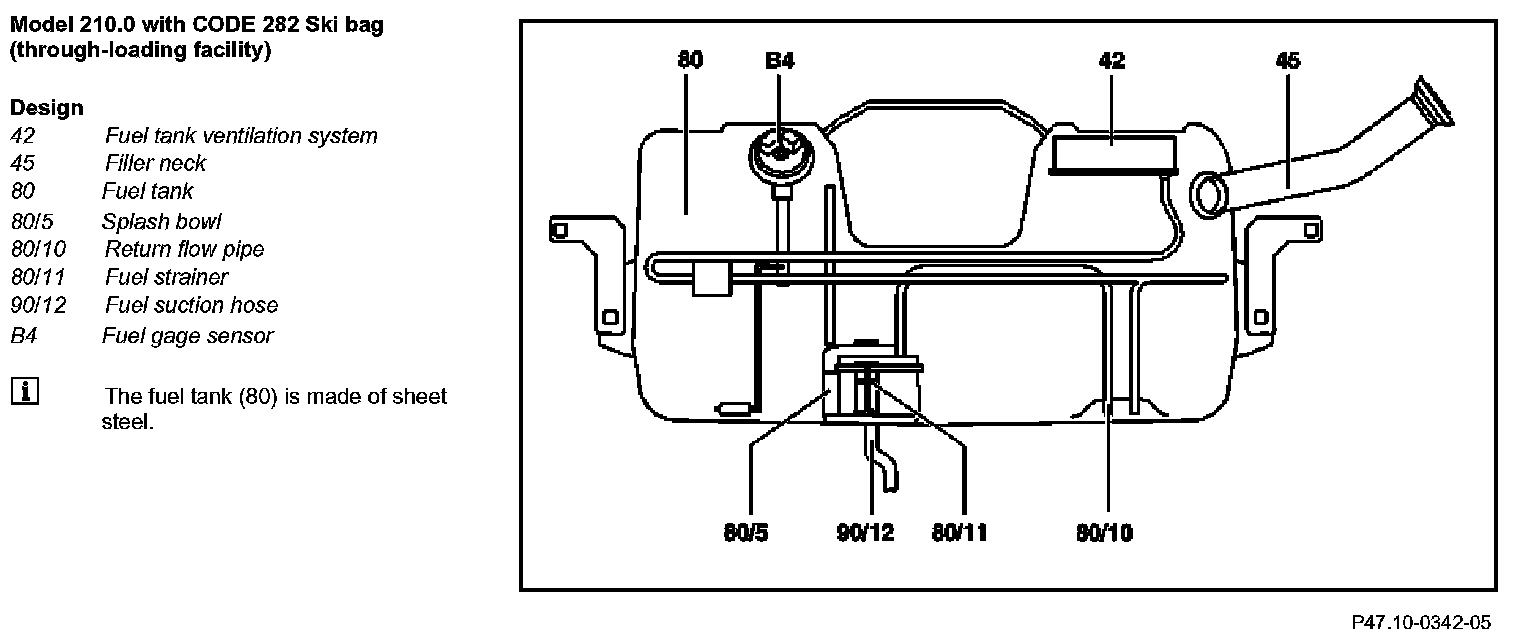

with CODE (282) Ski bag (through-loading facility)
