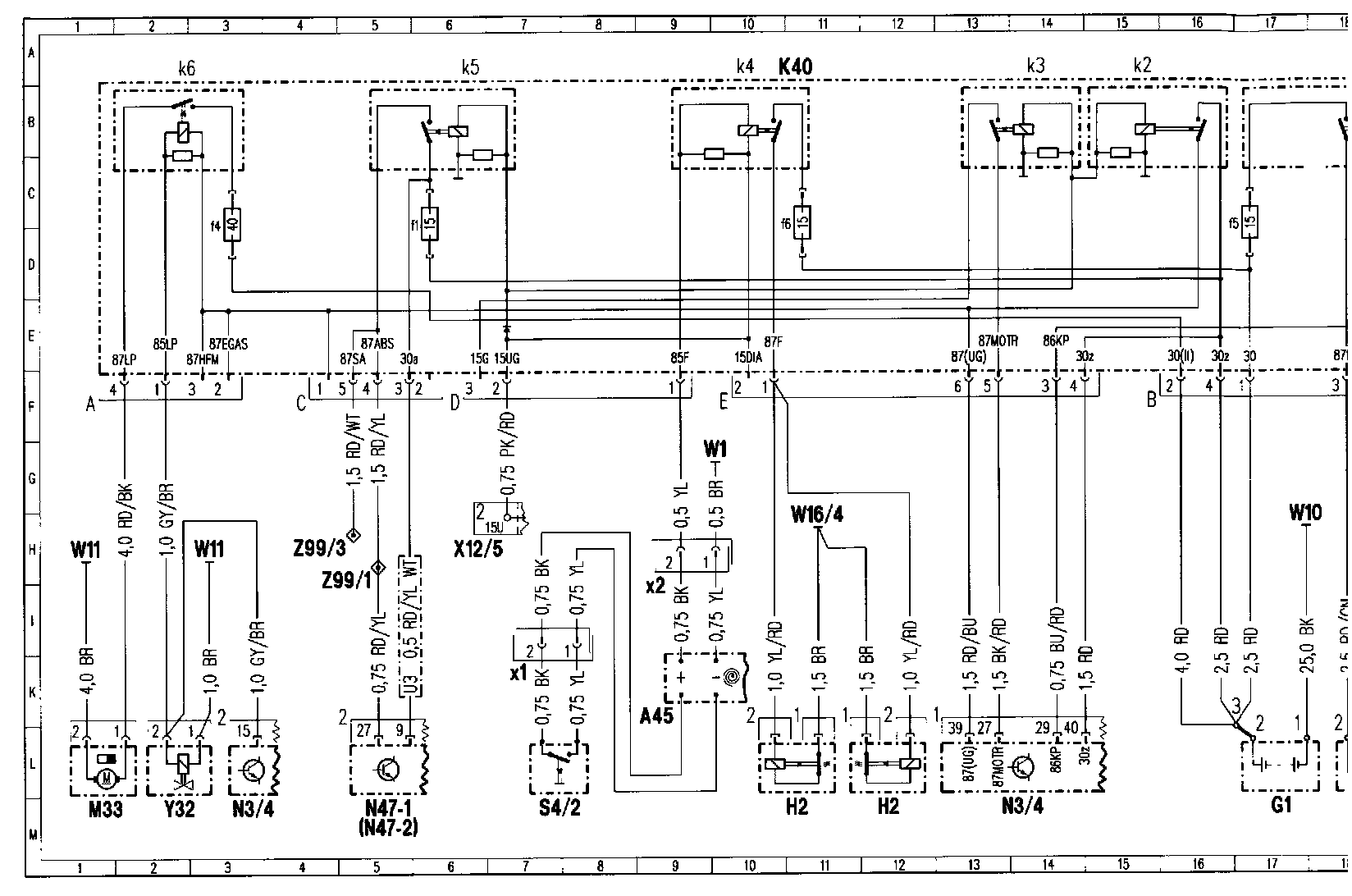

Fuse and Relay Module (K40) PE54.20-U-2000B (Up To 05/31/96)



��:






Component Grid Location

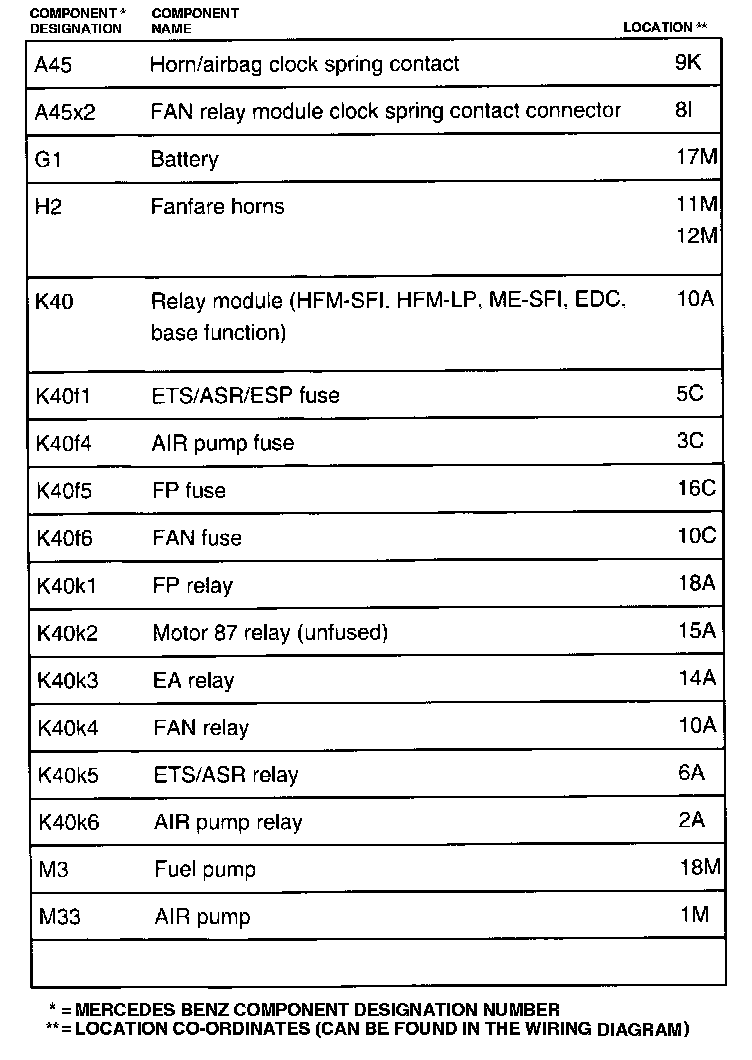

A45 - M33:

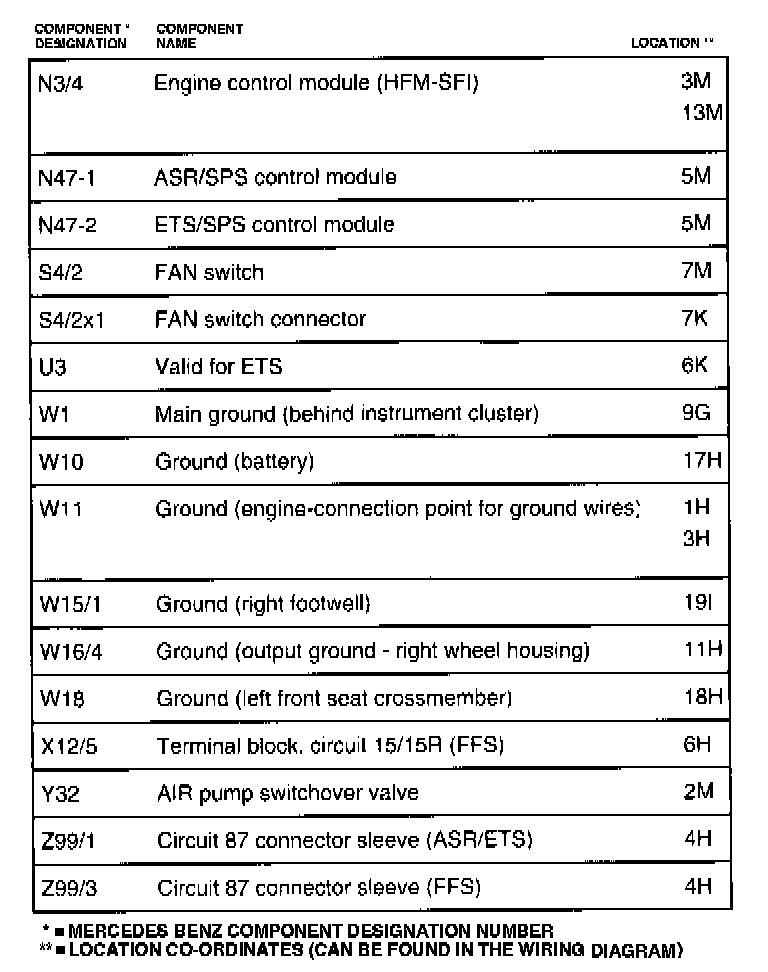

N3/4 - Z99/3:
