AR46.10-P-0900C Remove/Install Steering Lock
AR46.10-P-0900C Remove/Install Steering Lock
AR46.10-P-0900C Remove/Install Steering Lock

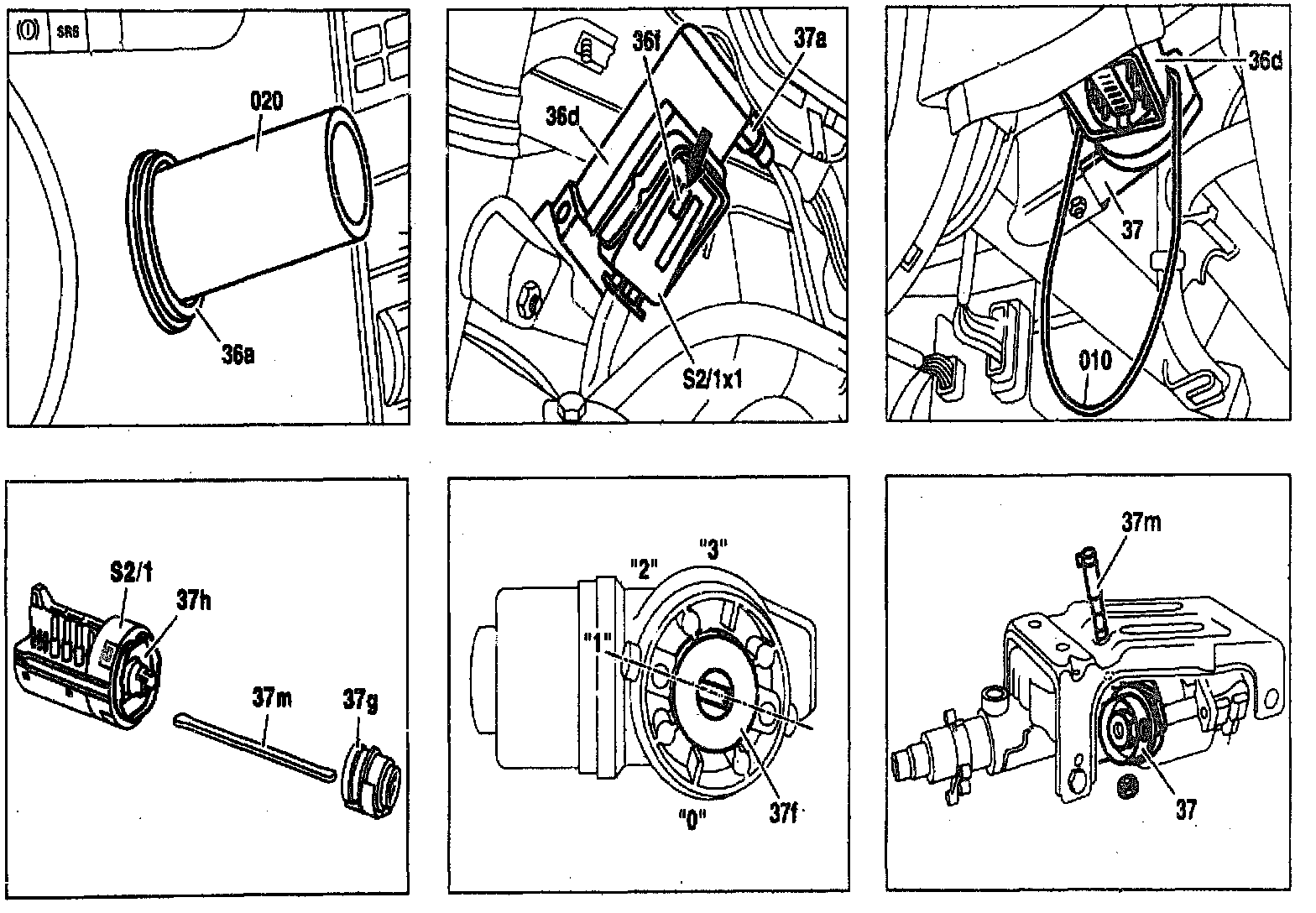

Component Identification:

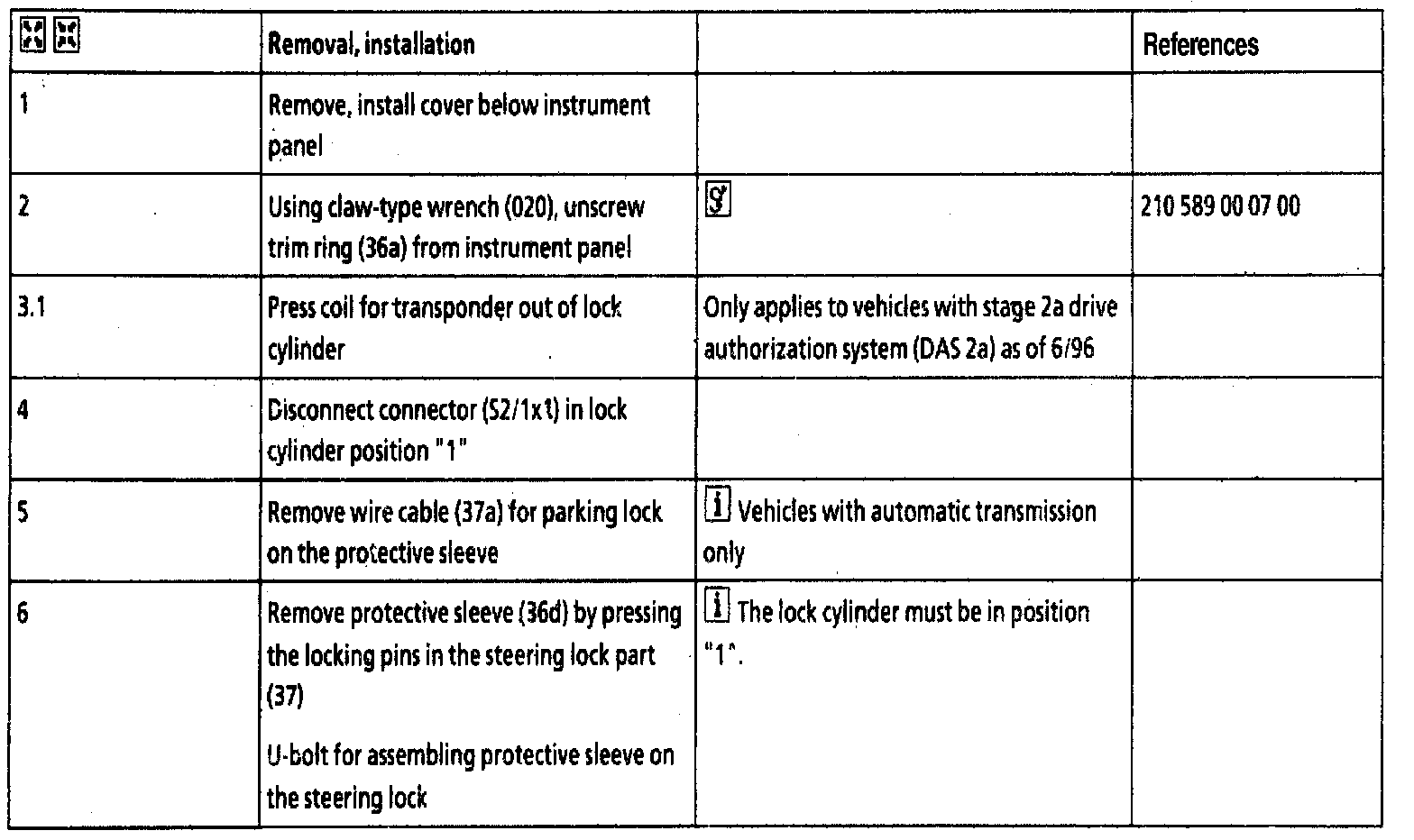

Steps 1 - 6:

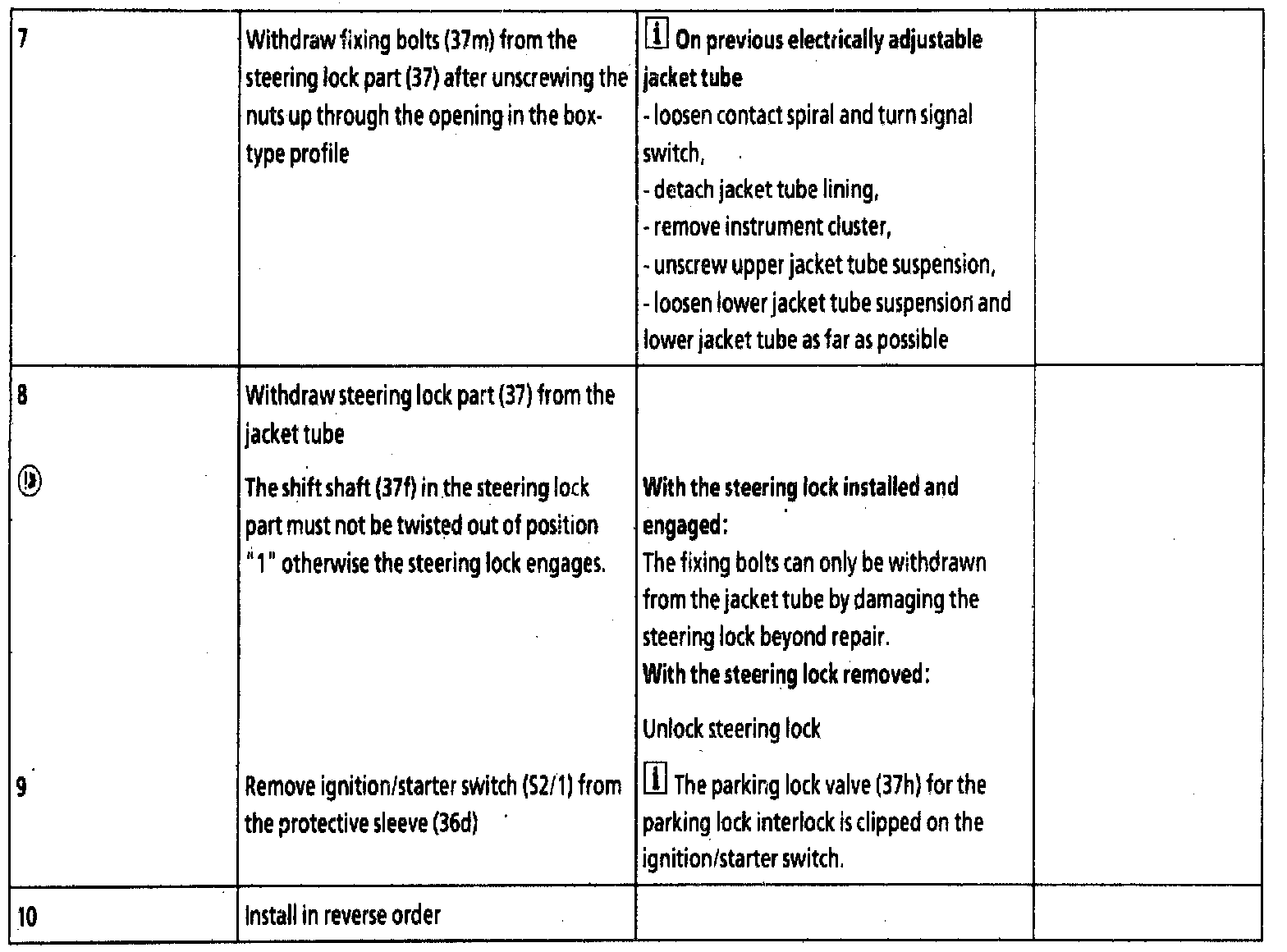

Steps 7 - 10:

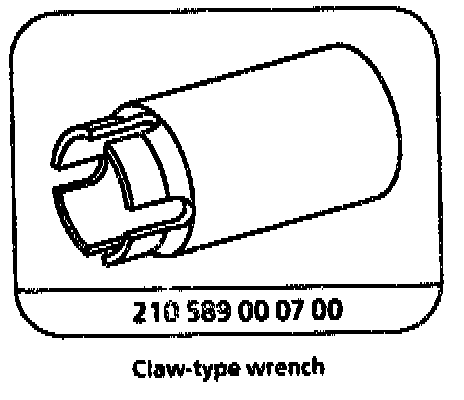

Special Tools:
