Home >> Mercedes Benz >> 1998 >> S 500 (140.051) V8-5.0L (119.980) >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Diagrams >> Electrical Diagrams >> Vanity Mirror PE68.69-U-2000XZ

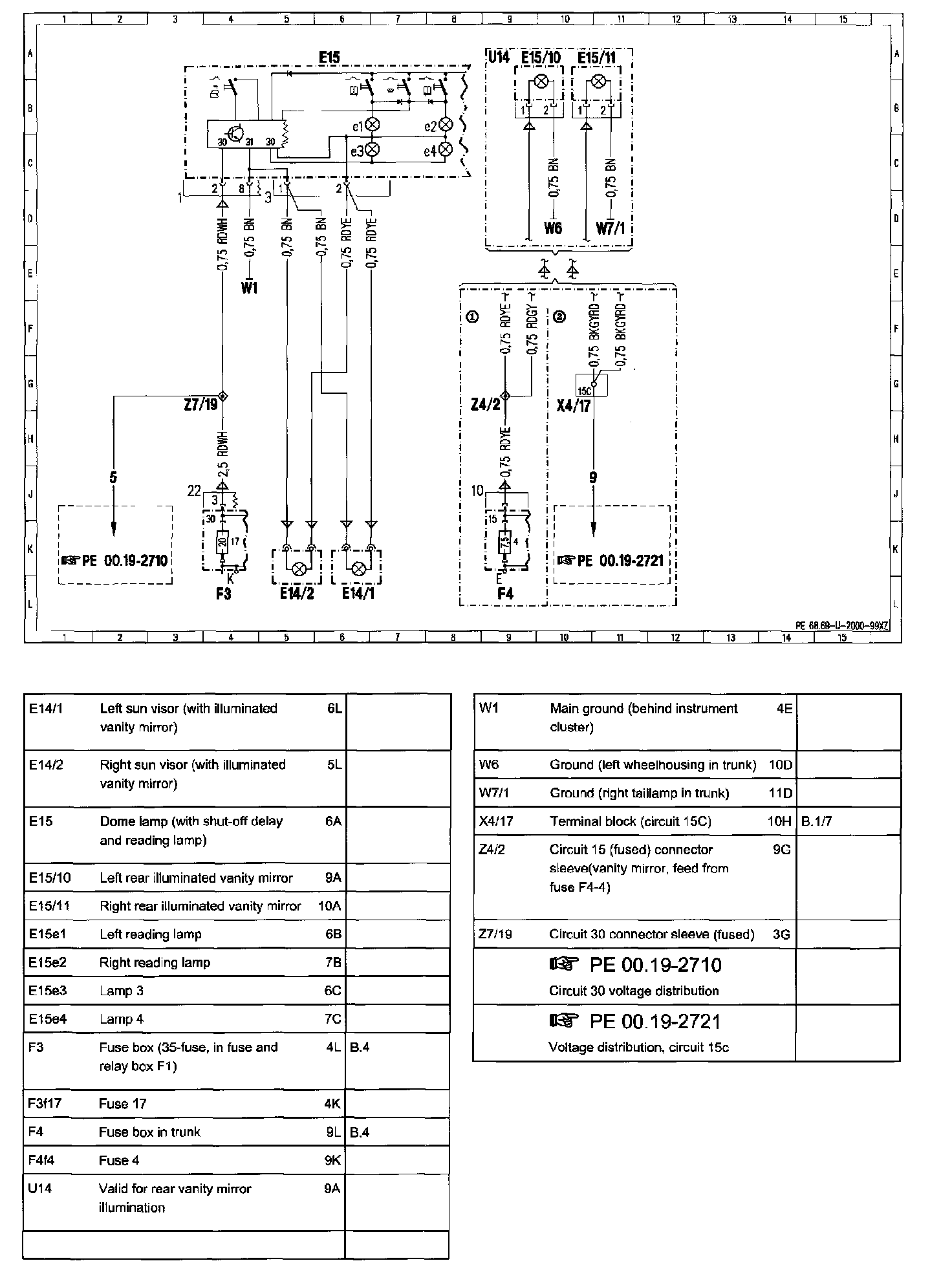

Vanity Mirror PE68.69-U-2000XZ

PE68.69-U-2000-XZ:
