Circuit 15 Wiring PE00.19-U-2720XA
Circuit 15 Wiring PE00.19-U-2720XA

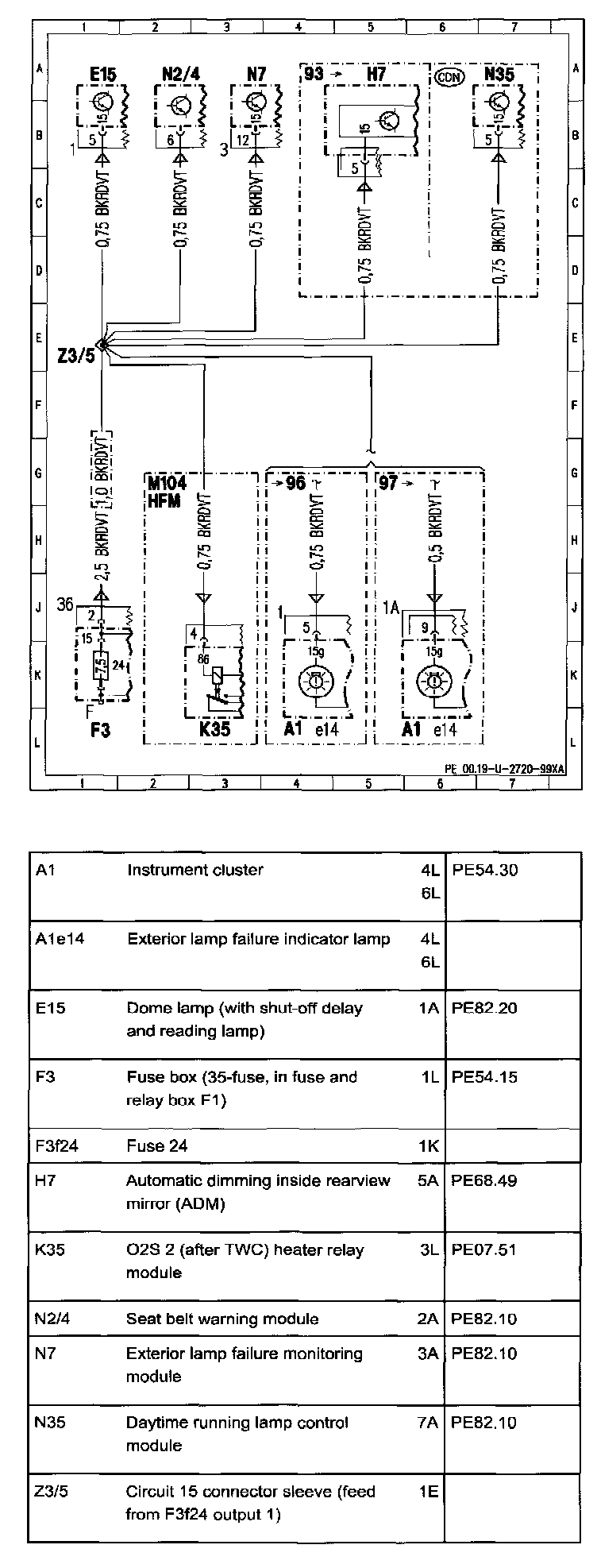

PE00.19-U-2720-XA - Voltage Distribution Via Connector Sleeve Z 3/5:
