Electric Mirror, Steering Column Adj., Heated Mirrors (EMSC)
>>
ETP - Electrical Test Program
>>
Connection of Components
Connection of Components
Electric Steering Column Adjustment:

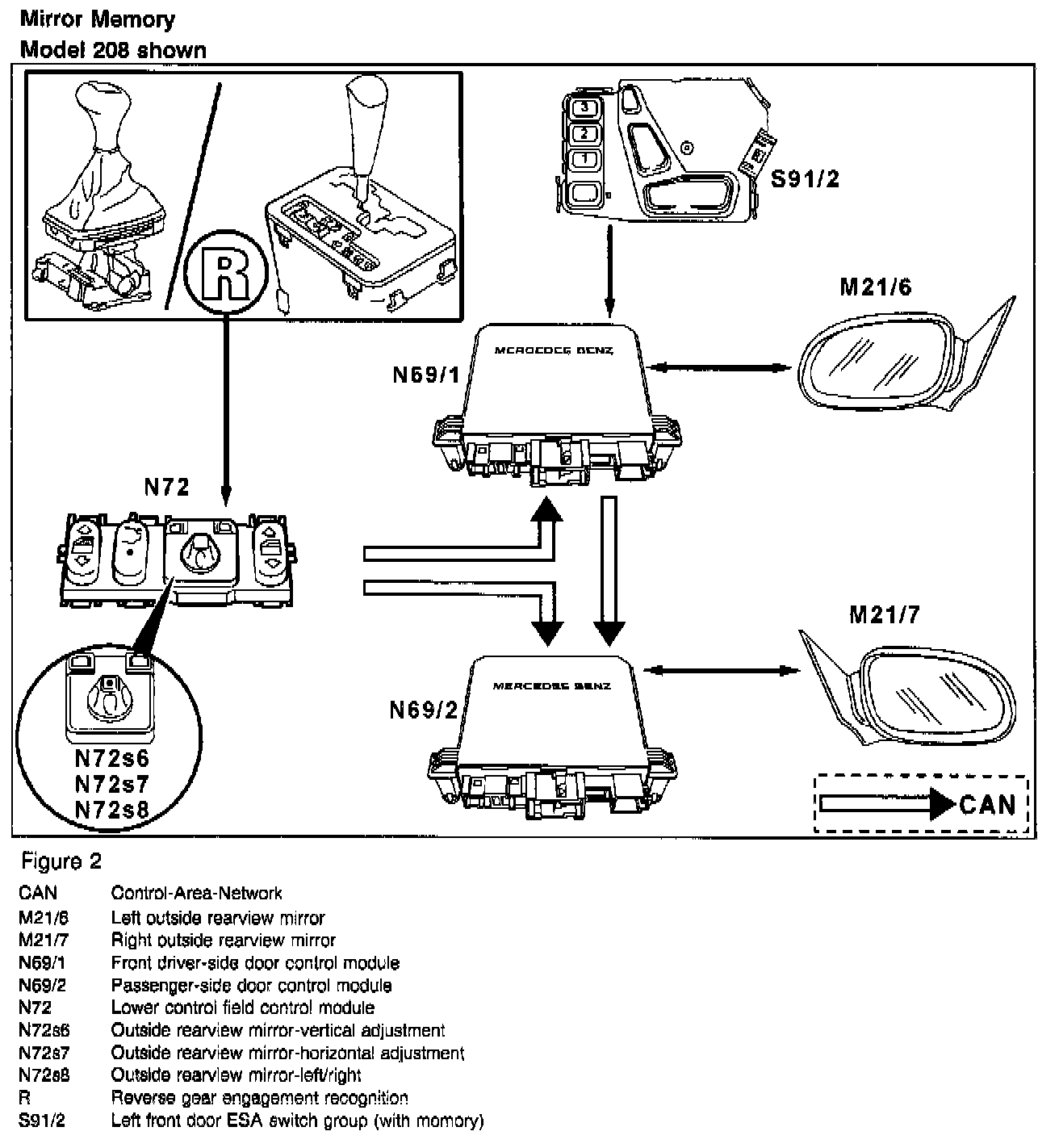

Mirror Memory:

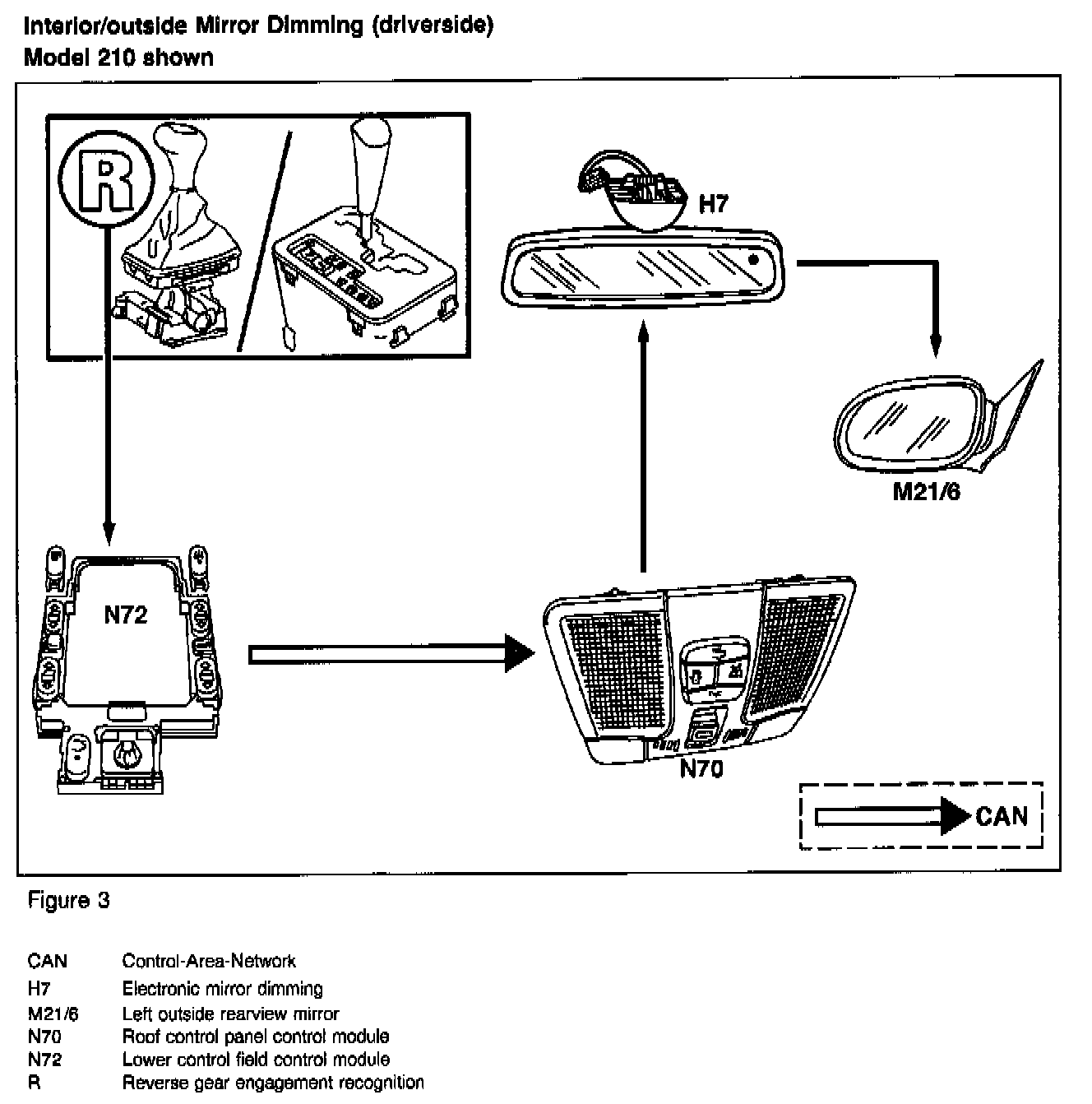

Mirror Dimming (Driver Side):
Mirror Heating:
