General Tightening Specifications

General Tightening Specifications

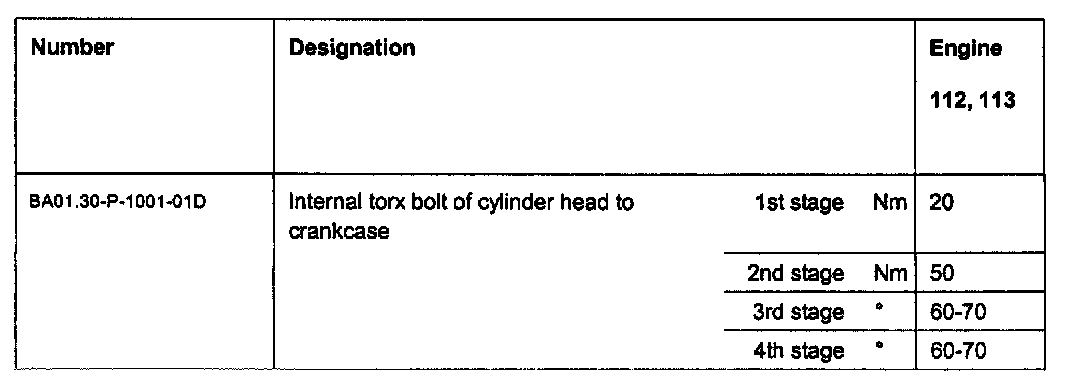

Cylinder head to crankcase tightening specifications





Cylinder head tightening sequence, V6





Cylinder head tightening sequence, V8





Cylinder head bolt length dimensions





Cylinder head bolt length measurement points

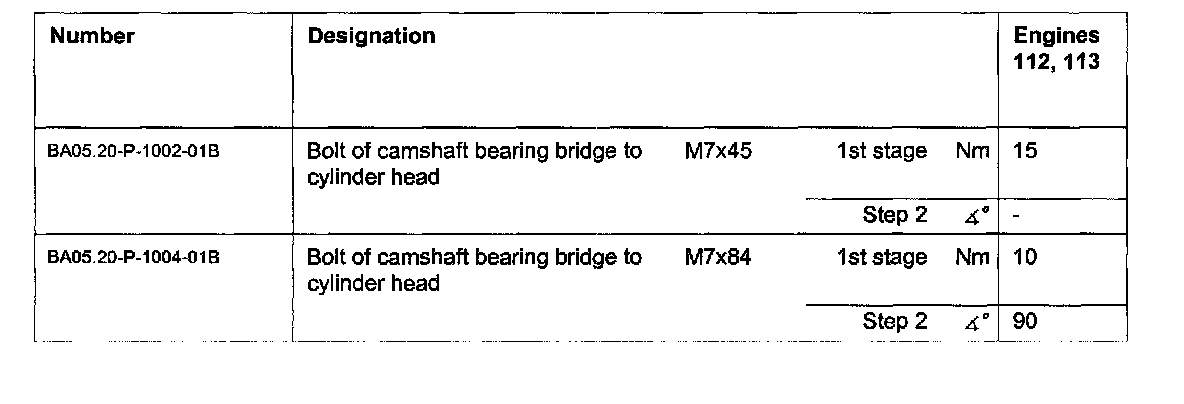

Camshaft bearing bridge tightening specifications

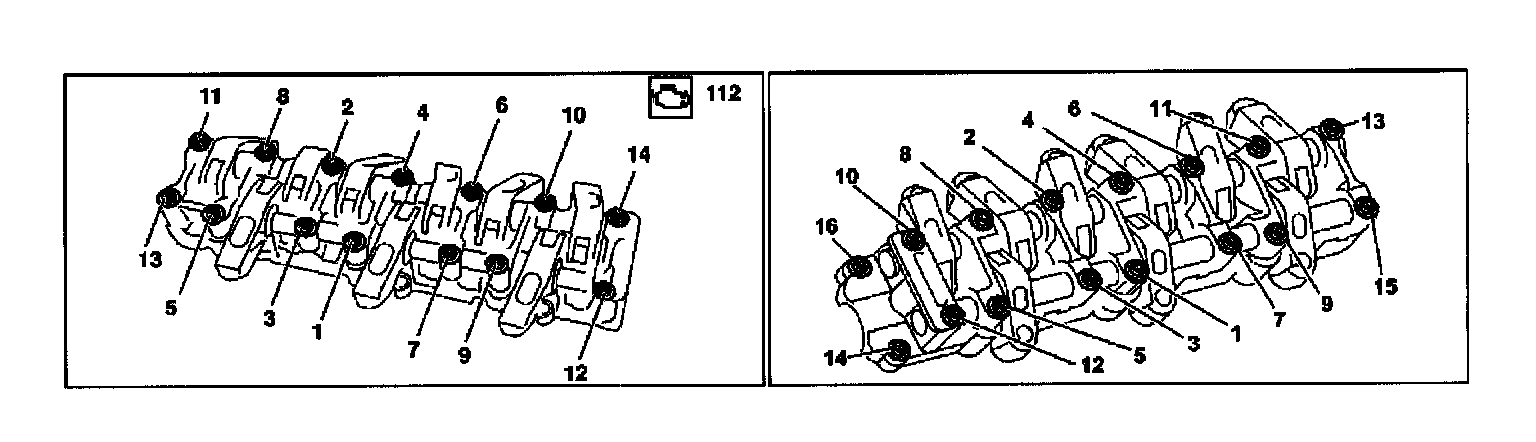

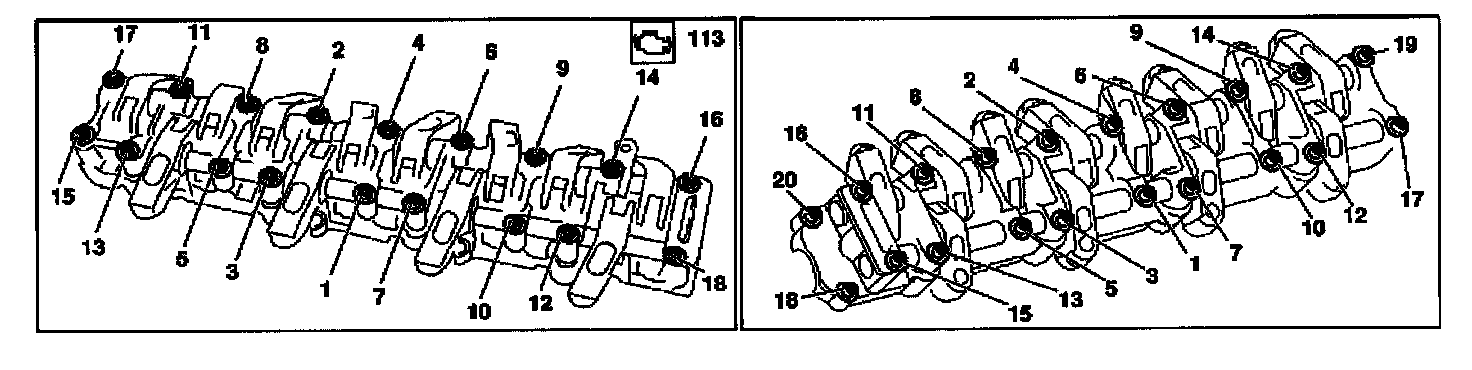

Camshaft bearing bridge tightening sequence, V6




Camshaft bearing bridge tightening sequence, V6

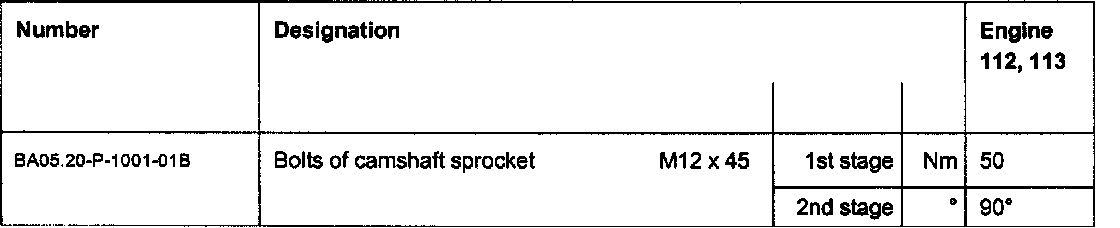

Camshaft, camshaft adjuster tightening specifications

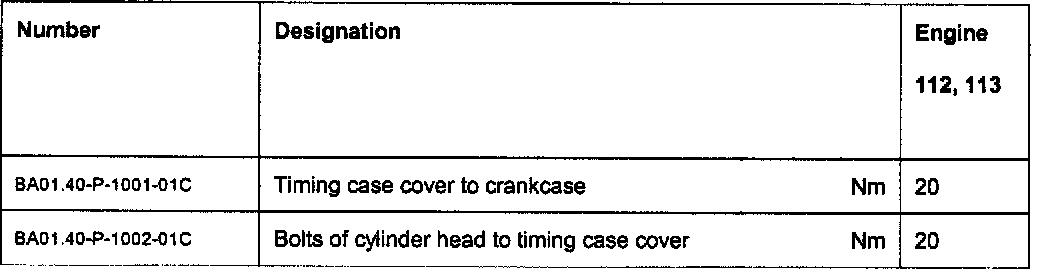

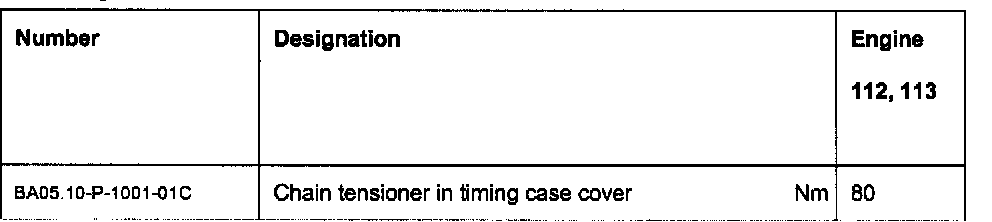

Crankcase, timing case cover, end cover tightening specifications





Vibration damper tightening specifications

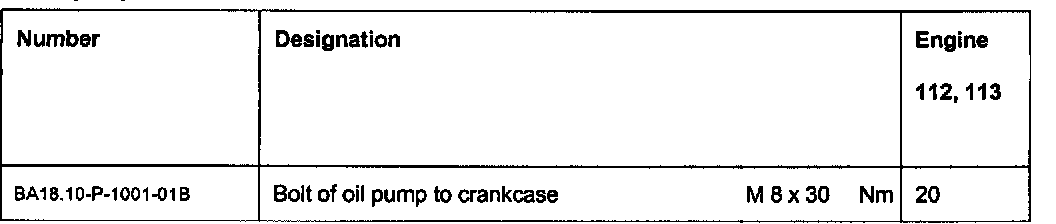

Oil pump tightening specifications

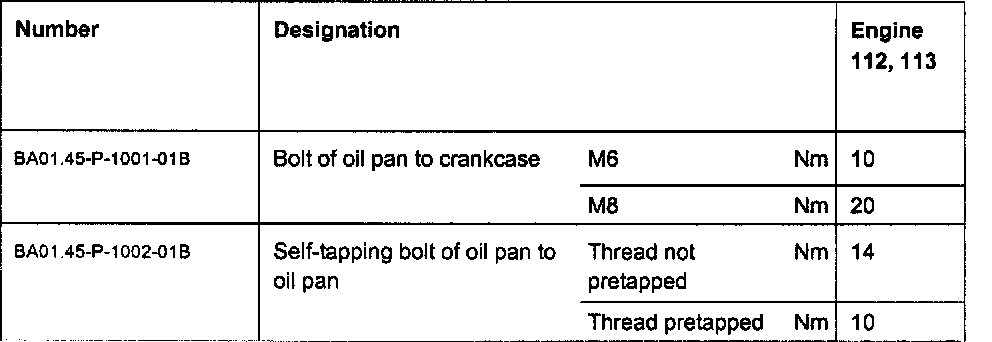

Oil pan tightening specifications

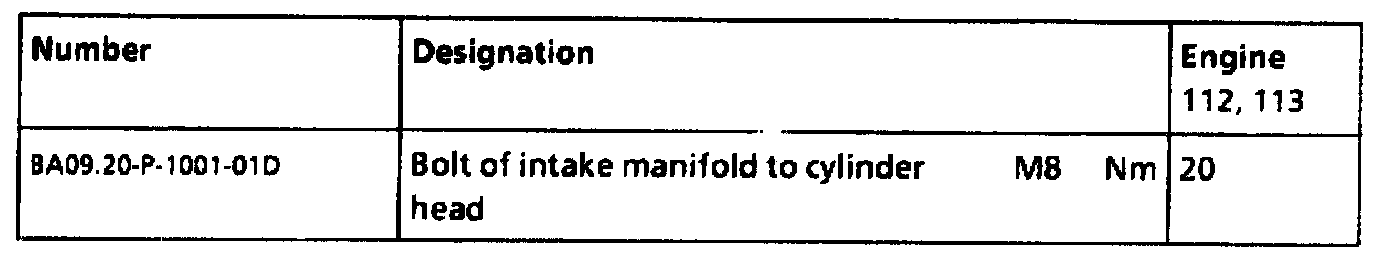

Intake manifold tightening specifications

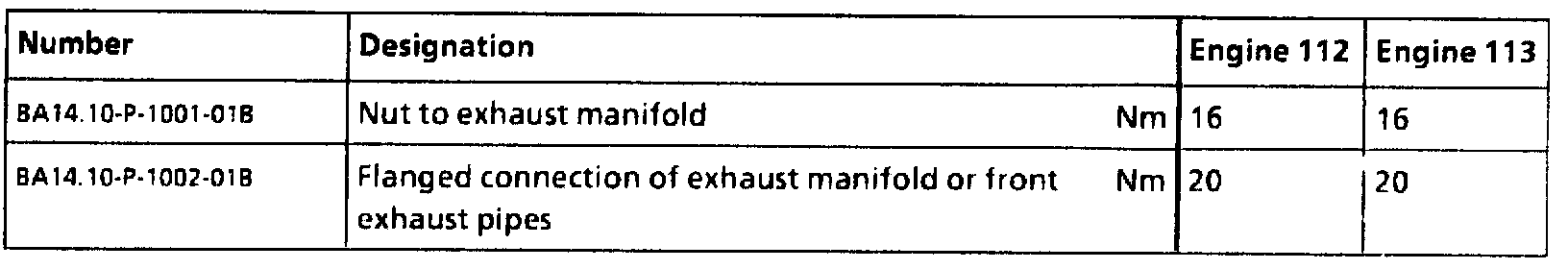

Exhaust manifold tightening specifications

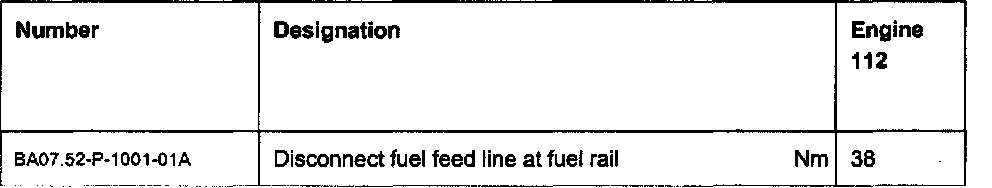

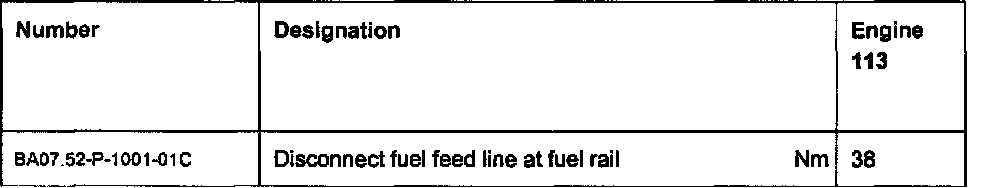

Fuel rail tightening specifications

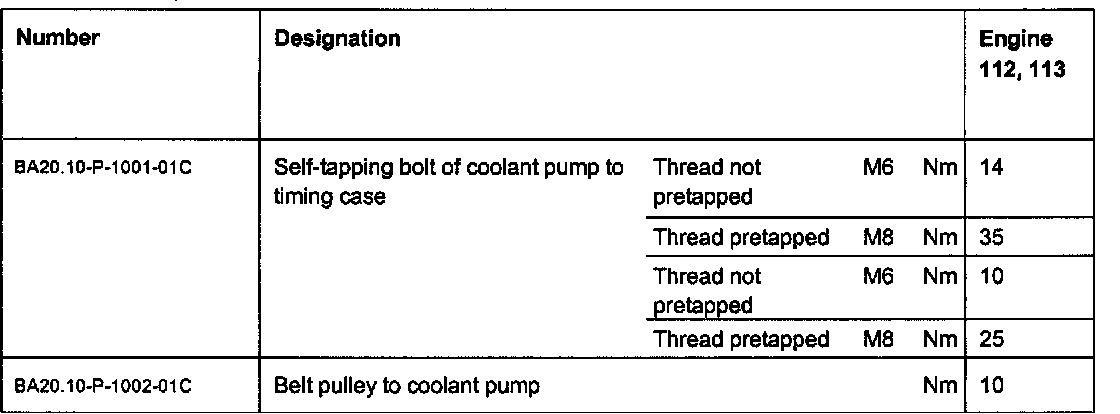

Coolant pump, coolant thermostat, tightening specifications





Flywheel, driven plate tightening specifications

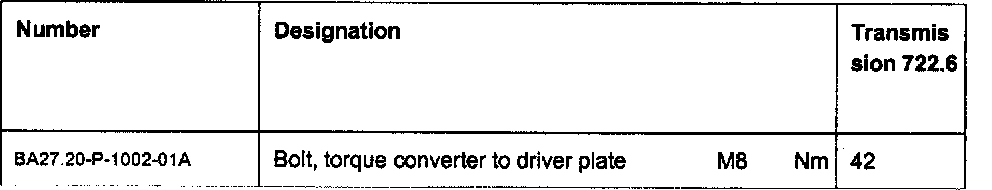

Torque converter tightening specifications

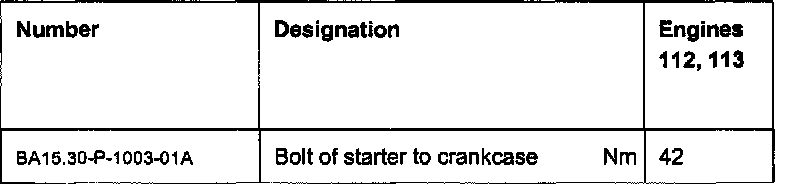

Starter Tightening Specifications

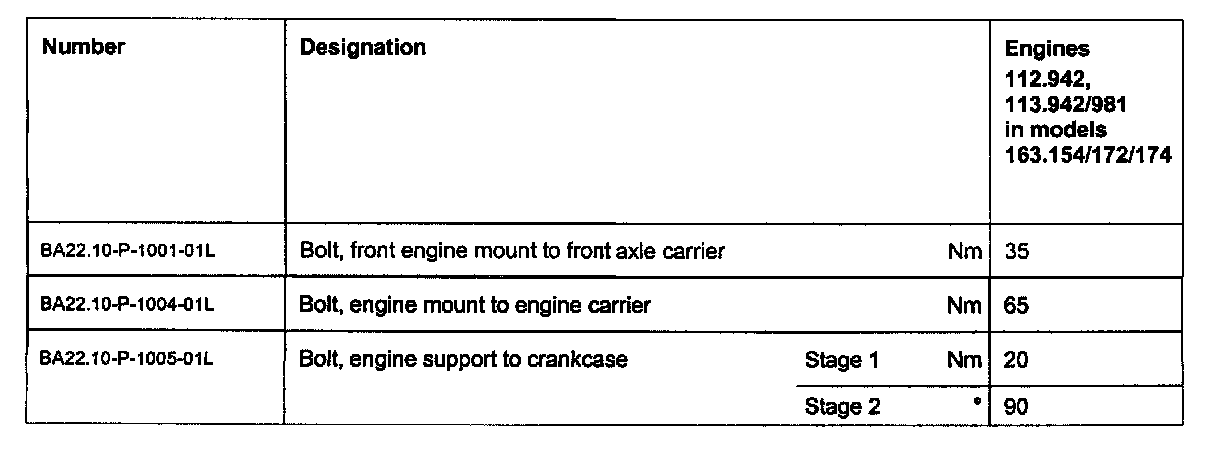

Engine mounts, engine supports tightening specifications

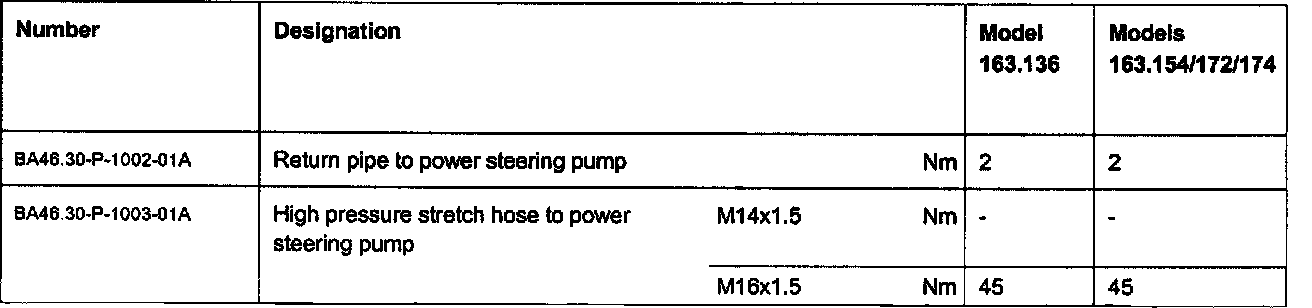

Power steering pump tightening specifications

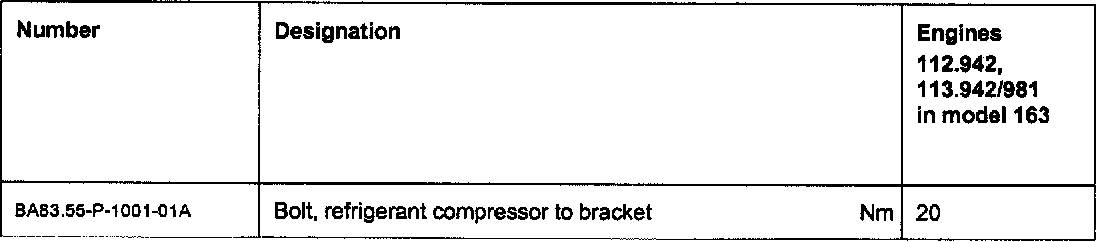

Refrigerant compressor tightening specifications






Crankshaft:

Bolt of crankshaft bearing cap M8:
1st stage 20 Nm
2nd stage 90°

Side bolt M8 30 Nm

Bolt of crankshaft bearing cap M10:
1st stage 30 Nm
2nd stage 90°
