Soft Top
MOVING COMPONENTS
When working on components which are moved by hand, by electric motor, by hydraulic or pneumatic means via a connecting mechanism. severe injury may be sustained as a result of severing. trapping or crushing of limbs.
During work in the area of the roll bar, there is a Task of serious injury should the roll bar suddenly deploy.
Extend the roll bar before working in the rollbar area. Keep parts of your body away from the range of travel of roll bar mechanism.
Refer to Hydraulic Test Program for additional important safety warnings and precautions. Hydraulic Test Program
Prerequisite for reading DTC memory
1. Fuses OK.
2. Battery voltage> 11 V.
3. Connect HHT according to connection diagram.
NOTE: The DTC's, actuations and actual values can be found under HHT menu for roll bar/soft top control module.
The electronic ignition-starter switch (N73) serves as an interface (gateway) between the roll bar (RB) control module (power soft top) (N52) and the Hand-Held Tester (HHT).
Note regarding DTCs
Current diagnostic trouble codes are high lighted in black on the display. Additional detailed fault information based on fault type is displayed with nearly all diagnostic codes (DTC's) such as:
> Ohm resistance too great
> Ohm resistance too low
[]+ short circuit to positive (POS)
[]- short circuit to ground (GND)
-//- open circuit

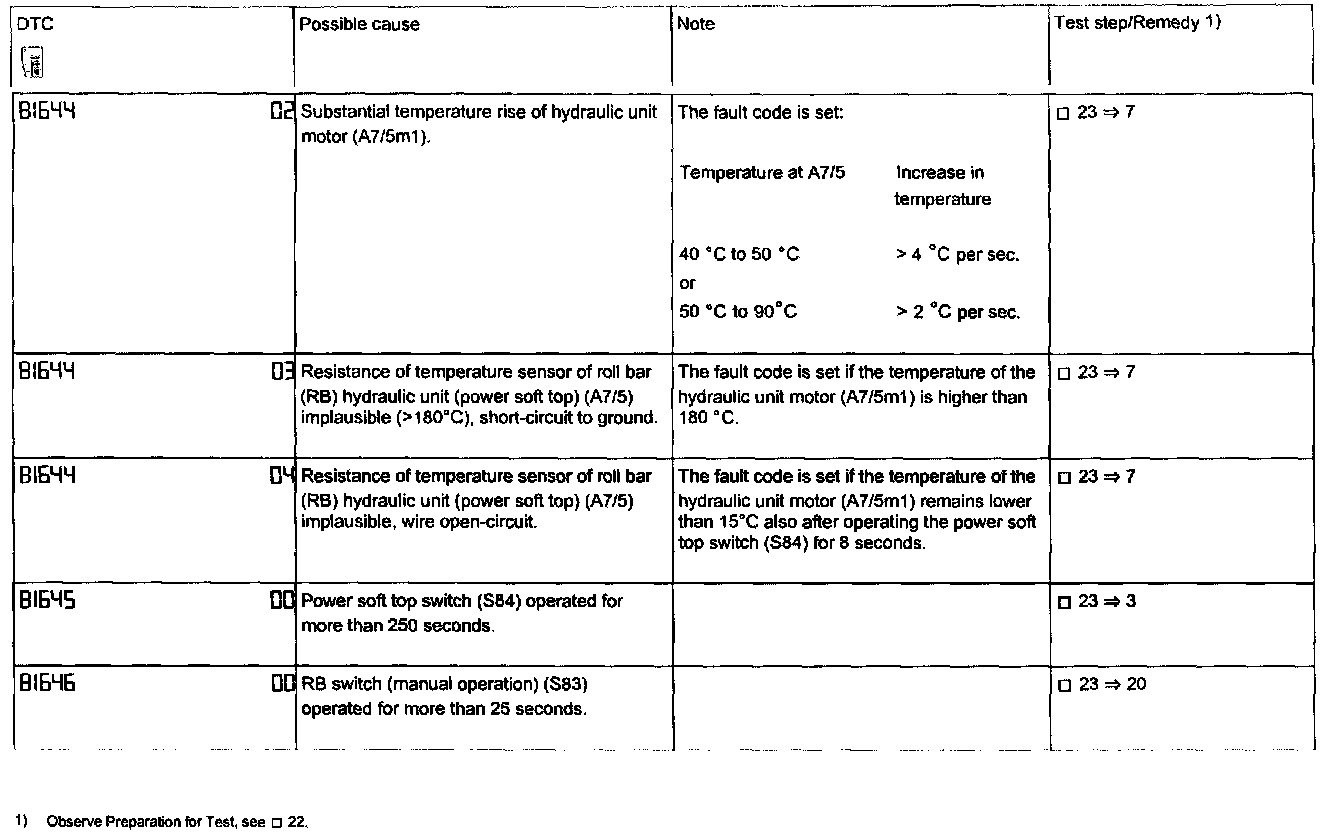

Diagnostic Trouble Codes
