Chassis Specific Locations

Motor Electronics (ME-SFI) Fuel Injection And Ignition System Arrangement Of Components

Model 202, 208




K27 Fuel pump relay
K40/4 Fuse and relay module, front-passenger side with:
k2 Start relay
k3 Air pump relay (only (USA) and low emission EURO3/4)
N3/10 ME control module
S40/3 Clutch pedal switch Idle speed control (only MT)
X11/4 Data link connector




B4/2 Fuel gage sensor, right half of tank
B4/3 Fuel tank pressure sensor (only (USA))
Y58/4 Activated charcoal canister shutoff valve (only (USA))
Y58/1 Purge control valve
77 Activated charcoal canister

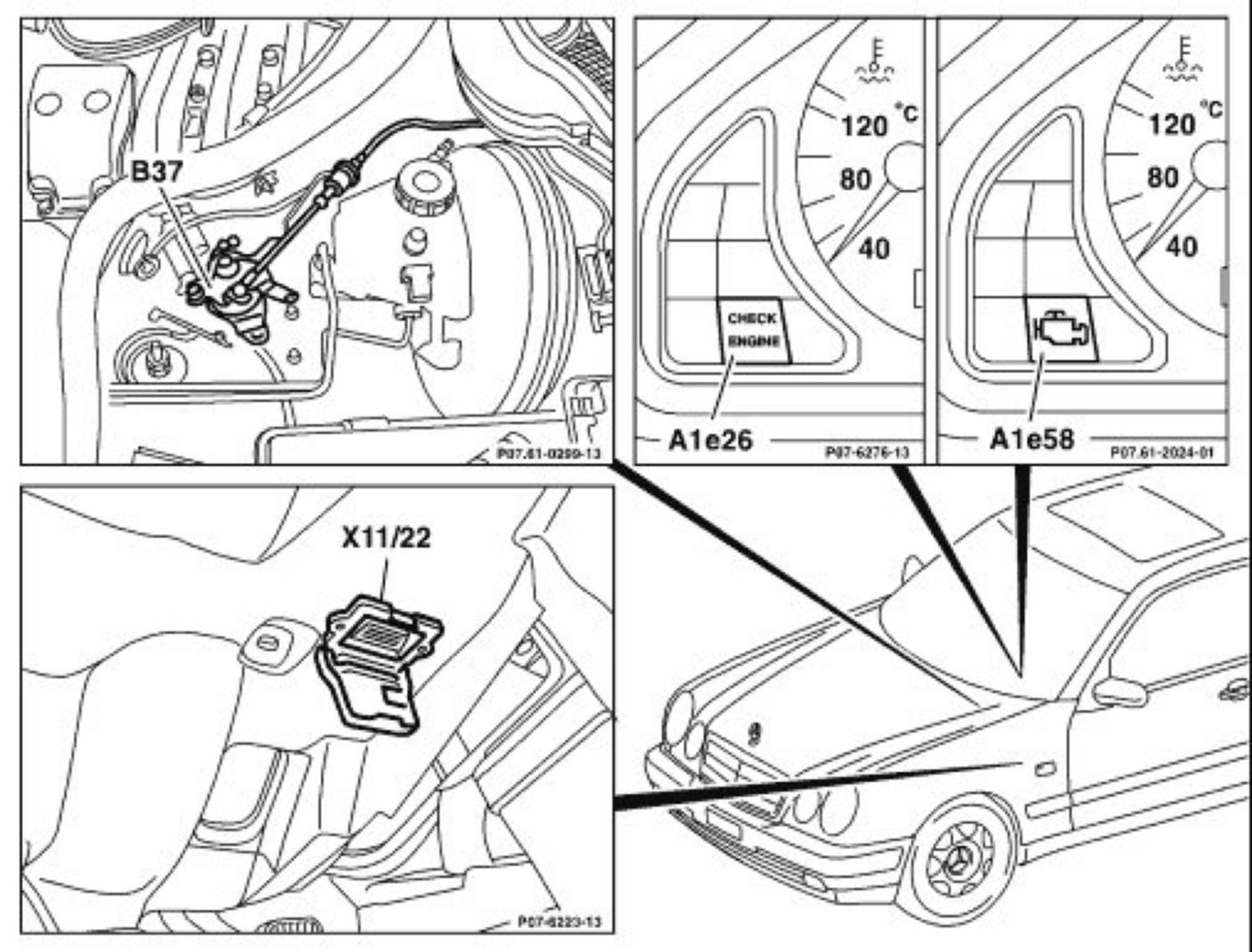

A1e26 CHECK ENGINE malfunction indicator lamp (only (USA))
A1e58 Engine diagnosis malfunction indicator lamp (only low emission EURO3/4)
B37 Pedal value sensor
X11/22 Data link connector II




Model 202, 208 with engine 111
B2/5 Hot film mass air flow sensor with intake air temperature sensor
G3/1 O2 sensor downstream of TWC (only (USA))
G3/2 O2 sensor upstream of TWC
Y58/1 Purge control valve

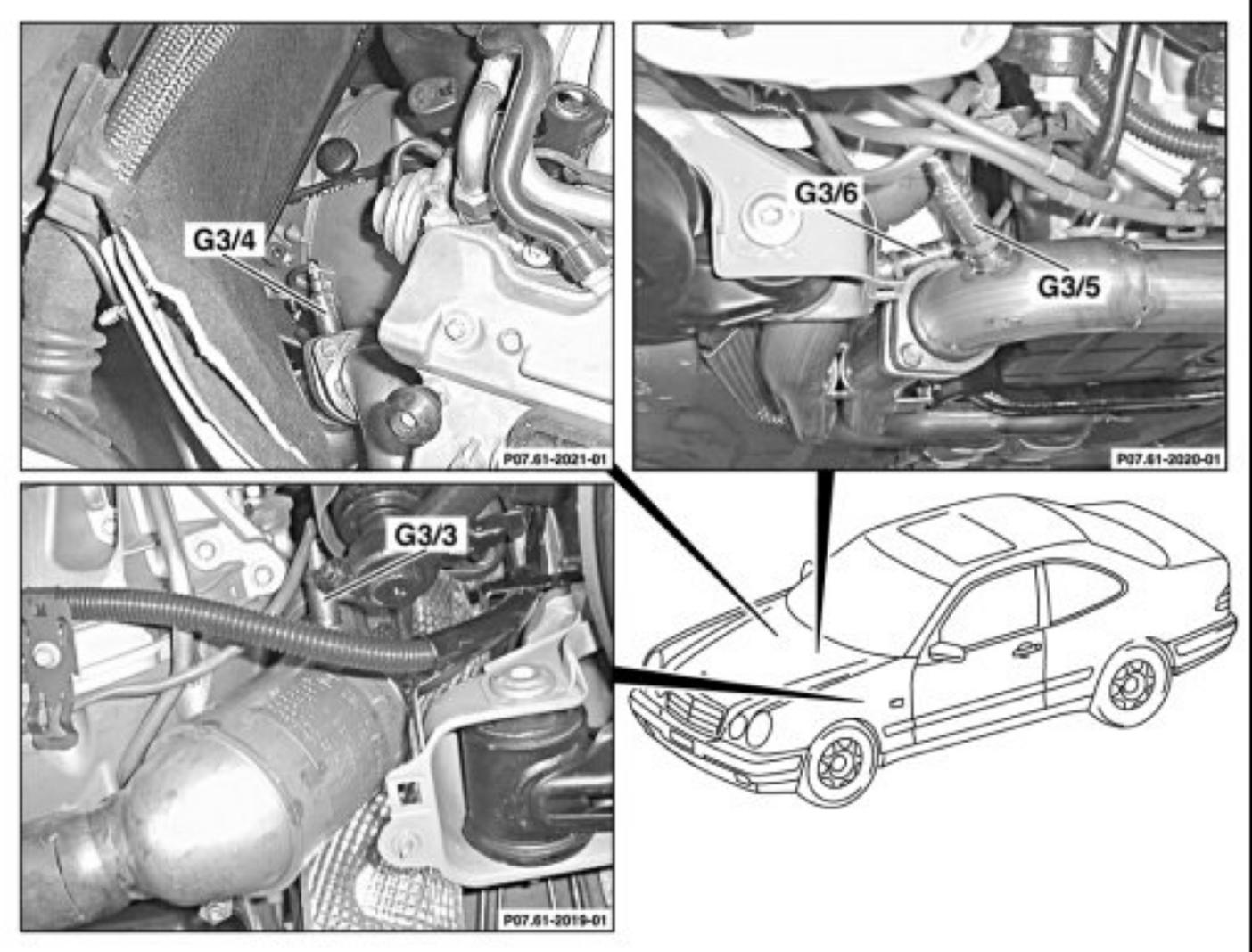

Model 202, 208 with engine 112
G3/3 Left O2 sensor upstream of TWC
G3/4 Right O2 sensor upstream of TWC
G3/5 Left O2 sensor downstream of TWC (only (USA) and low emission EURO3/4)
G3/6 Right O2 sensor downstream of TWC (only (USA) and low emission EURO3/4)




Model 208 with engine 113
G3/3 Left O2 sensor upstream of TWC
G3/4 Right O2 sensor upstream of TWC
G3/5 Left O2 sensor downstream of TWC (only (USA) and low emission EURO3/4)
G3/6 Right O2 sensor downstream of TWC (only (USA) and low emission EURO3/4)
