Drain Valve, Position/Task/Design/Function

Drain Valve, Position/Task/Design/Function

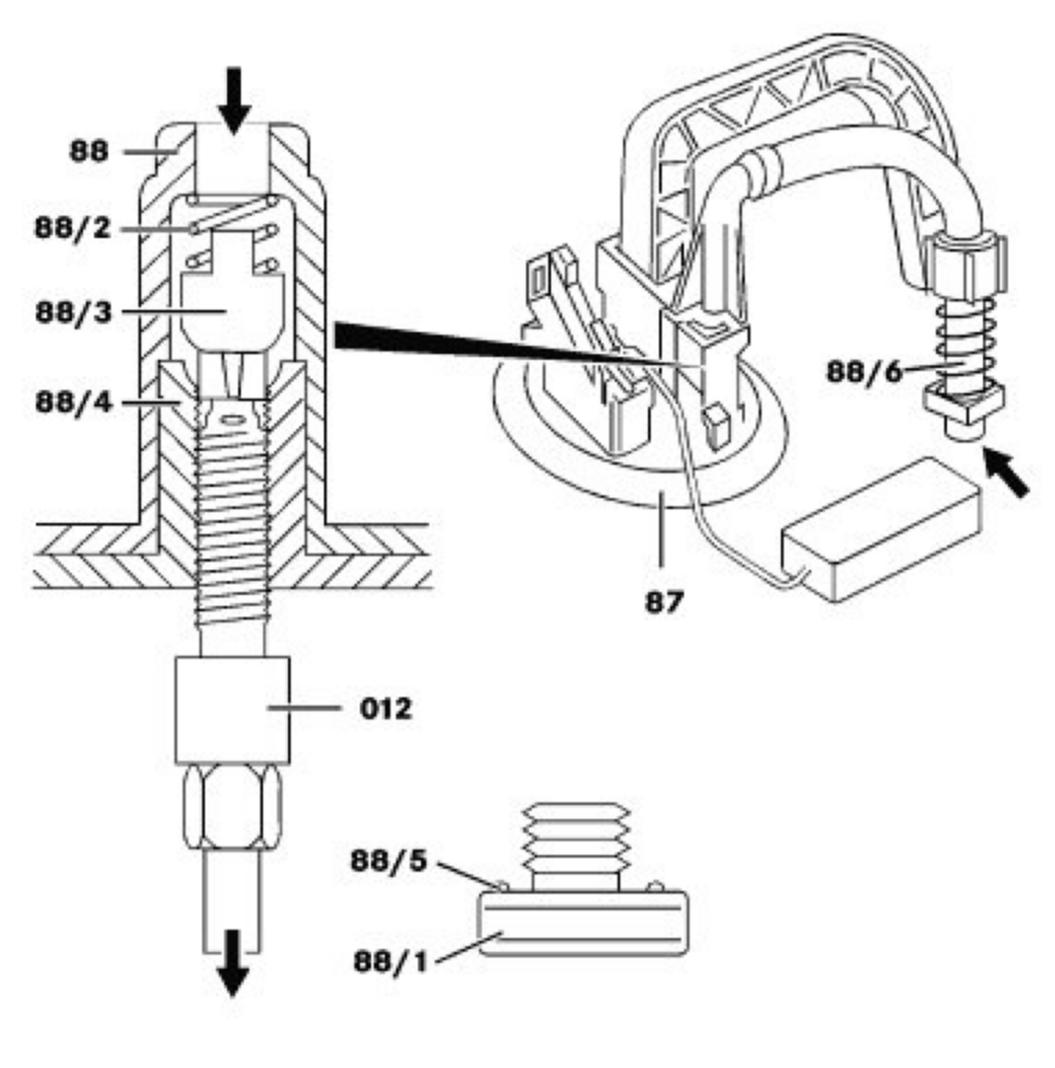

Drain Valve Position/Design



012 Drain hose (special tool)
87 Blanking plate, right
88 Drain valve
88/1 Screw plug
88/2 Spring
88/3 Valve
88/4 Valve seat
88/5 Sealing ring
88/6 Intake pipe

Drain Valve Task
To enable the two fuel tank chambers to be emptied.

Drain Valve Function
The valve is pressed on by screwing in the drain hose (012, special tool).

Note: The fuel tank can only be emptied via the two drain valves (88).
