B1.3 - Interior Compartment (Cockpit)

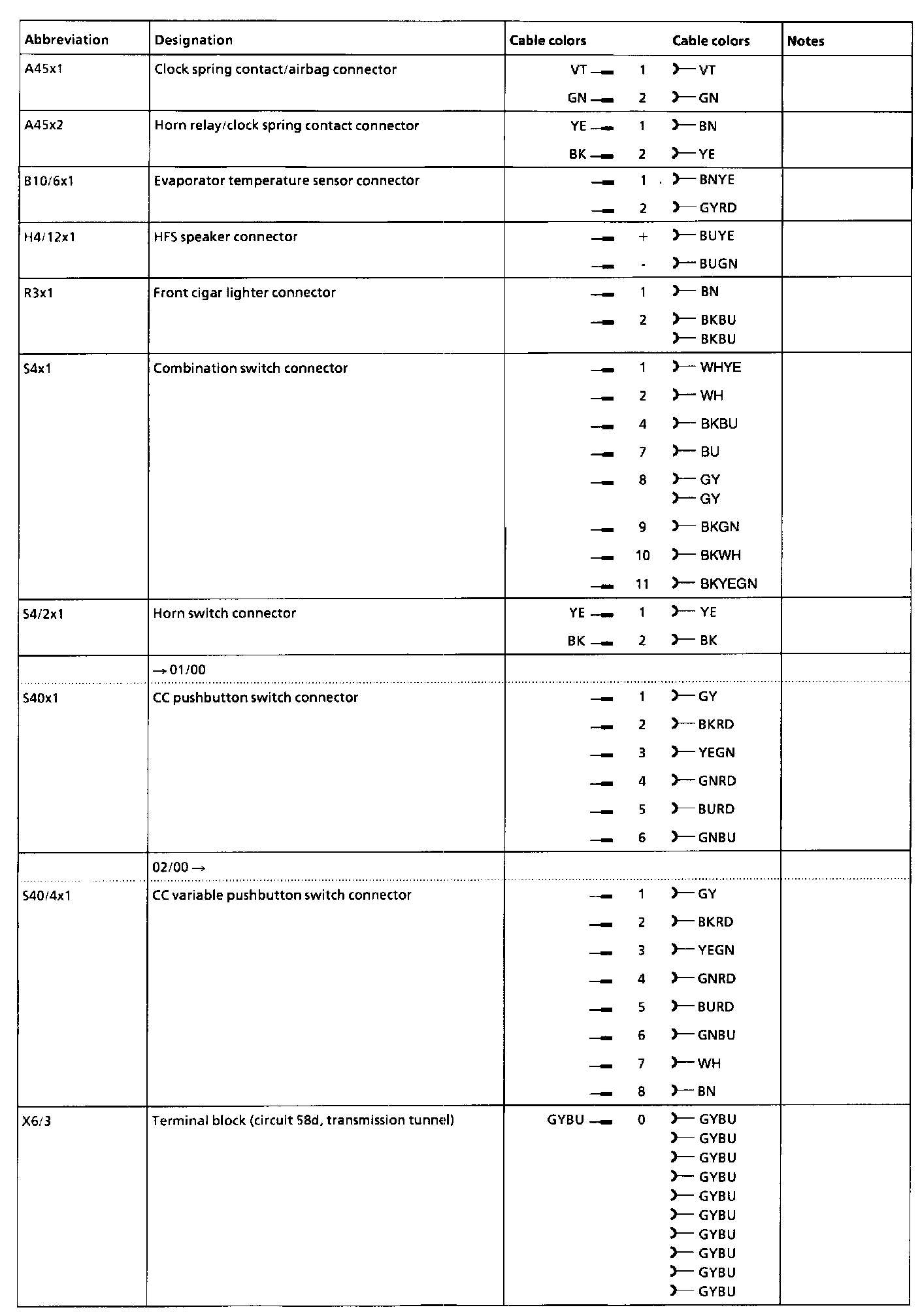

Arrangement and assignment of the wiring and plug connectors, interior compartment (cockpit)

Arrangement









Assignment

A45x1 - X6/3:





X11/22 - X39/5:
