AR68.10-P-1200M Remove/Install Glove Compartment Cover

AR68.10-P-1200M Remove/Install Glove Compartment Cover












Removal, installation

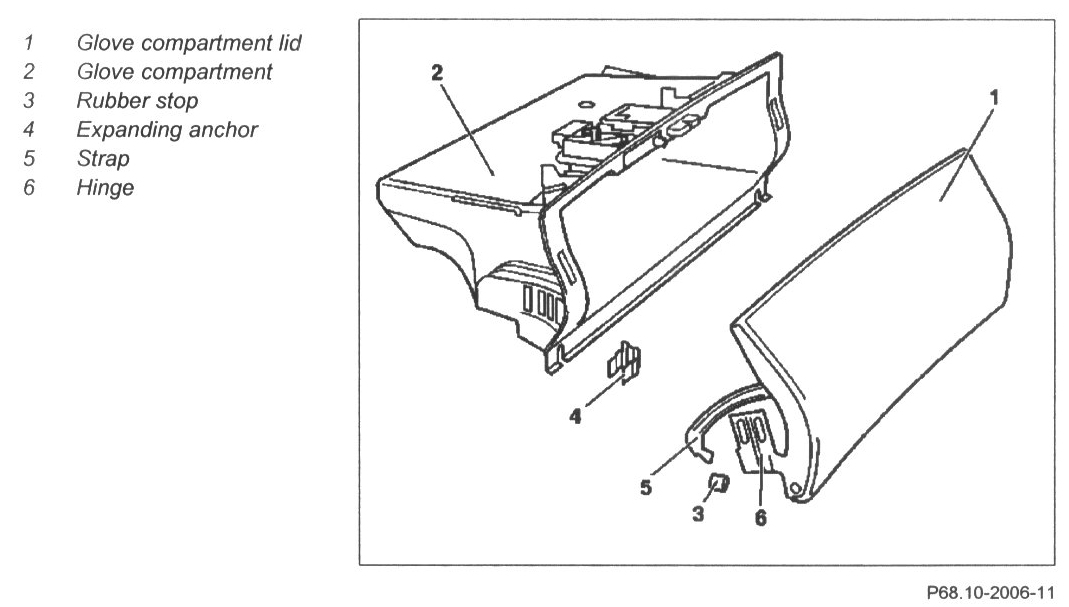

1 Remove glove compartment (2)
2 Unclip damping strip (8) on right from strap (5), (arrow) on glove compartment lid (1)
3 Remove rubber stops (3) from strap (5)
4 Pull expanding anchor (4) out of glove compartment (2)

NOTE: Pull expanding anchor out of glove compartment from inside

5 Remove glove compartment lid (1) together with hinges (6) uniformly downward
6 Install in opposite order
7 Adjust glove compartment lid.
