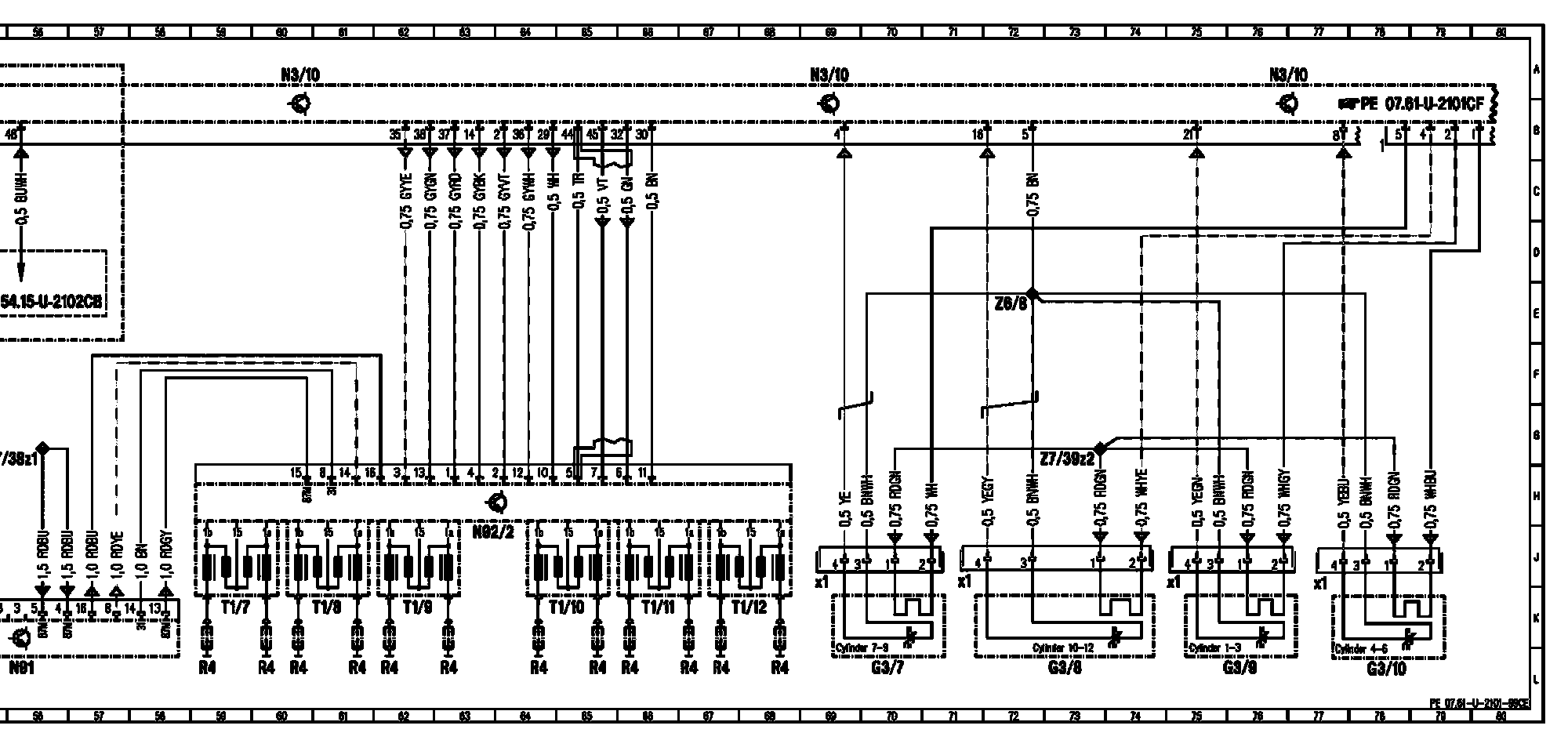

PE07.61-U-2101CE ME-SFI Fuel Injection and Ignition System Control Module



PE07.61-U-2101CE ME-SFI Fuel Injection and Ignition System Control Module
Engine 137 as of 06/01/00 in Model 215
ME 2.7, Control Module N3/10, Sheet 1
