PE54.10-U-2000CB Battery, Power Supply
PE54.10-U-2000CB Battery, Power Supply
PE54.10-U-2000CB Battery, Power Supply

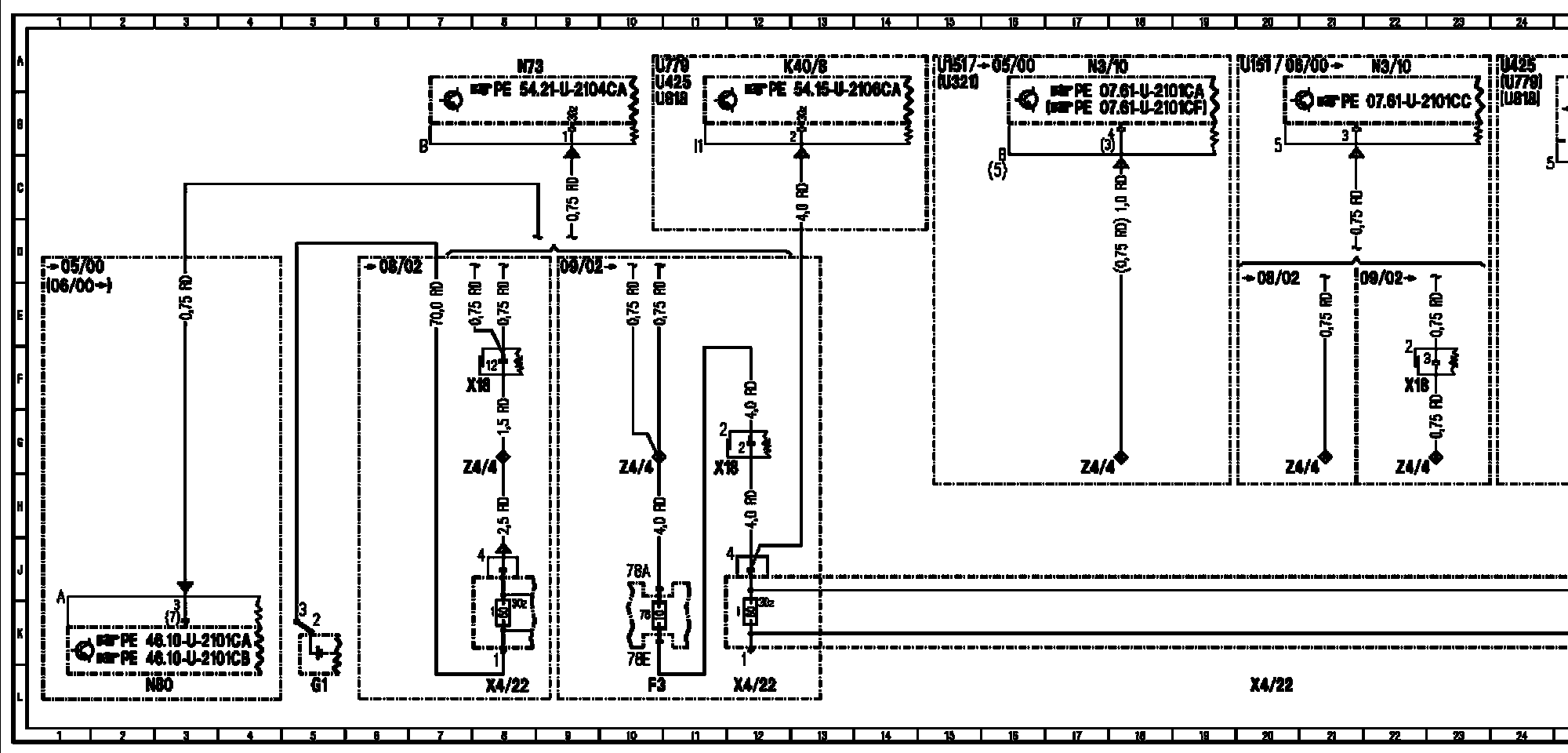

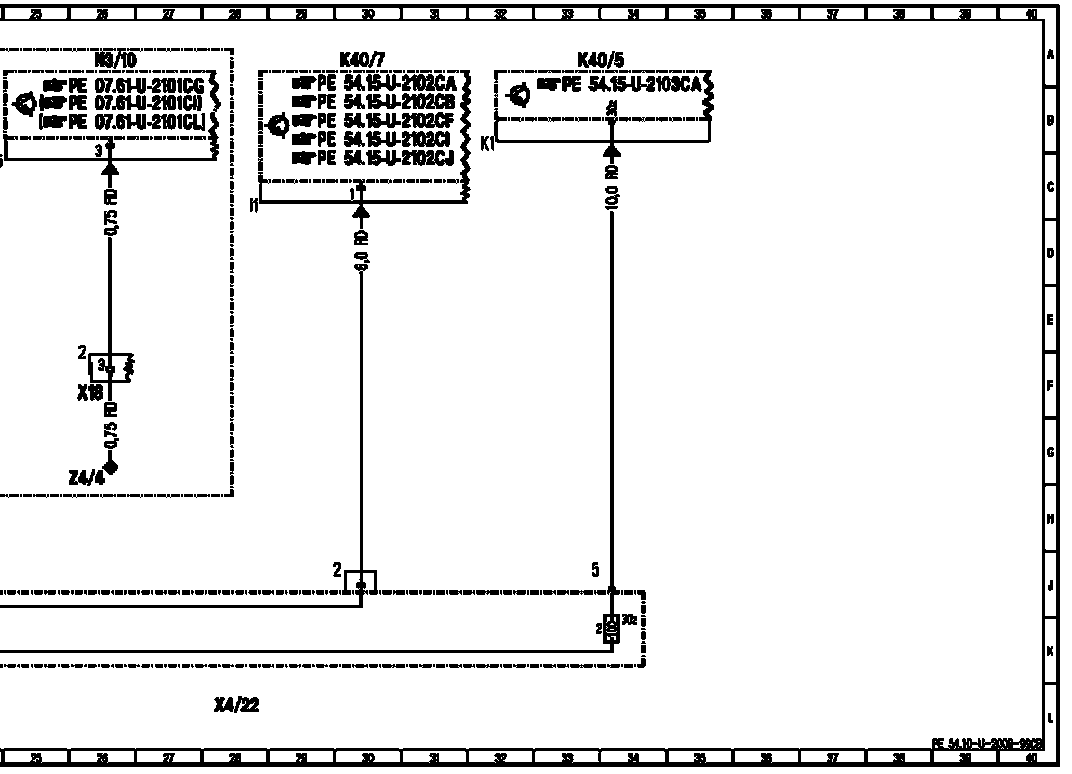

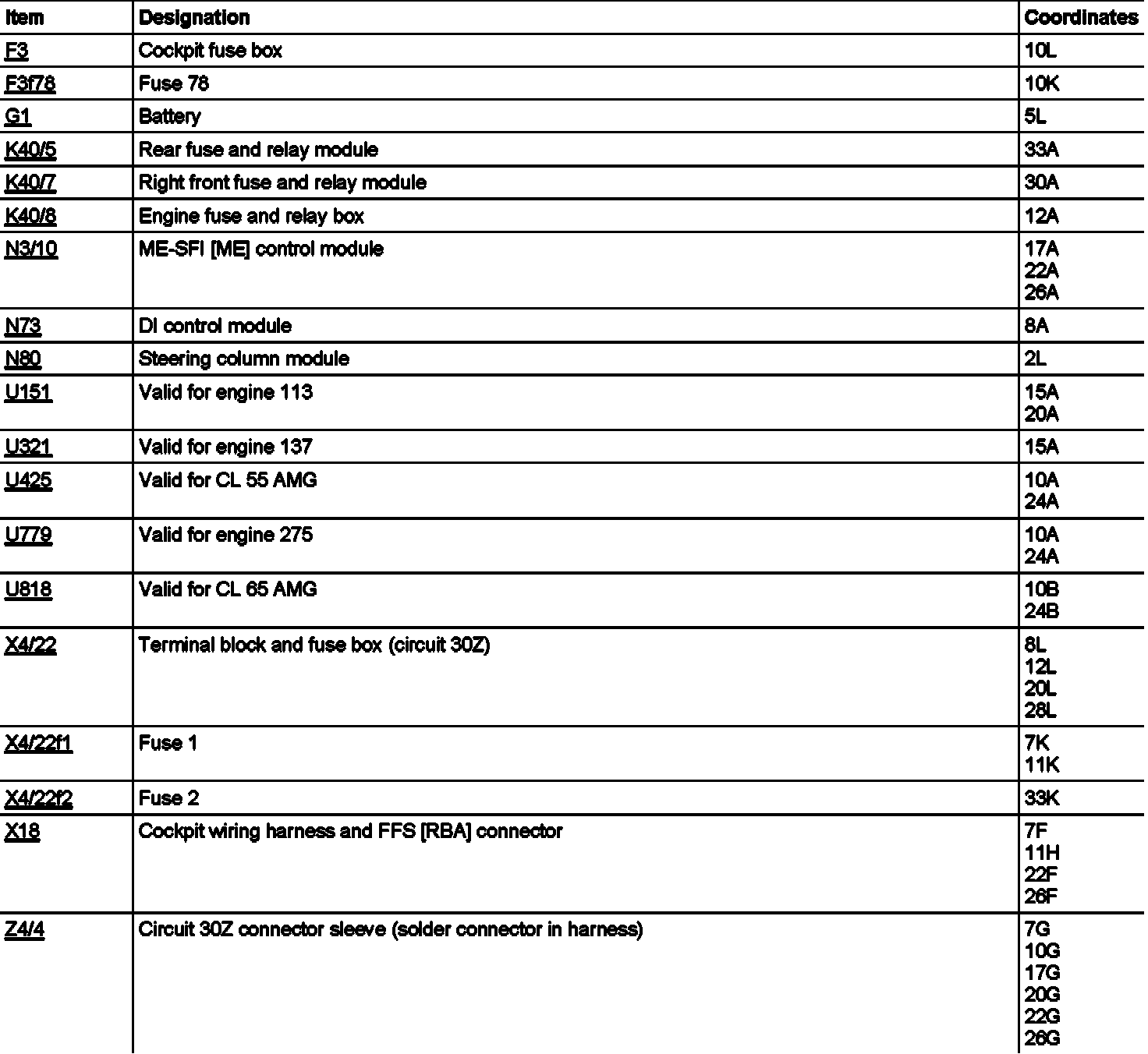

Circuit 30 terminal block and fuse box, X4/22
Sheet 2
