Body - License Plate Bracket Installation Precautions

Date: September 26, 2012

Order No.: S-B-88.30/88

Group: 88

SUBJECT: MY-All, Models All

License Plate Bracket

To avoid seized license plate bolts on the trunk lid, only use the screw in Parts Information below. Use this part with a riveted nut.

Carefully ensure that the screw/bolt is tightened to a torque of 4 Nm.

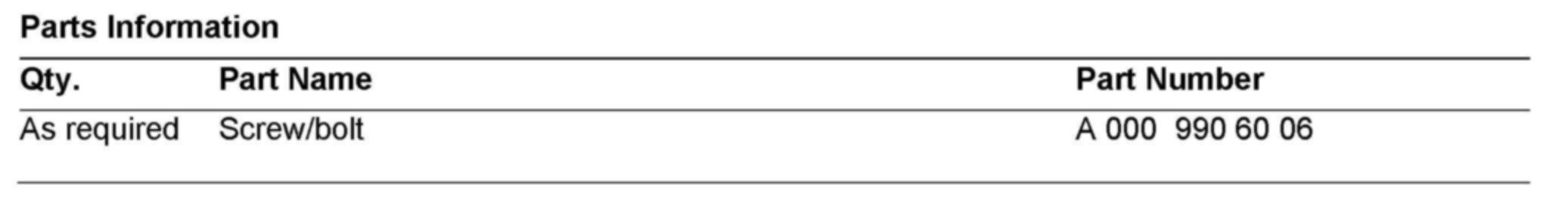

Parts Information
