ASR V Control Unit, Design

ASR V Control Unit, Design

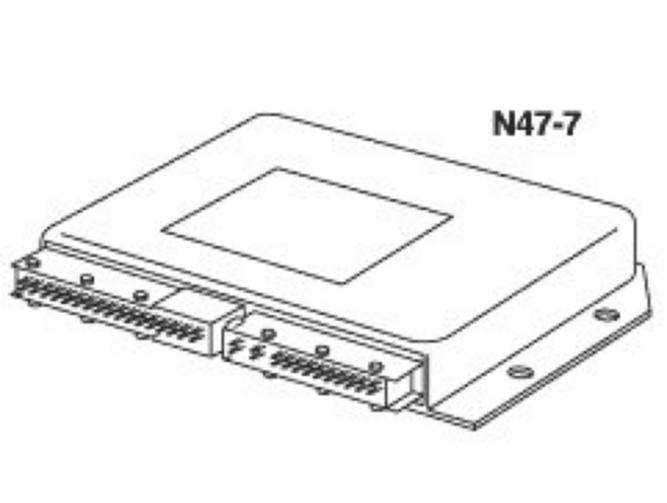

N47-1 ASR control module (SK16)
N47-2 ETS control module (SK16)
Models 129, 140 (module box)




N47-1 ASR control module (LK55)
N47-2 ETS control module (LK55)
Model 202 (front passenger-side footwell)
Model 210 (control module box)




N47-1 ASR control module (LK55/1)
N47-2 ETS control module (LK55/1)

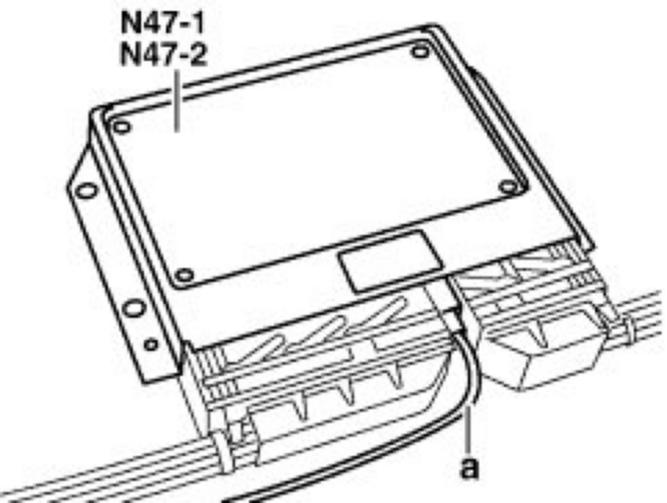

a CAN data bus
Models 129, 140 163, 168, 170, 208, 210 (control module box)
Model 202 (front passenger-side footwell or control module box)



There are many versions of the ASR/ETS control module. They can be identified by the housing (e.g. SK16).
- SK16 housing
Models 129, 140 with module box
- LK55 housing
Model 202, up to 08/95
Models 210.004/010/020/035/037 up to 05/96
Models 210.053/055 (except (J) (USA))
Model 210.055 ((J) (USA) model year 96)
- LK55/1 housing (shortened housing on vehicles without SPS as of 06/96)
Model 202, as of 09/95.
Models 210.004/010/020/035/037 as of 06/96
Model 210.055 ((J) (USA) as of model year 97)
All other models 210 as of start of production
Models 163, 168, 170, 208 as of start of production
Models 129, 140 with control module box
