Activated Charcoal Canister Shutoff Valve, Task




Activated Charcoal Canister Shutoff Valve, Task

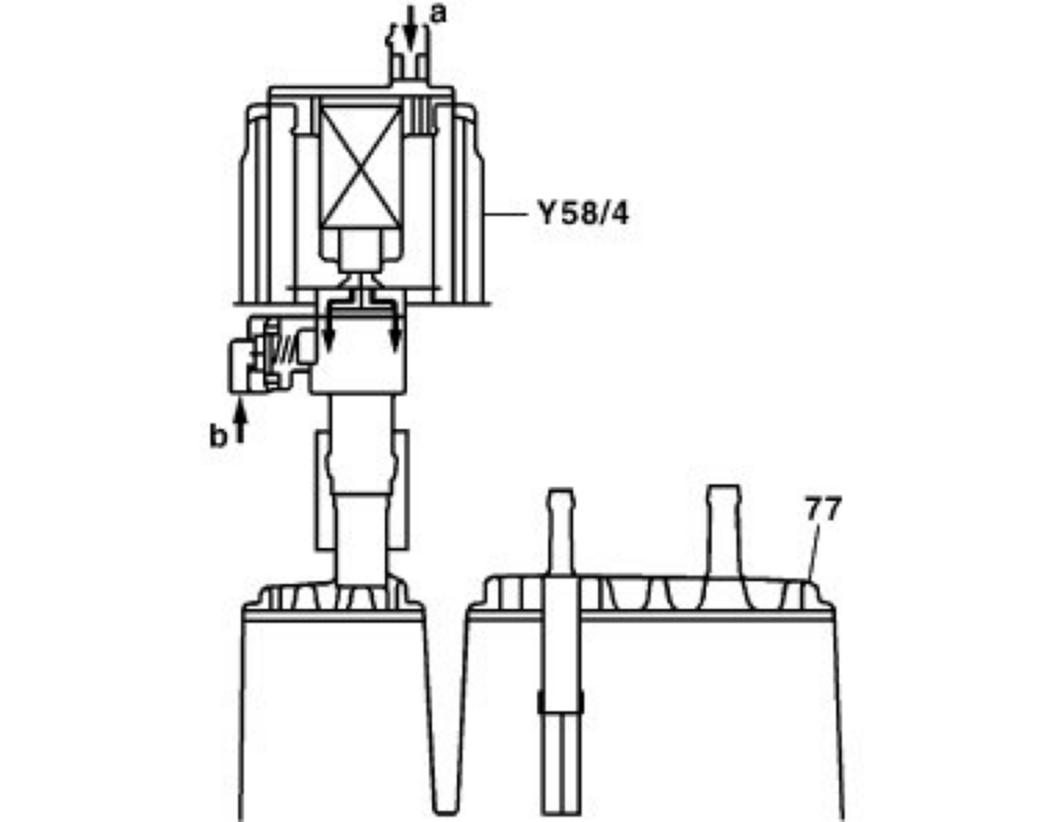

Shown in the design of model 210
77 Activated charcoal canister
Y58/4 Activated charcoal canister shutoff valve
A Ventilation via the shutoff valve
B Ventilation via the safety valve

Close the ventilation of the activated charcoal canister for a leakage test of the fuel system.
