Spring Actuator

Spring Actuator













TASK
Used to compensate for the constantly changing oil pressure during spring deflection and rebound movements of the suspension.

DESIGN

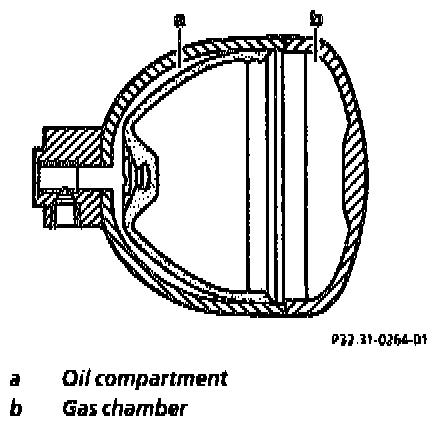

Spherical steel reservoir with oil chamber (a) and gas chamber (by separated by a diaphragm. The gas chamber is filled to a specific pressure.

FUNCTION
Due to the constantly changing oil pressure in the system while driving, e.g. during spring deflection and rebound movements of the suspension, the diaphragm adapts itself to the required chamber volume of the oil in each case. In this process the diaphragm deforms in the spherical housing of the spring actuator.

LOCATION

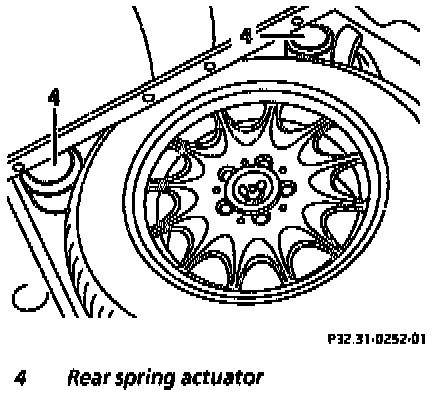

Rigidly screwed to the body close to the respective spring strut.
