GF27.60-P-5102-04G Isolating Mechanism For D-4 Shift, Function

GF27.60-P-5102-04G Isolating mechanism for D-4 shift, function
- TRANSMISSION 722.6 in MODELS 163, 170, 202, 208, 210
- without touch shift
- TRANSMISSION 722.6 in MODELS 129, 140

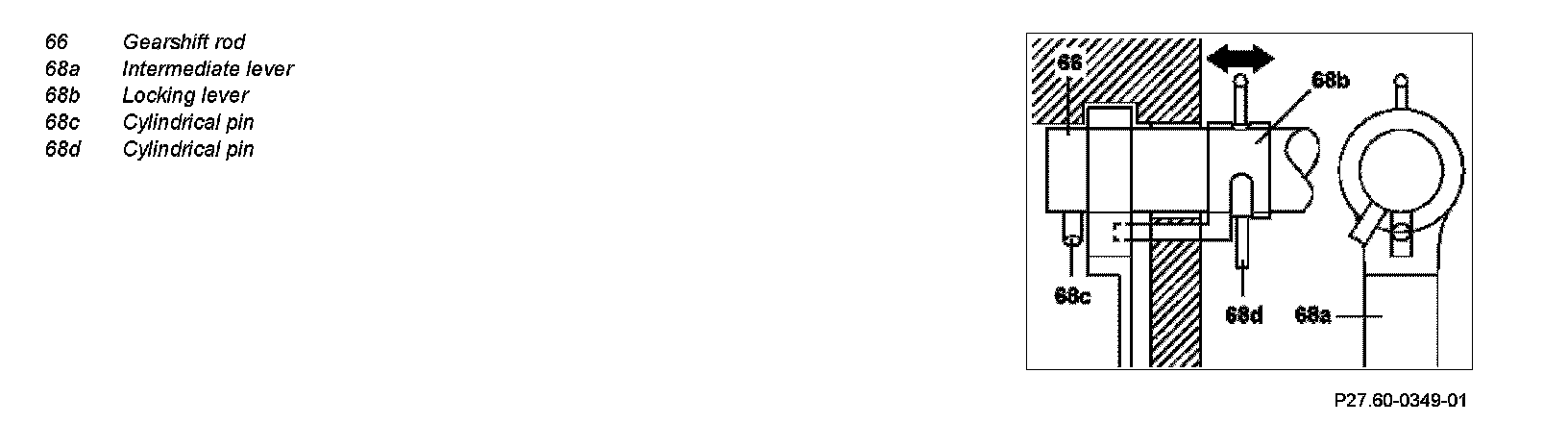

Component Identification:

Operation
When the selector lever is moved across from "D" to "4", the shift shaft (66) is moved axially to the left and the straight pin (68c) is thus pushed out of the intermediate lever (68a). At the same time the lock lever (68b) is pushed into the recess in the intermediate lever (68a). The locking lever (68b) locks the intermediate lever (68a).

This fixes the shift rod in selector lever position "D". The straight pin (68d) fixes the lock lever (68b) on the shift shaft (66) and projects into a recess in the guide plate. This recess allows the shift shaft (66) to be moved in the transverse direction only when the selector lever is in position "D".
