Shift Valve Pressure Regulating Valve

LOCATION
- In the slide housing of the electrohydraulic control unit.

TASK
- To control the shift valve pressure (p-SV)

FUNCTION

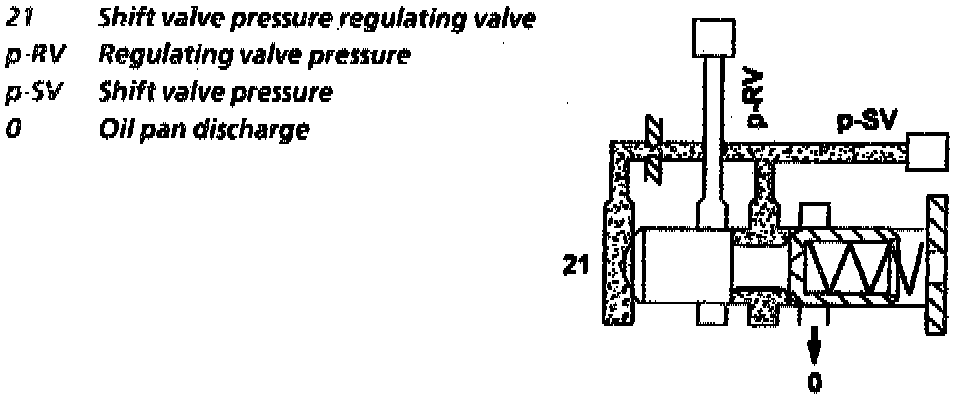

- The variable regulating valve pressure (p-RV) is regulated to a constant shift valve pressure (p-SV) at the shift valve pressure regulating valve (21) and used to supply the upshift/downshift solenoid valves and the Pulse With Modulation (PWM) solenoid valve for the torque converter lock-up clutch.

Also Refer To:
- Upshift/downshift Solenoid Valve. Upshift/Downshift Solenoid Valve
- PWM Solenoid Valve, Torque Converter Lock-up Clutch. Pulse Width Modulation (PWM) Solenoid Valve, Lock-Up Clutch
- Location Of Hydraulic Components. Automatic Transmission, Location of Hydraulic Components
