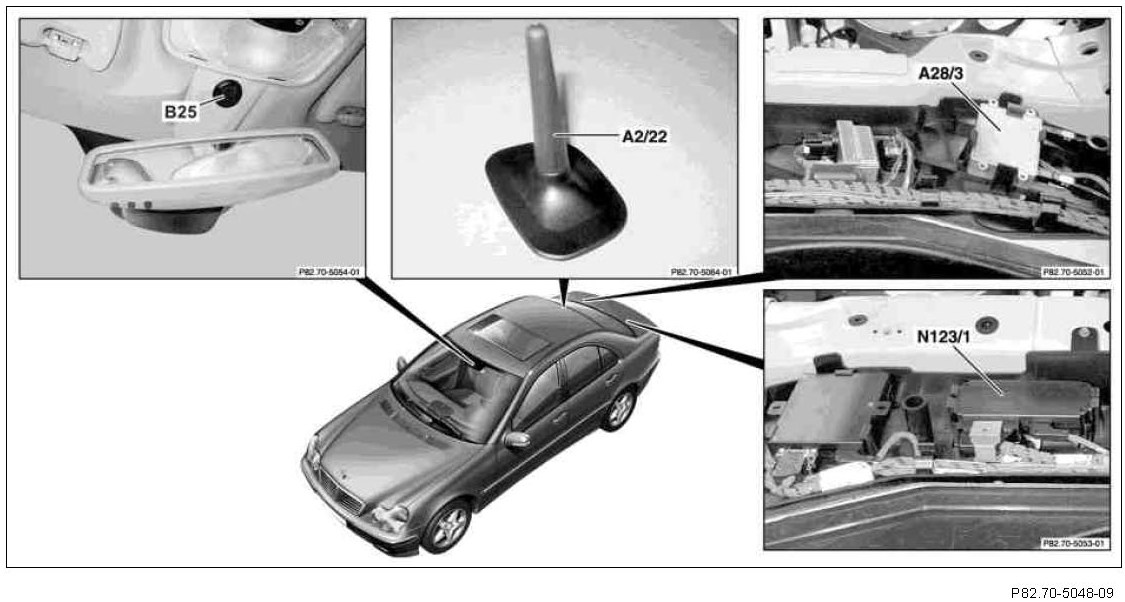

GF82.70-P-0004-01P Universal Portable CTEL Interface (UPCI), Location of Components

GF82.70-P-0004-01P Universal Portable CTEL Interface (UPCI), Location Of Components
MODEL 203.0 /2 /7 up to 23.4.04
- with CODE (388) "Portable CTEL" UPCI telephone system







A2/22 Telephone antenna
A28/3 E-network compensator
B25 Hands-free system microphone
N123/1 UPCI control module (Universal Portable CTEL Interface)
