Function Diagrams



Function Diagram For TELE AID Emergency Call System PE82.95-U-2050FA
- with CODE (348) EMERGENCY CALL system

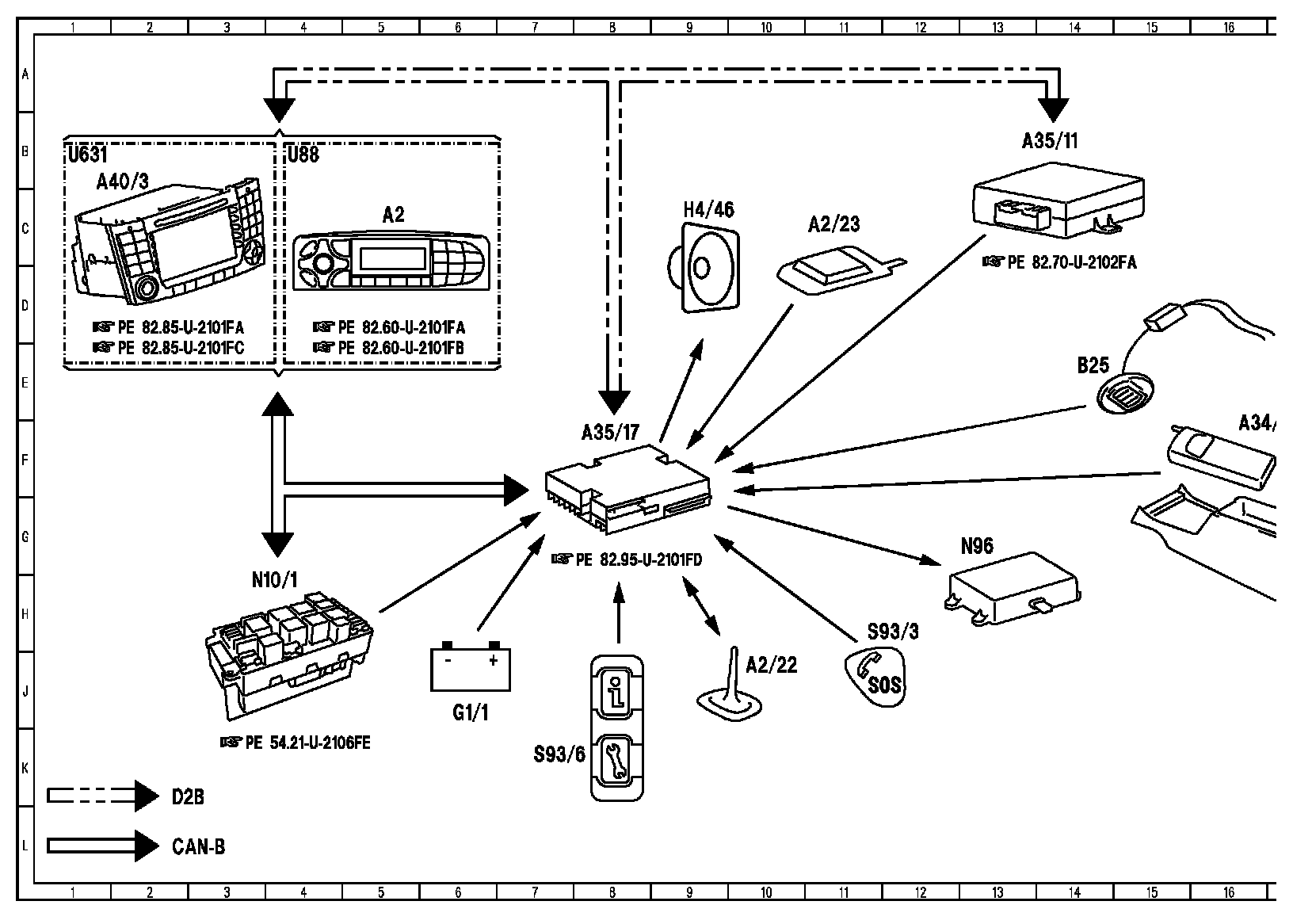

Function Diagram, Part 1:

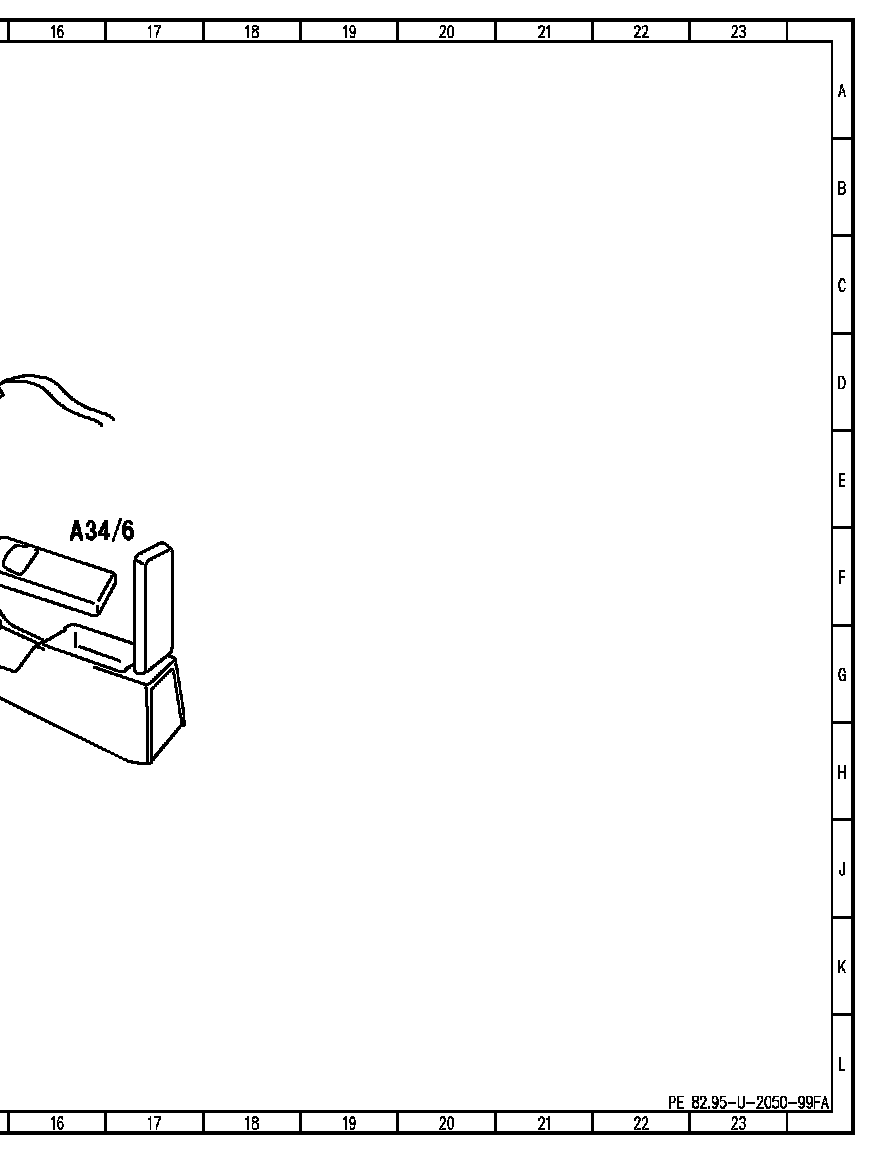

Function Diagram, Part 2:

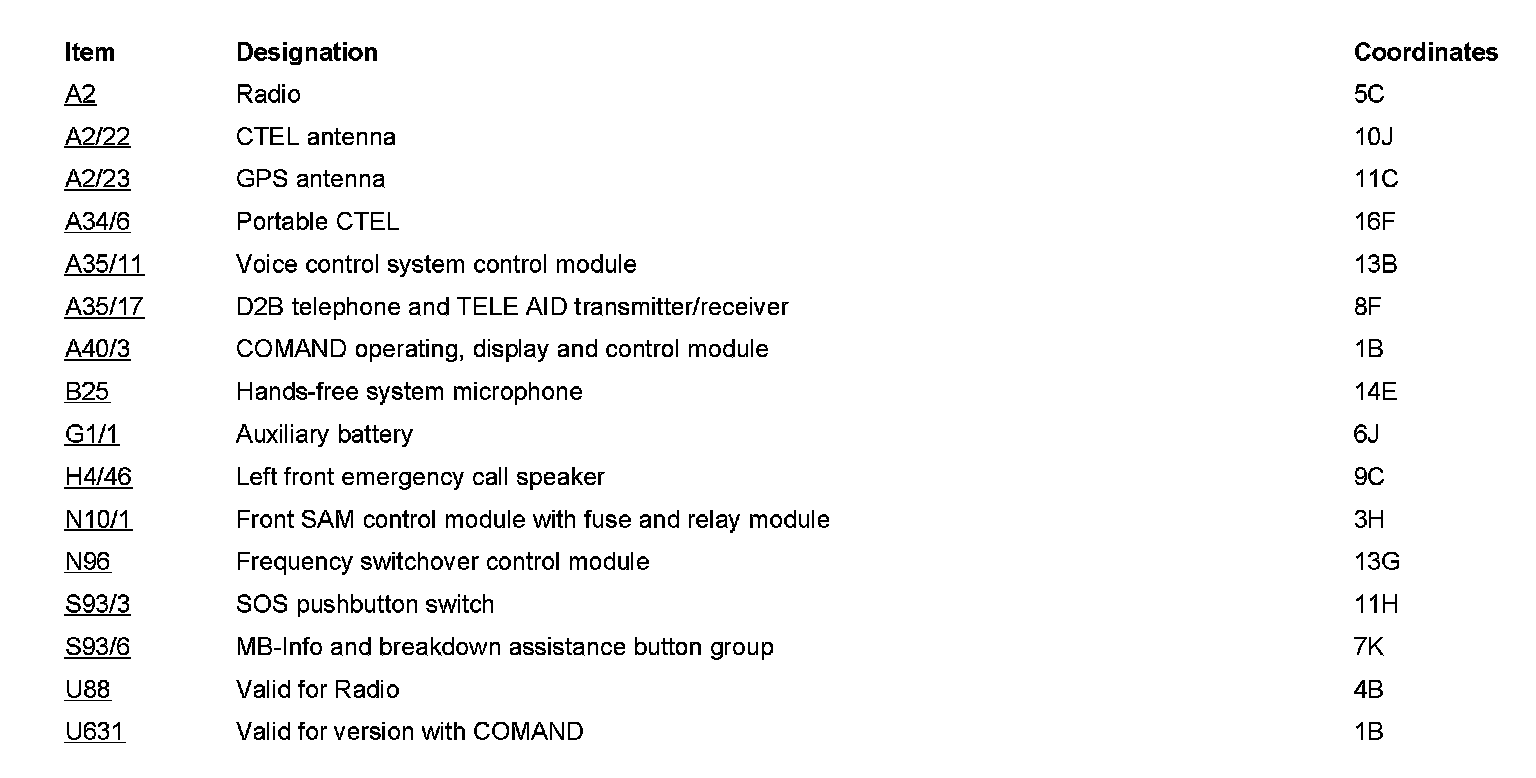

Component Description/Coordinates, A2 To U631:






Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
