Function Diagram, Seat Adjustment (ESV) PE91.29-U-2050FA



Function Diagram, Seat Adjustment (ESV) PE91.29-U-2050FA
- with memory

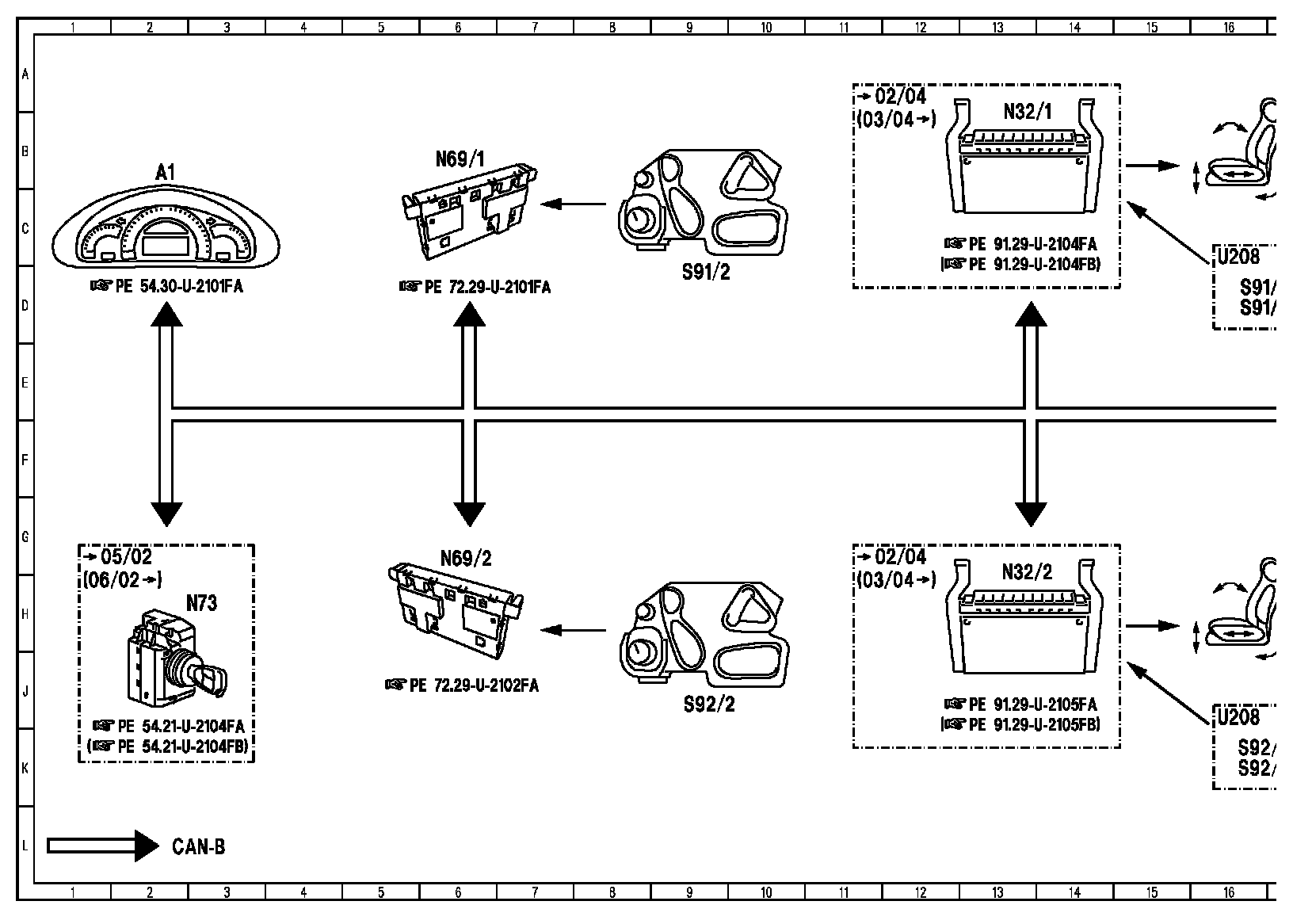

Function Diagram, Part 1:

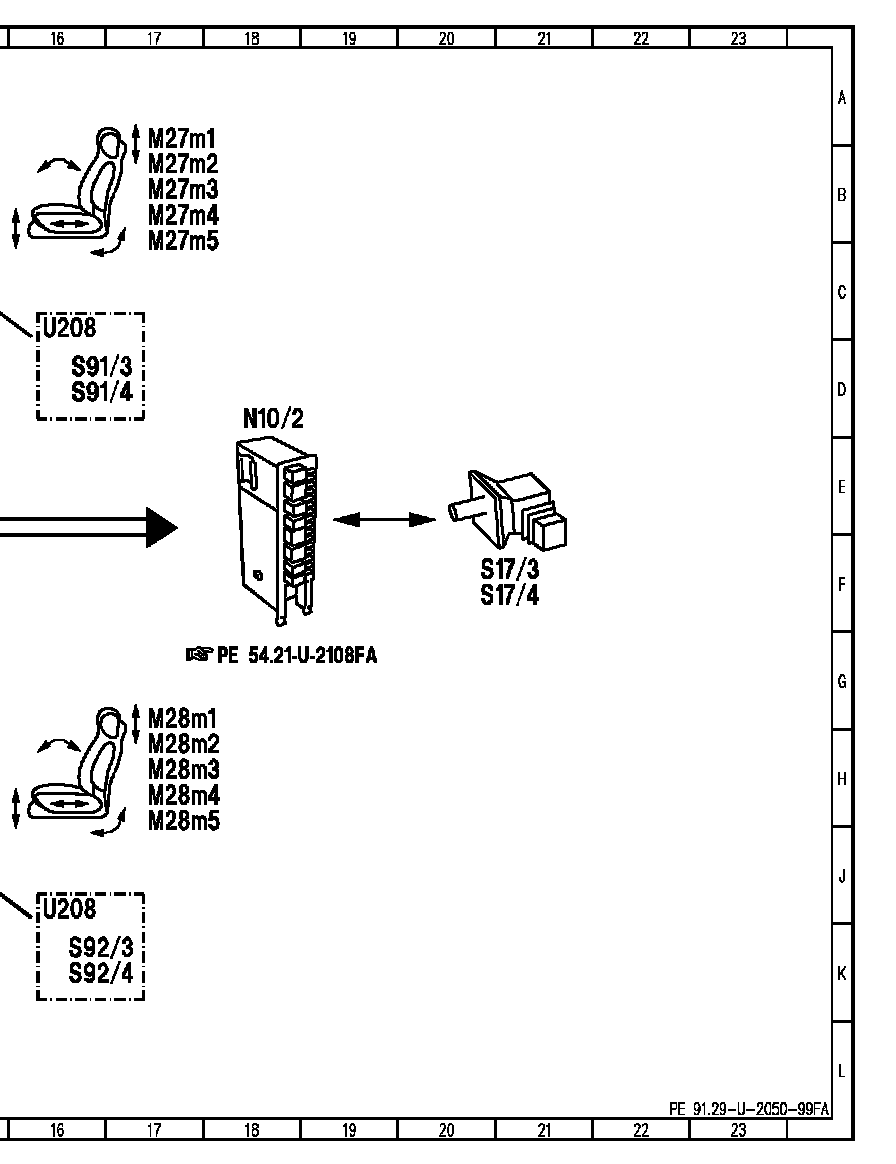

Function Diagram, Part 2:

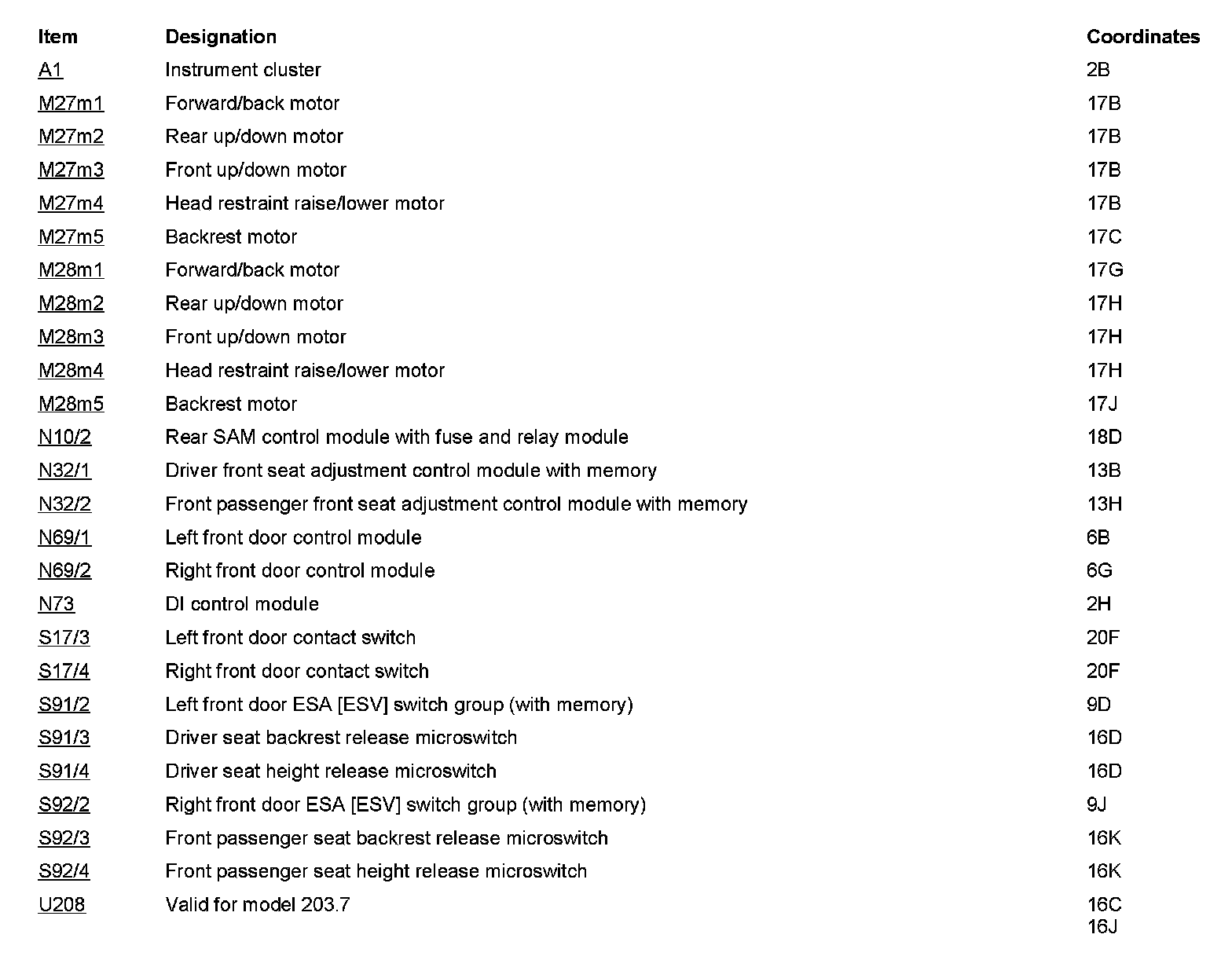

Component Description/Coordinates, A1 To U208:






Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
