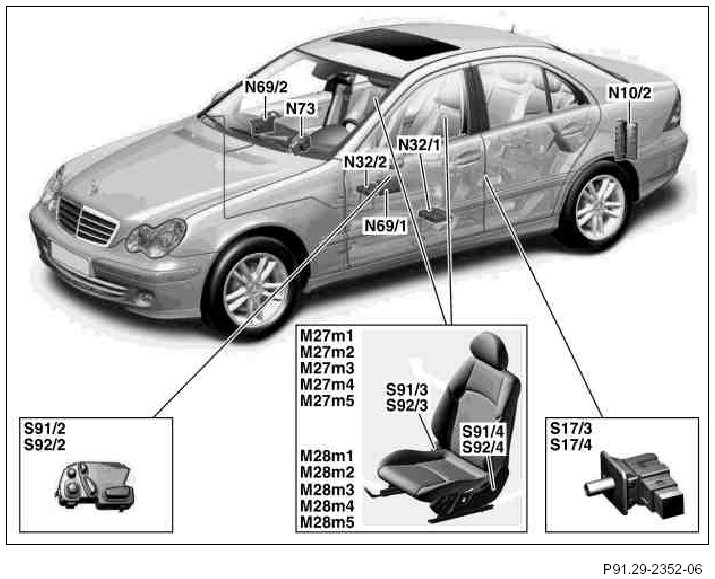

GF91.29-P-0004-01PP Electric Seat Adjustment (ESA), Location of Components

GF91.29-P-0004-01PP Electric Seat Adjustment (ESA), Location Of Components

Illustrated on model 203.0 as of 24.4.04







M27m1 Fore/aft motor
M27m2 Rear up/down motor
M27m3 Front up/down motor
M27m4 Head restraint up/down motor
M27m5 Backrest motor
M28m1 Fore/aft motor (for code (242b) front passenger seat electrically adjustable with memory)
M28m2 Motor backward, raise and lower (for code (242b) front passenger seat electrically adjustable with memory)
M28m3 Motor forward, raise and lower (for code (242b) front passenger seat electrically adjustable with memory)
M28m4 Motor for head restraint, raise and lower (for code (242b) front passenger seat electrically adjustable with memory)
M28m5 Backrest motor (for code (242b) front passenger seat electrically adjustable with memory)
N10/2 Rear SAM control unit with fuse and relay module
N32/1 Driver front seat adjustment control unit with memory
N32/2 Passenger-side front seat adjustment control unit with memory (for code (242b) front passenger seat electrically adjustable with memory)
N69/1 Left front door control unit
N69/2 Right front door control unit
N73 DI control unit
S17/3 Left front door contact switch
S17/4 Right front door contact switch
S91/2 Left front door ESA switch group (with memory)
S91/3 Driver seat backrest release microswitch (for model 203.7)
S91/4 Driver seat height release microswitch (for model 203.7)
S92/2 Seat adjustment switch group for right front door (memory) (for code (242b) front passenger seat electrically adjustable with memory)
S92/3 Front passenger seat backrest release microswitch (for model 203.7 with code (242b) front passenger seat electrically adjustable with memory)
S92/4 Front passenger seat height release microswitch (for model 203.7 with code (242b) front passenger seat electrically adjustable with memory)
