Function Diagrams

Function Diagram Of Electrical System For ME Engine Control PE07.61-U-2050FC
- ME 2.8

Function Diagram, Part 1:

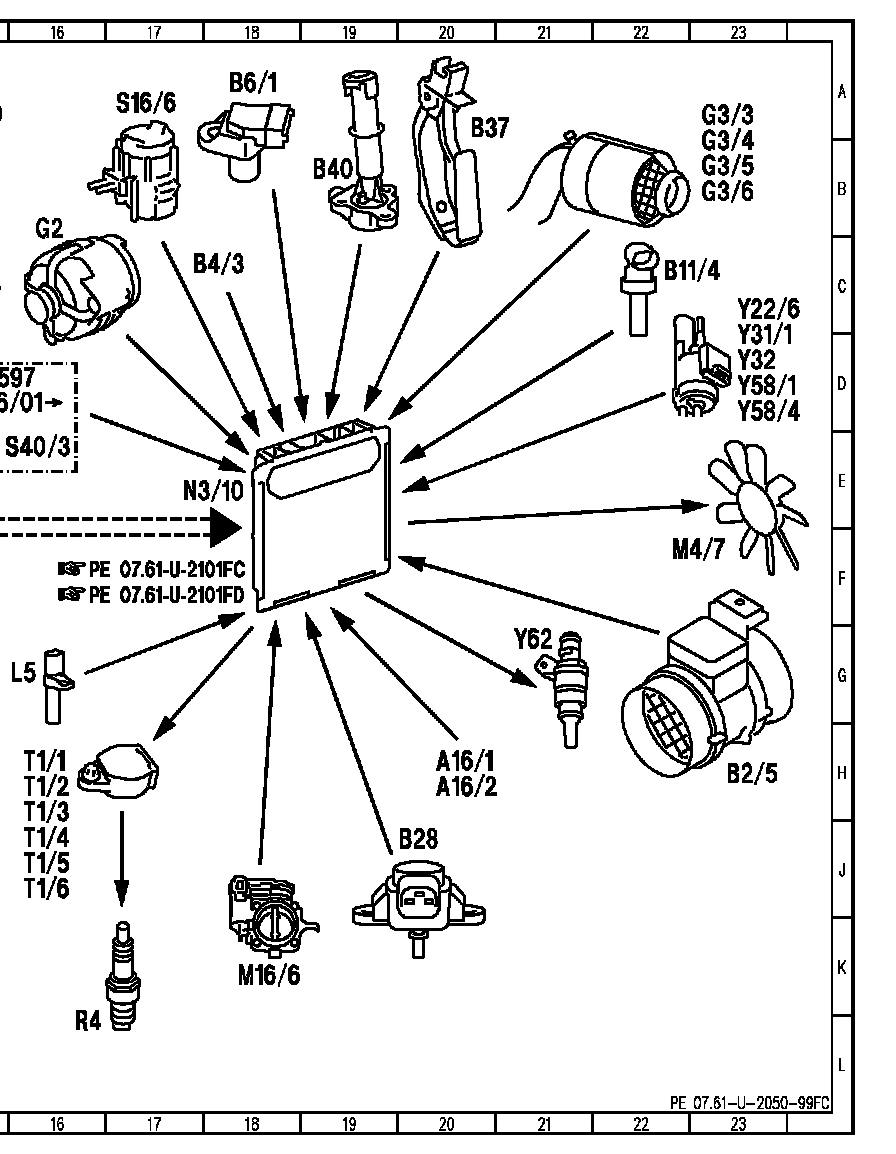

Function Diagram, Part 2:

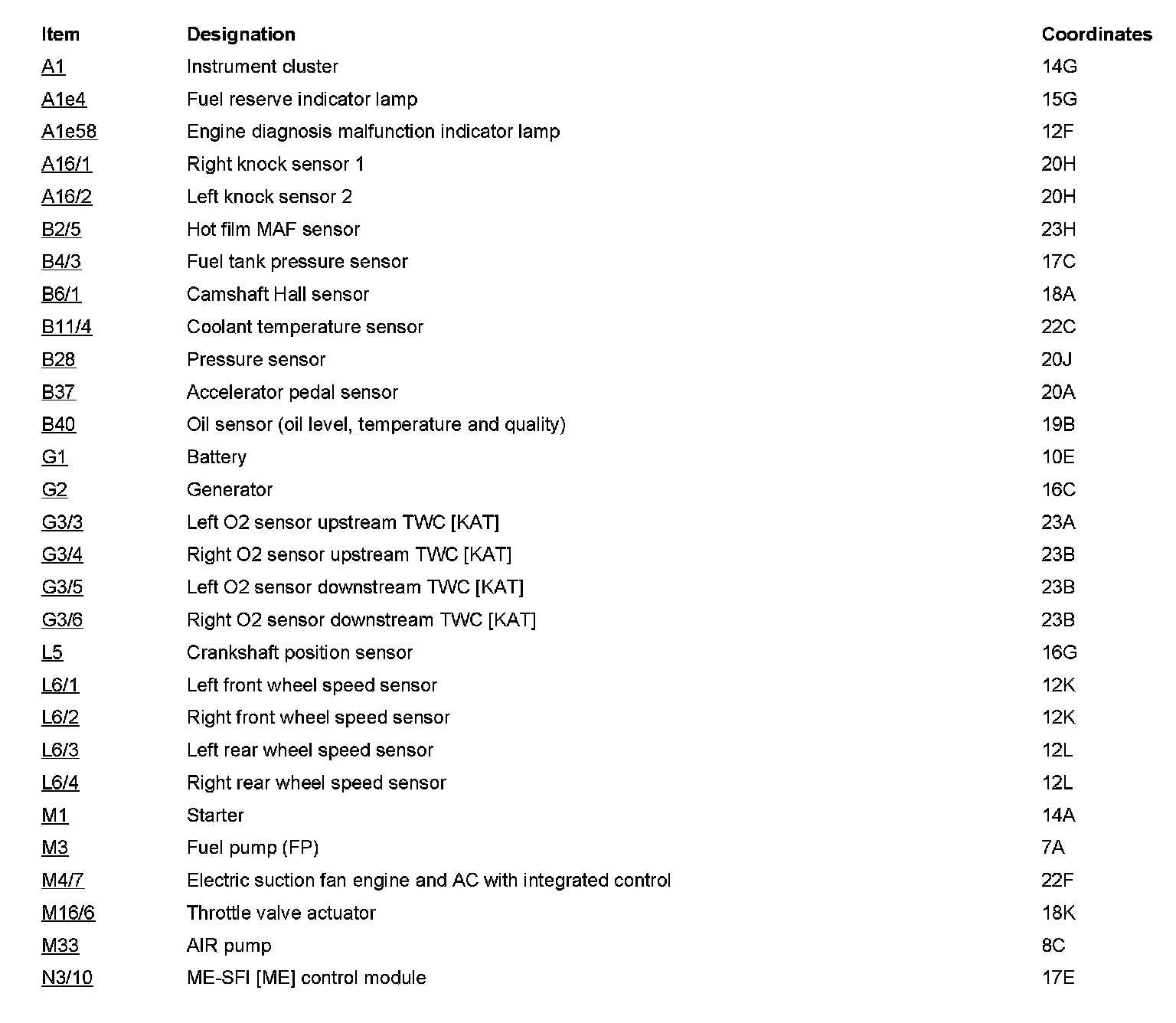

Component Description/Coordinates, A1 To N3/10:

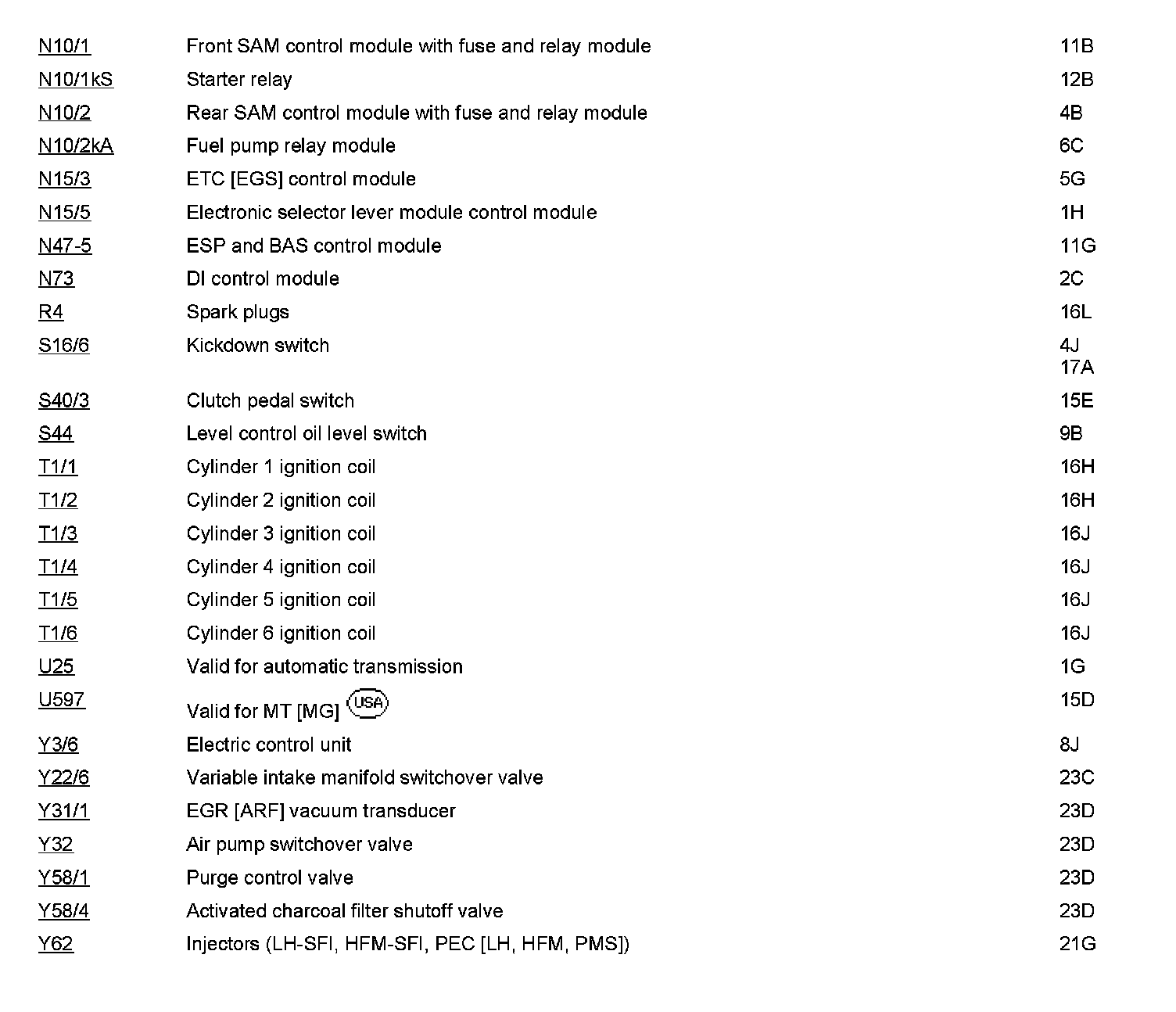

Component Description/Coordinates, N10/1 To Y62:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
