Function Diagram For Windshield Wiper PE82.30-U-2050FA



Function Diagram For Windshield Wiper PE82.30-U-2050FA

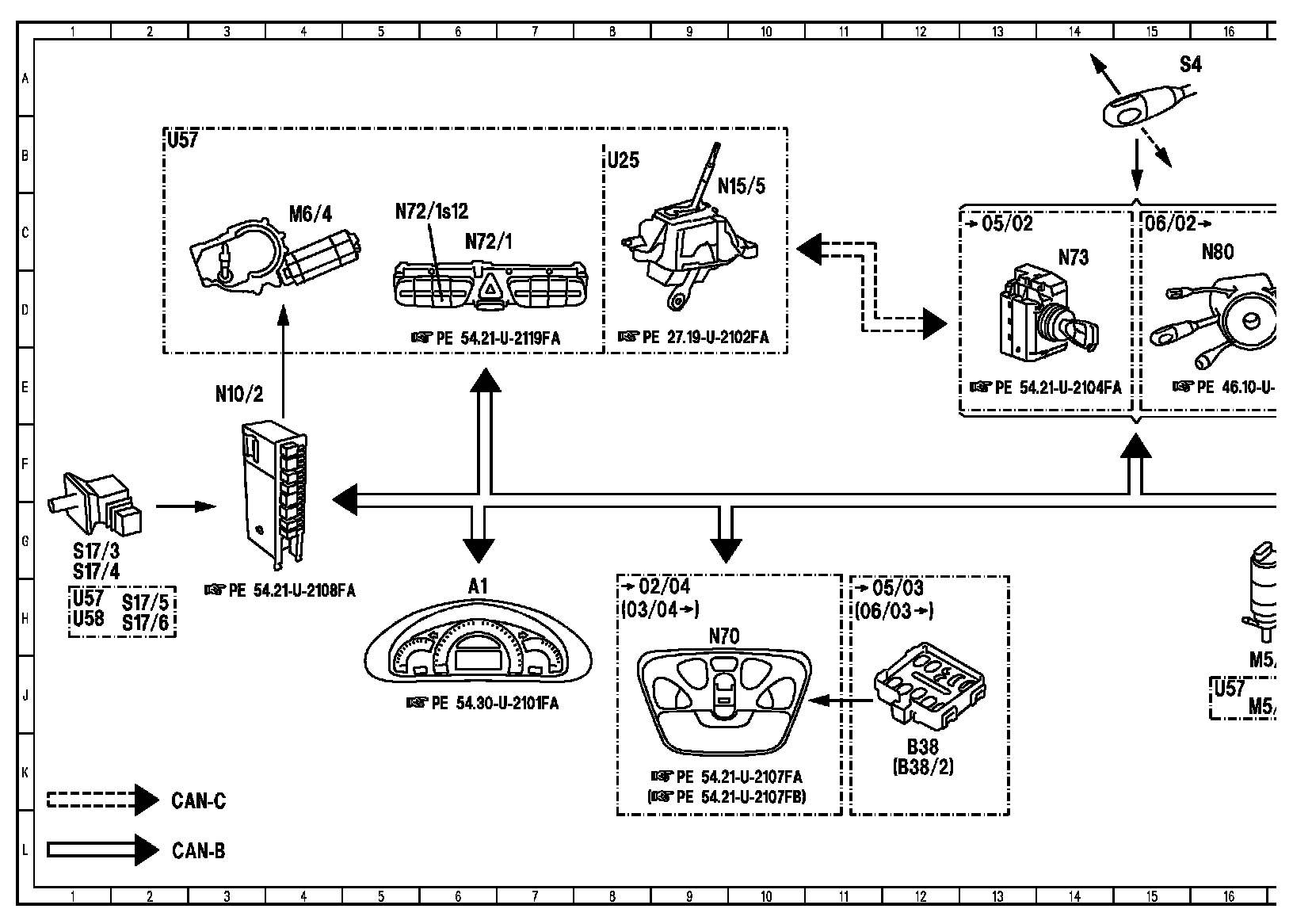

Function Diagram, Part 1:

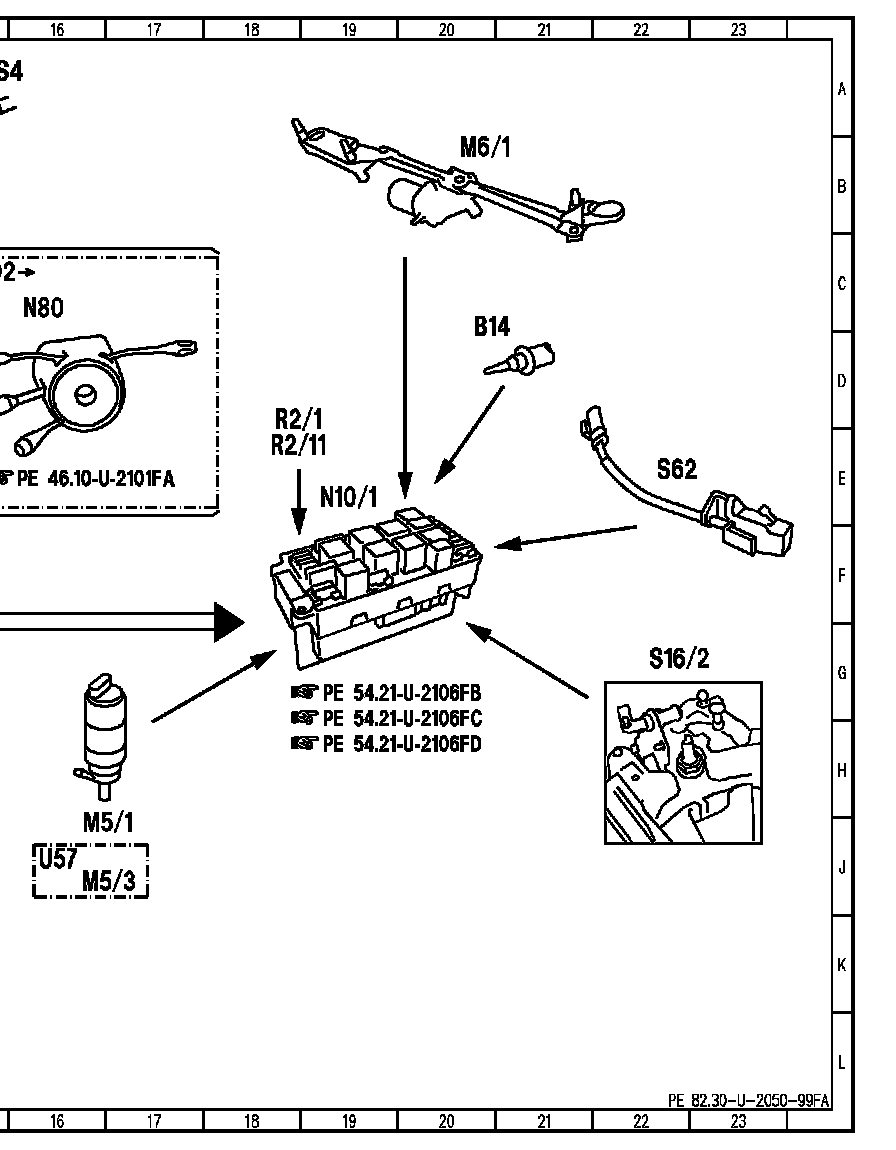

Function Diagram, Part 2:





Component Description/Coordinates, A1 To U58:






Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
