AR01.30-P-5800-09B Slackening Diagram For Cylinder Head Bolts



AR01.30-P-5800-09B Slackening diagram for cylinder head bolts

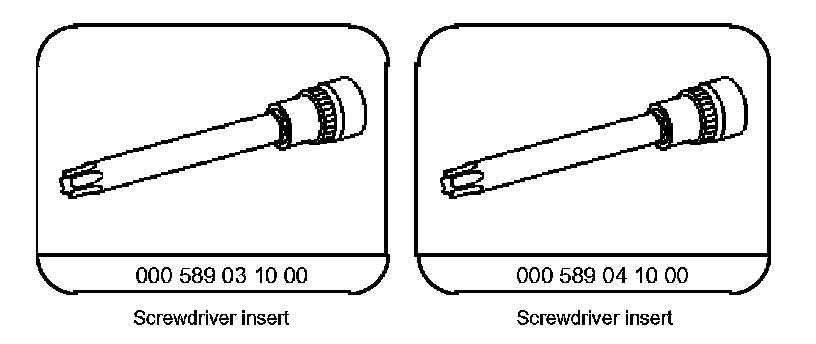

Special Tools:

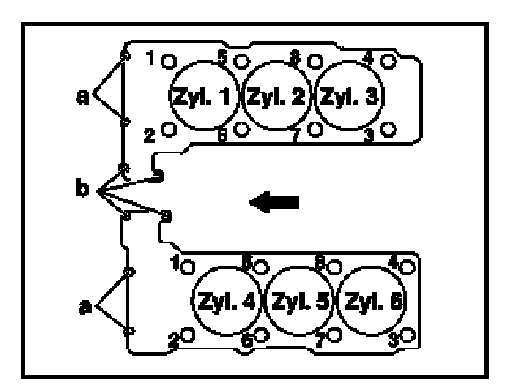

Engine 112

Engine 112:





1 Unscrew bolts (a, b).

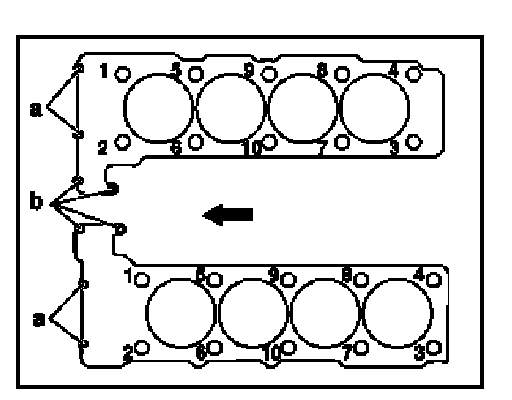

Engine 113

Engine 113:





2 Loosen cylinder head bolts (1 to 8 or 10) as per the numerical sequence and remove.
