AR68.10-P-1500P Remove/Install Cover Below Instrument Panel (Left)
AR68.10-P-1500P Remove/Install Cover Below Instrument Panel (Left)

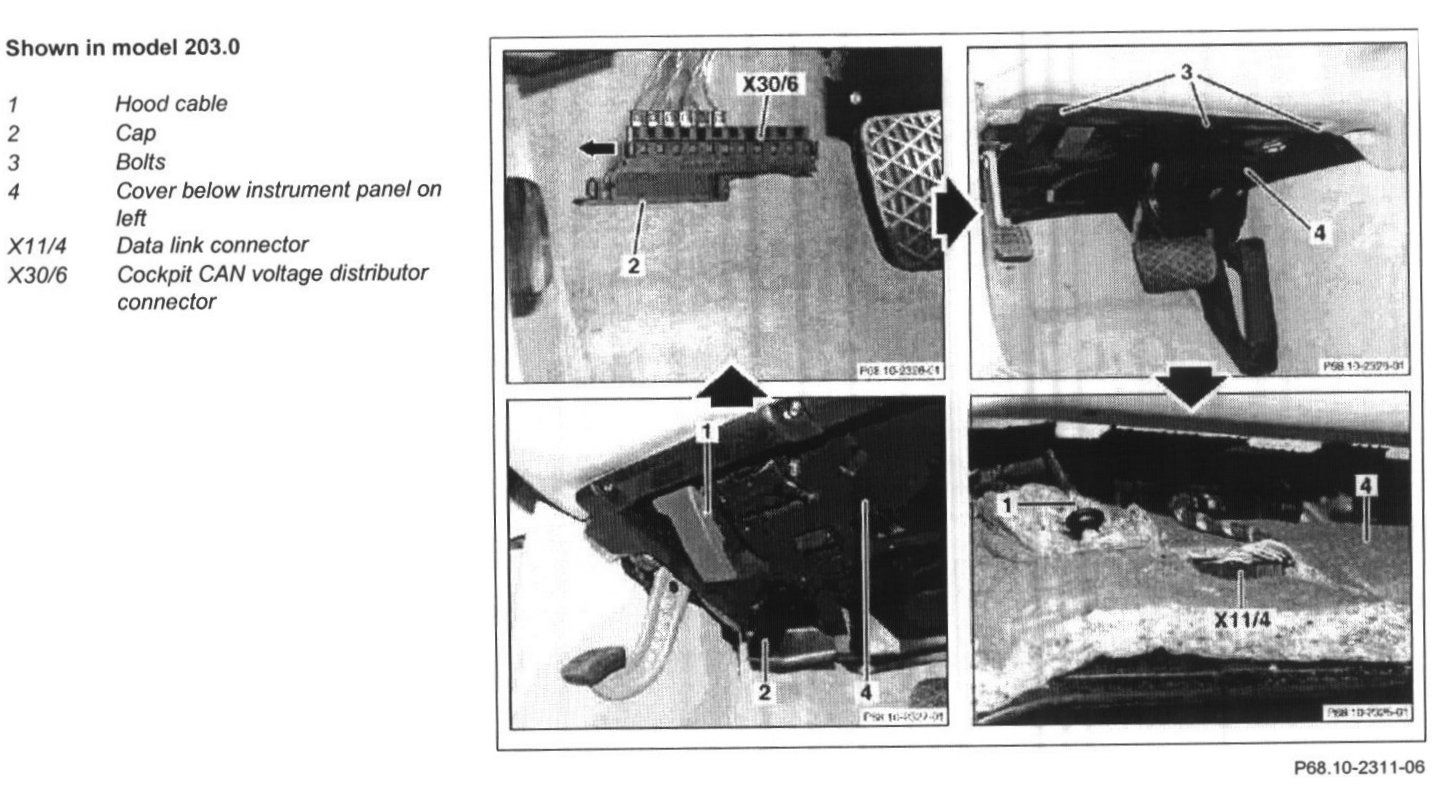

Shown In Model 203.0:
1 Unscrew bolts (3)
2 Fold down cover below instrument panel (4) on left
3 Unhook engine hood cable (1)
4 Unhook cockpit potential distributor connector (CAN) (X30/6) and unlock cap (2)
NOTE: Press cockpit CAN voltage distributor connector (X30/6) through cover below instrument panel on left (4)
5 Release data link connector (X11/4) and disconnect
6 Remove cover below instrument panel (4) on left
NOTE: Installation: Ensure that air guide is seated properly
7 Install in the reverse order
