GF82.10-P-3012B Auxiliary Lamp Control, Function

GF82.10-P-3012B Auxiliary Lamp Control, Function

MODEL 203 up to Model Year 8

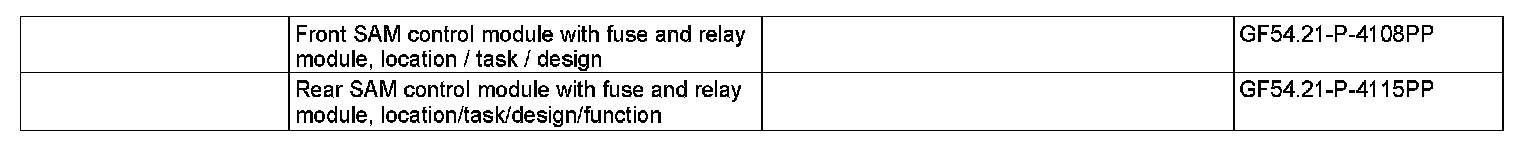

When the exterior lighting is switched on the exterior lights bulbs are constantly monitored for short-circuit and cable open-circuit by the electronics of the front SAM control module with fuse and relay module (N10/1) and rear SAM control module with fuse and relay module (N10/2).

For the stop lamp no failsafe light function is planned as this function is distributed over three lamps.

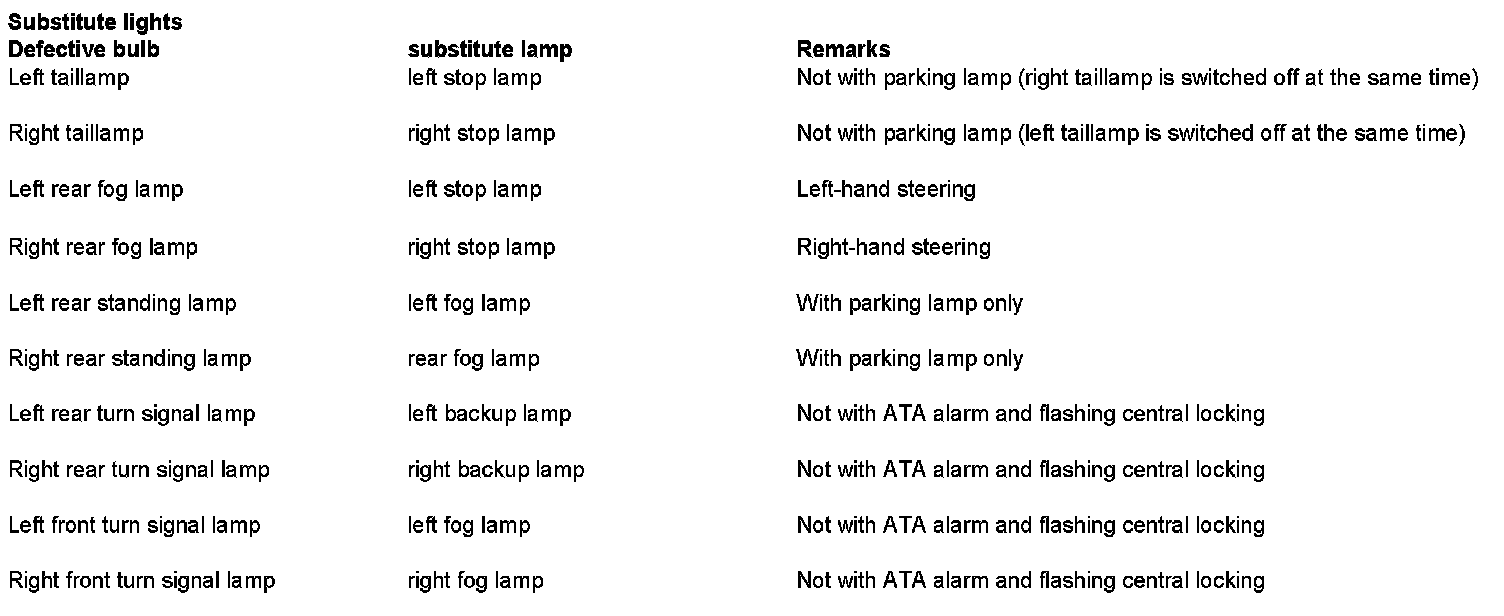

The scope of the substitute light operation is dependent on the country-specific version. Flashing functions have priority over continuous light.

In the event of failure of the low beam in the headlamp units, the side lights act as emergency lights.
