Fog/Driving Lamp: Service and Repair

AR82.10-P-5103P Remove/Install Fog Lamp

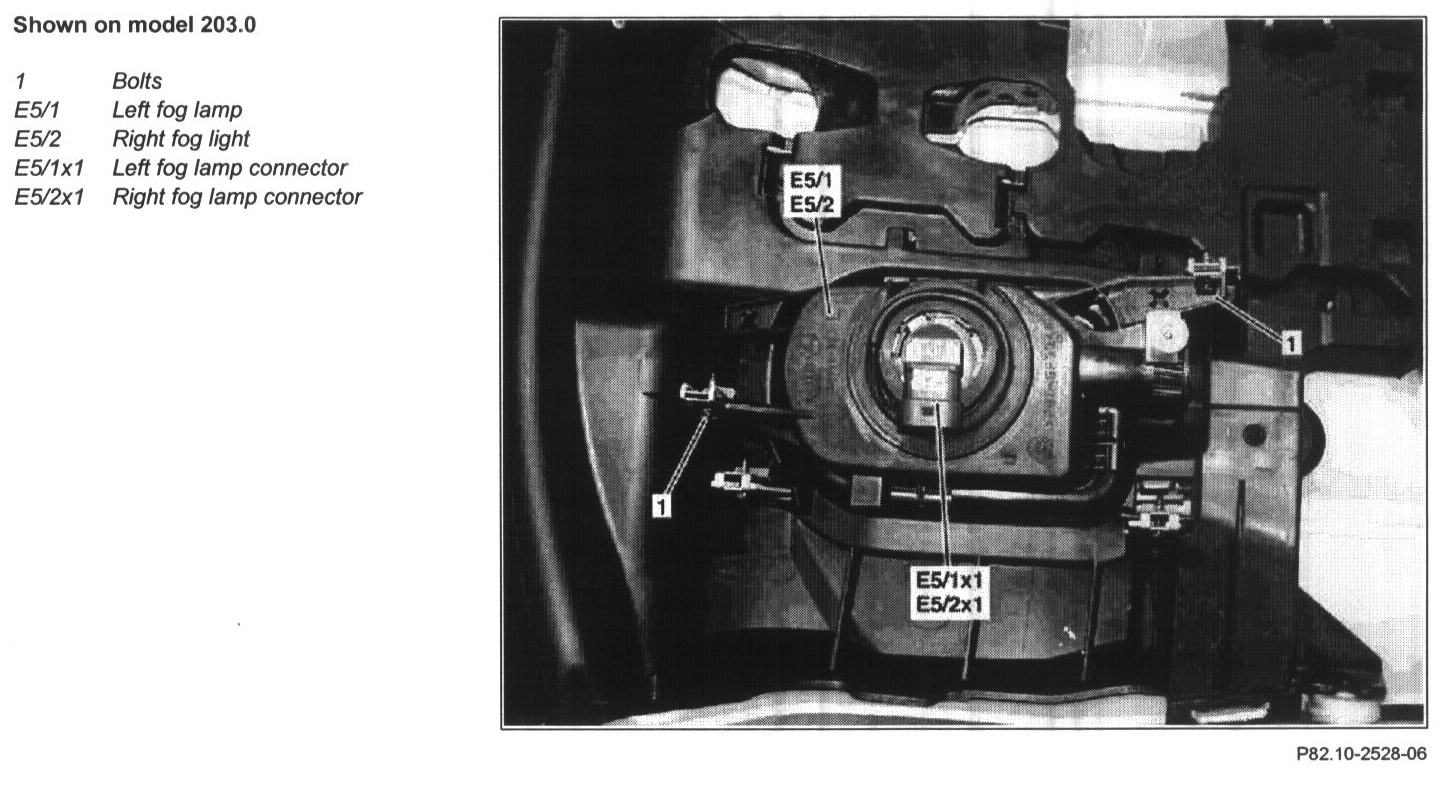

Shown On Model 203.0:

1 Remove cover between wheelhousing and bumper
- Partial section on left, on right.

2 Separate plug connection of left/right fog light (E5/1x1, E5/2x1)
3 Remove base and bulb
- Only left fog light (E5/2).

4.1 Remove bottom engine compartment panel
- Only left fog light (E5/2)

4.2 Remove bottom section of sound-proofing capsule
- Only left fog light (E5/2)

5 Detach splash water tank at bottom and push to the side
- Only left fog light (E5/2).

6 Unscrew screws (1) on left/right fog lamp (E5/1, E5/2)
7 Remove left/right fog lamp (E5/1, E5/2)

NOTE: Installation: Insert pilot stud in bumper.

8 Install in the reverse order
9 Check and correct headlamp adjustment
