AH15.10-P-1002-01WA General Notes on Contactless High Voltage Distribution

AH15.10-P-1002-01WA General notes on contactless high voltage distribution
- with ME-SFI fuel injection and ignition system

The ignition system can be tested at the primary side and secondary side. It is only possible to test ignition circuit a and ignition circuit b one after the other.

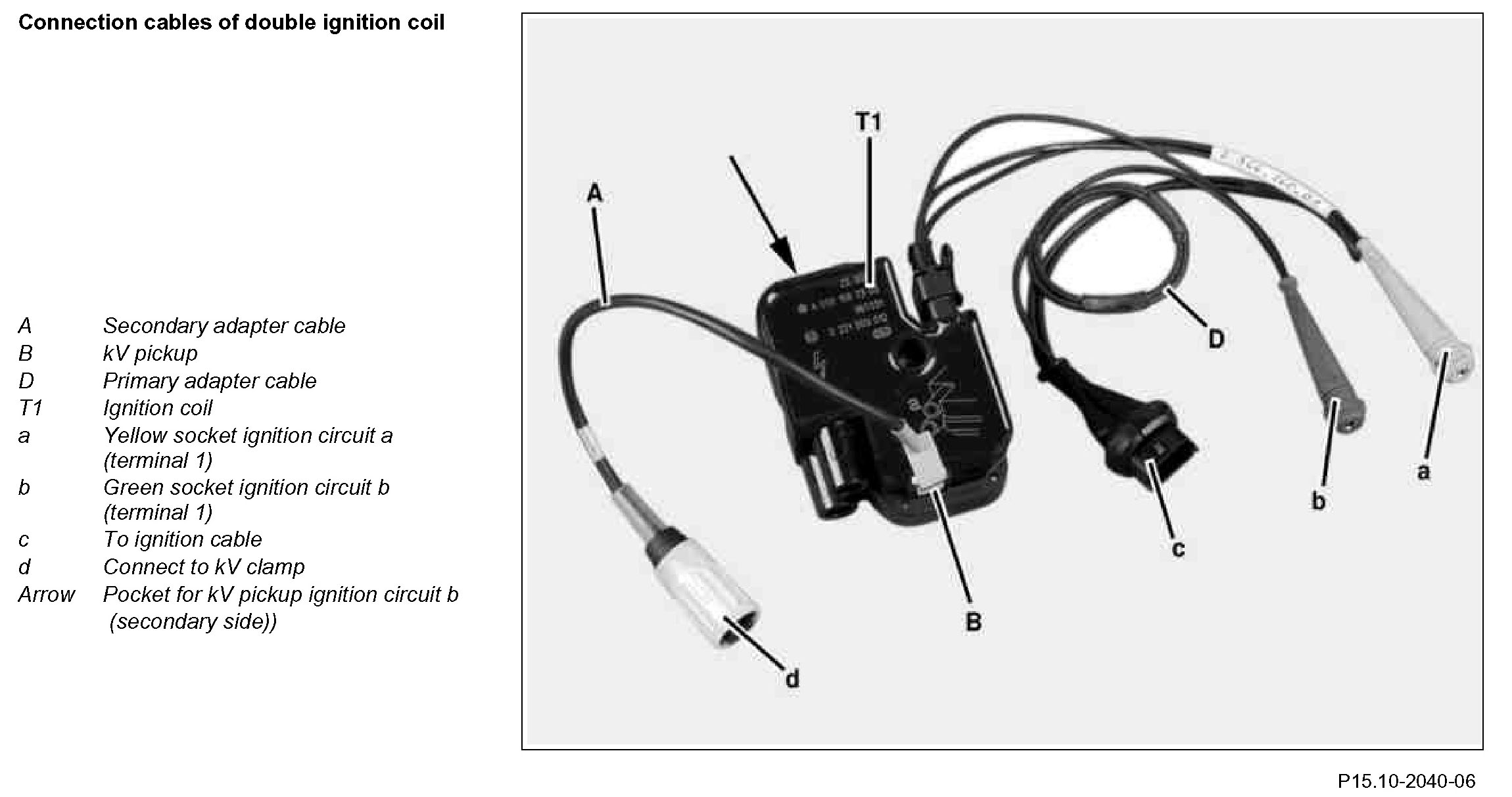

The ignition coils are fitted as standard with cast mounts for the secondary adapters (kV pickup C). The primary ignition voltage curve can be plotted with a primary adapter cable (D).

Component Identification:

Diagnosis with engine tester:

Connect green connector (terminal 1) of engine tester alternatively to the yellow socket or green socket for assessing an ignition circuit with the primary adapter cable.

Connect yellow connector (terminal 15) of engine tester to positive (tml. 30/tml. 15).
