AH05.20-P-2000-01AV Notes on Installing Camshaft Bearing Bridge

AH05.20-P-2000-01AV Notes on installing camshaft bearing bridge
- Engines 112, 113
- Engine 113.960 except CODE (479) cylinder shutoff

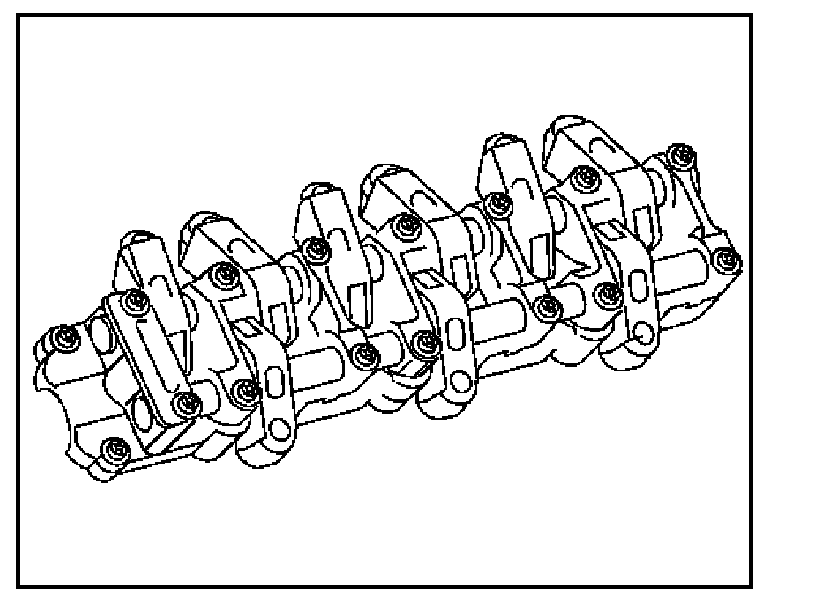

Shown on engine 112

Component Identification:

Pay attention to the following notes before installing the camshaft bearing bridges:
- Lubricate the camshaft bearings.
- Due to tolerance reasons, the camshafts must not be replaced individually.
- If the camshaft bearing bridge is damaged, replace the cylinder head complete with the camshaft bearing bridge.
- It not permitted to reuse the bolts M7x84; these must always be replaced.
- Pay attention to tightening torque, slackening diagram and tightening diagram of the bolts M7x84.
