AR35.20-P-0110P Remove/Install Camber Strut

AR35.20-P-0110P Remove/Install Camber Strut







DANGER:
- Lethal injuries are possible if vehicle slips off of lifting platform
- Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.

1 Remove wheel.

CAUTION:
- Installation: Replace self-locking nuts and bolts
- When tightening nuts and bolts, move rear axle shafts to approximately horizontal position

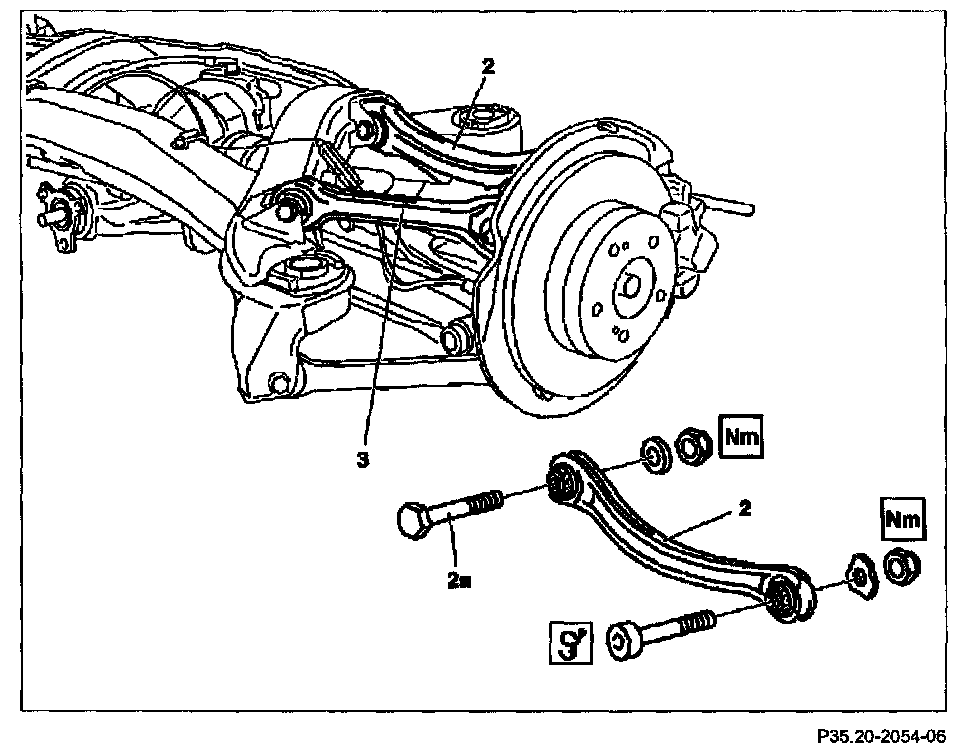

2 Unscrew bolt of tension arm (3) at wheel carrier
3 Unscrew bolt of camber strut (2a) at rear axle carrier

NOTE: Press down camber strut (2).

4 Unscrew camber strut (2) at wheel carrier
5 Install in the reverse order
