AR35.20-P-0130-02A Pull Bearing Inner Race Off Rear Axle Shaft Flange

AR35.20-P-0130-02A Pull bearing inner race off rear axle shaft flange

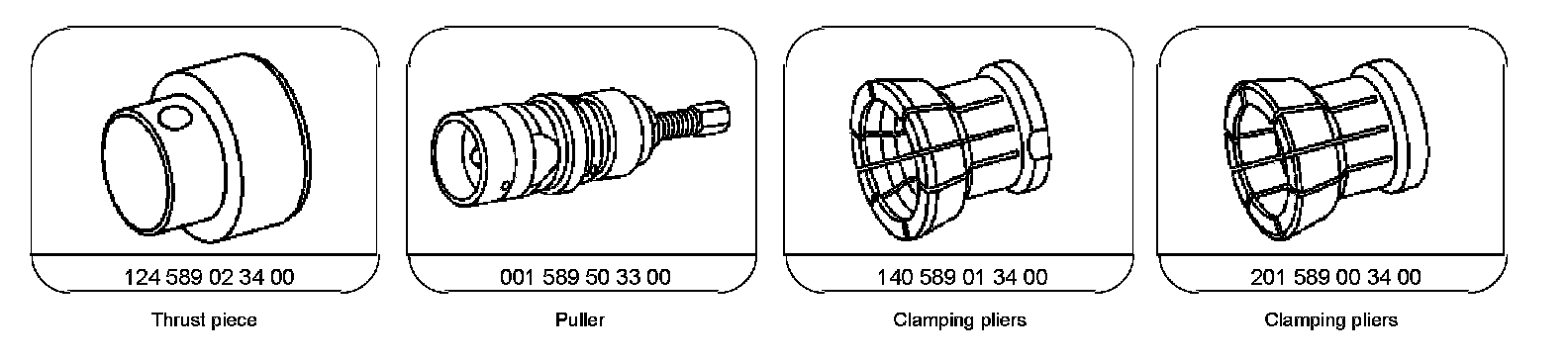

Special Tools:

Special tool assignment:

Models 129, 140, 163, 170, 202, 203, 208, 209, 210, 215, 220:
Thrust piece 124 589 02 34 00,

Puller 001 589 50 33 00

Model 140, 163, 215, 220:
Clamping pliers 140 589 01 34 00

Model 129, 170, 202, 203, 208, 209, 210:
Clamping pliers 201 589 00 34 00

Component Identification:

1 Screw clamping pliers onto puller and tighten.
2 Clamp rear axle shaft flange in vise with aluminum jaws.

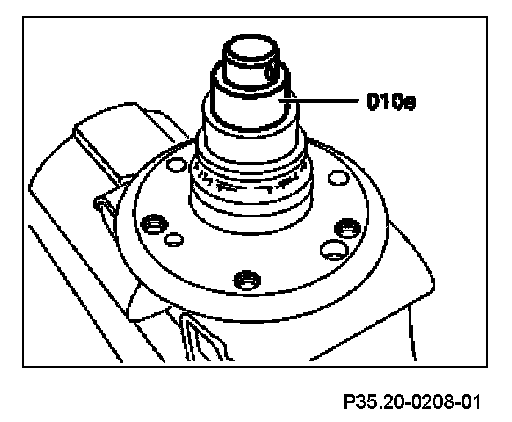

3 Fit thrust piece (010e) with large diameter on rear axle shaft flange.

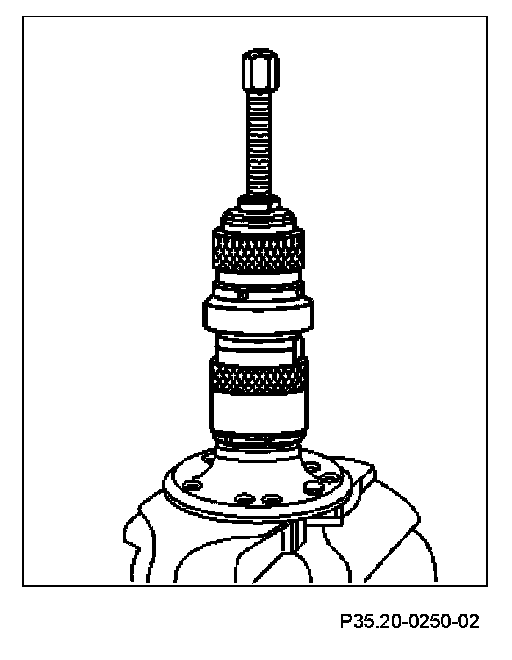

4 Slip fully assembled puller over bearing inner race.

At the upper grooves, clamp the clamping pliers over the conical sleeve of the puller.

5 Pull inner bearing race off rear axle shaft flange using puller and remove.
