Body - Front/Rear Windows Noisy When Operated
Date: October 29, 2008Order No.: P-B-72.00/33c
Supersedes: P-B-72.00/33b dated Feb. 14, 2006
Group: 72

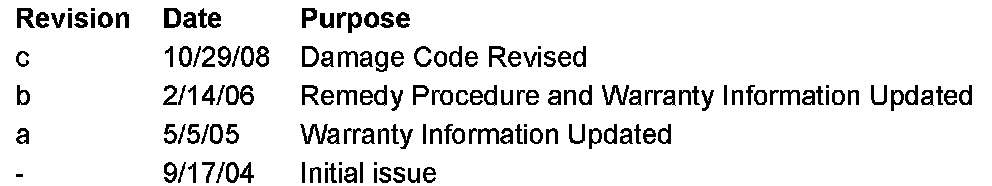

Revision History
SUBJECT:
Model 203.040/061/064/065/081/084/261/264/281/284/740/747
Up to Model Year 2003
Front or Rear Window Noisy When Opening or Closing

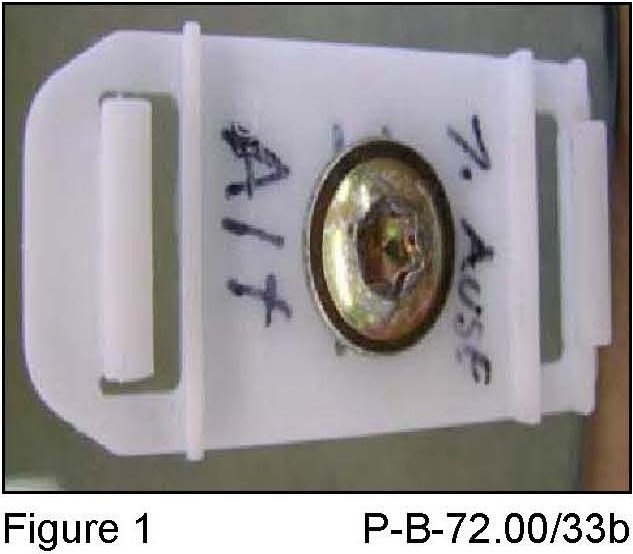

If you receive customer reports in the above model vehicles that either the front or rear window makes noise when opening or closing, the noise may be caused by the clip between the window lifter mechanism and the window. The plastic clip (Figure 1) can move under load and rub against the glass surface. The noise is generally a knock noise that occurs either when the window is nearly fully open or closed. Resolve by installing the current version of this clip (Figure 2 and 3) per the parts information below. Two clips are required for the front window and one clip for the rear window. Replace clip(s) as per the below procedure.
1. Remove interior door panel, refer to WIS documents AR72.10-P-1000P (front door) and AR72.12-P- 1040P (rear door).
2. Detach lower half of the weather shield/sound insulation and hold up with duct tape.
3. Lower window to the assembly position to access the window clips.
4. Use duct tape to support window in this position.
5. Remove one clip (Figure 1) at a time (front window only) and replace with redesigned clip (Figure 2 & 3).
NOTE:
The window must be touching and aligned with the vertical guide rail before tightening the retaining bolt.
6. Fasten weather shield/sound insulation back in place.
7. Reinstall interior door panel, refer to WIS documents AR72.10-P-1000P (front door) and AR72.12-P-1010P (rear door).
8. Check express open and close functions.

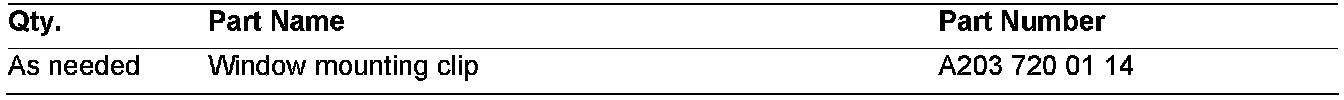

Parts Information
NOTE:
The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on October 29, 2008. Please refer to Netstar -> Star TekInfo -> Star Time for the most current labor time allowance.

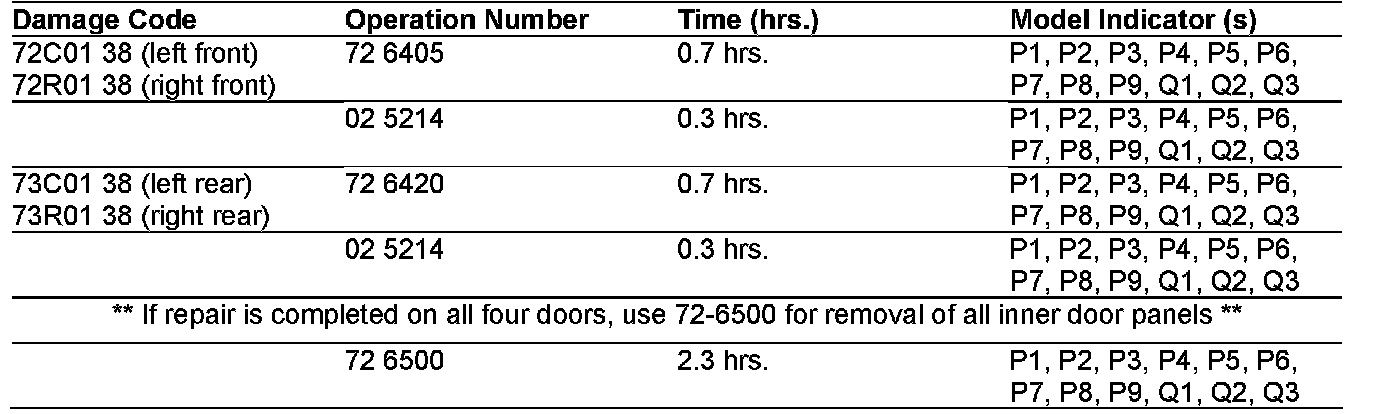

In Case of Warranty
Operation: Inner door panel - on one front door, R & R (72-6405)
Inner door panel - one rear door, R & R (72-6420)
Plastic clips for windows specify location...(inner door panel removed), replace (02-5214)
Inner door panels - on all doors, R & R (72-6500)
NOTE:
Operation 02-5214 is per door
