Restraints - SRS Lamp ON/Codes B1058 and B2DB0 Set

Date: February 27, 2009

Order No.: P-B-91.60/53a

Supersedes: P-B-91.60/53 dated July 19, 2002

Group: 91

Revision History

Revision Date Purpose

a 2/27/09 Applicable Models Updated (209 Added)

- 7/19/02 Initial issue

SUBJECT:
Model 203.061/064/065/081/084/261/264/281/284/740/747/764,
up to VIN A362053 and F278956
Model 209.365/375/376/465/475/476, up to VIN F005648

SRS Light on / Code B1058 and B2DB0

If you receive customer reports in the above model vehicles that the SRS indicator lamp is illuminated and code B1058 and B2DB0 are stored, replace the SRS control unit. The new version entered production as follows:

Model 203 as of A362054 and F278597
Model 209 as of F005649

Refer to EPCNet Online (Group 82) by VIN for applicable part number.

Note:

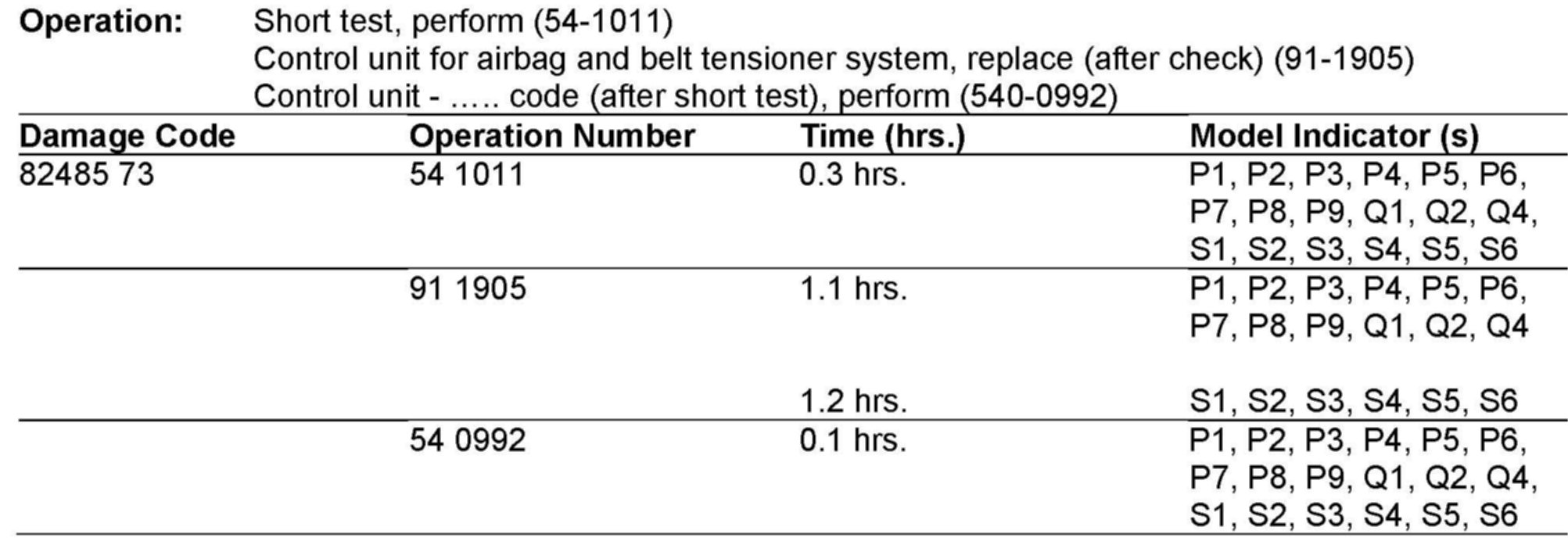

The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on February 27, 2009. Please refer to Netstar --> Star TekInfo --> Star Time for the most current labor time allowance.





In Case of Warranty, use the table above.
