GF27.10-P-0001-02P Automatic Transmission (AT), Mercedes-Benz Driver Information Service

GF27.10-P-0001-02P Automatic Transmission (AT), Mercedes-Benz Driver Information Service
- Transmission 722.6 in model 203 up to 31.05.03

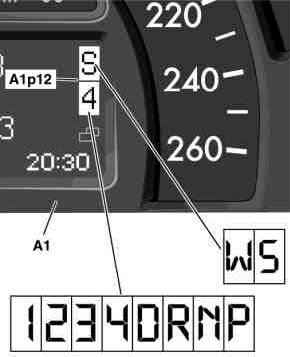

Gear indicator (A1p12) in instrument cluster (A1)

Informs the driver about which shift range "1", "2", "3", or "4" is currently selected or about the position of the selector lever "D", "R", "N" (neutral), or "P" (park).

Furthermore, the program, "S" (standard program) or "W" (winter program), selected at the transmission mode switch (S16/5) is also displayed.

A1 Instrument cluster
A1p12 Gear indicator
